LD72M Downlight

SKU: LD72M-C1

The LD72M Downlight is a miniature recessed LED fitting designed for discreet display, niche and general downlighting. Featuring a 10mm recessed light source, paint-matched bezel and replaceable NICHIA LED engine, it provides low-glare illumination with a refined finish. Available with IP40 or optional IP54 protection, it is suitable for luxury interiors, bathrooms and yacht applications.
£67.49 £67.49

Tax included and shipping calculated at checkout

You can't add more LD72M Downlight in Default Title to cart

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.
The LD72M Downlight is a miniature recessed LED fitting designed for discreet architectural lighting in displays, niches and general downlighting applications. Measuring 2mm smaller in diameter than the LD72 it replaces, it offers an even more refined appearance, while the LED is recessed by 10mm to help reduce glare. A painted bezel can be matched to the surrounding mounting surface, allowing the fitting to blend seamlessly into ceilings or joinery.

Using a replaceable NICHIA C1 LED engine, the LD72M Downlight is available in 1.2W at 350mA, 1.7W at 500mA or 2.4W at 700mA, with a typical CRI of 93 in warm white for high-quality colour rendering. Manufactured from an anodised aluminium body with a painted bezel, it is rated IP40 as standard, with an IP54 option available for bathrooms and spa areas. Its compact proportions and discreet finish make it a versatile solution for premium residential, hospitality, display and yacht lighting applications.

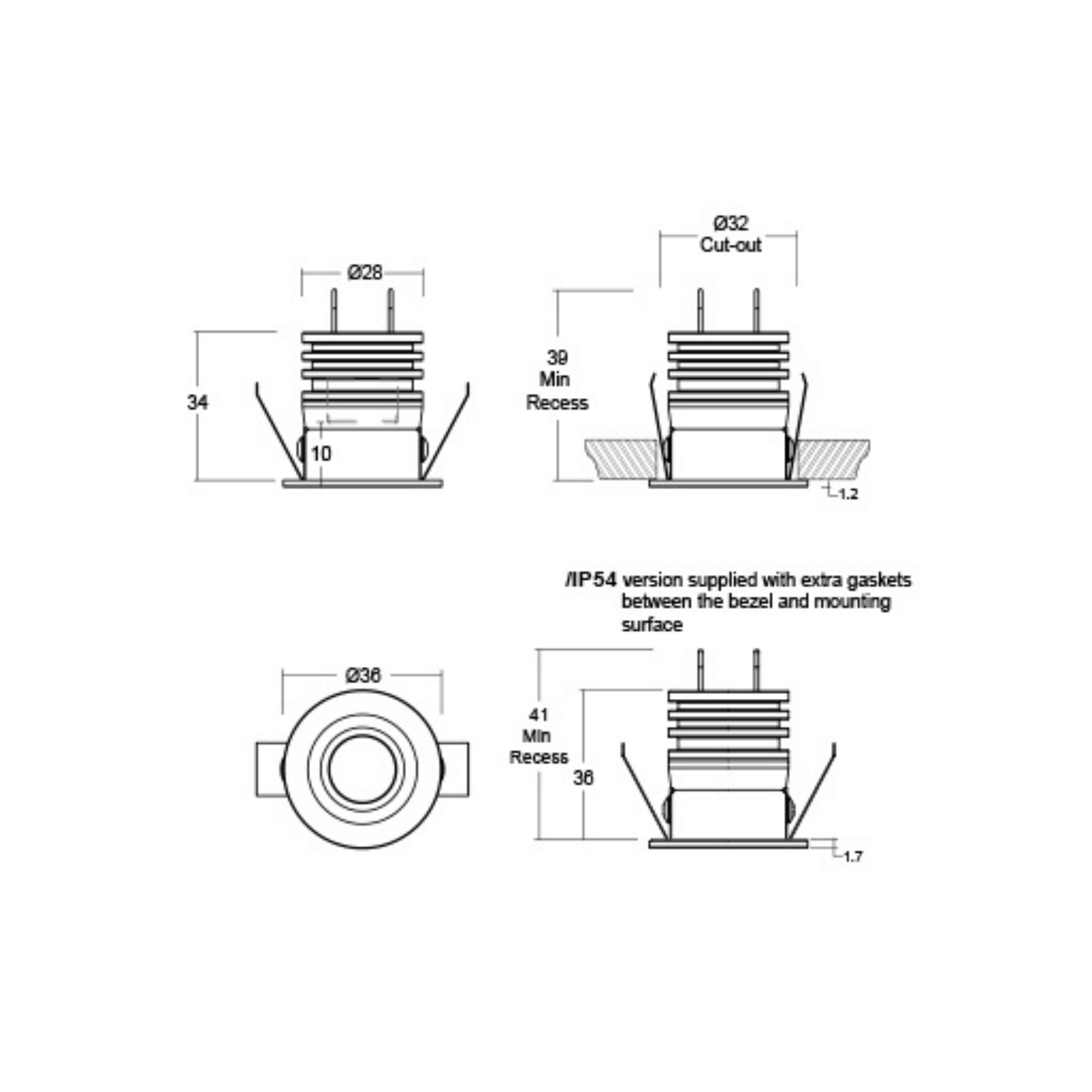

Overall Diameter: 36mm Ø

Depth: 44mm

Cut Out: 32mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W @ 350mA / 1.7W @ 500mA / 2.4W @ 700mA

Lumens: 109lm / 142lm / 189lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31°/ 48°

Driver Required: Yes - Remote mounted 350mA / 500mA / 700mA

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 3.0V / 3.2V / 3.4V

IP rating: IP40 / IP54

Fire rated: -
Download Spec Sheet
The LD72M Downlight is a miniature recessed LED fitting designed for discreet architectural lighting in displays, niches and general downlighting applications. Measuring 2mm smaller in diameter than the LD72 it replaces, it offers an even more refined appearance, while the LED is recessed by 10mm to help reduce glare. A painted bezel can be matched to the surrounding mounting surface, allowing the fitting to blend seamlessly into ceilings or joinery.

Using a replaceable NICHIA C1 LED engine, the LD72M Downlight is available in 1.2W at 350mA, 1.7W at 500mA or 2.4W at 700mA, with a typical CRI of 93 in warm white for high-quality colour rendering. Manufactured from an anodised aluminium body with a painted bezel, it is rated IP40 as standard, with an IP54 option available for bathrooms and spa areas. Its compact proportions and discreet finish make it a versatile solution for premium residential, hospitality, display and yacht lighting applications.

Overall Diameter: 36mm Ø

Depth: 44mm

Cut Out: 32mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 1.2W @ 350mA / 1.7W @ 500mA / 2.4W @ 700mA

Lumens: 109lm / 142lm / 189lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31°/ 48°

Driver Required: Yes - Remote mounted 350mA / 500mA / 700mA

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 3.0V / 3.2V / 3.4V

IP rating: IP40 / IP54

Fire rated: -
