Vendor: LightGraphix

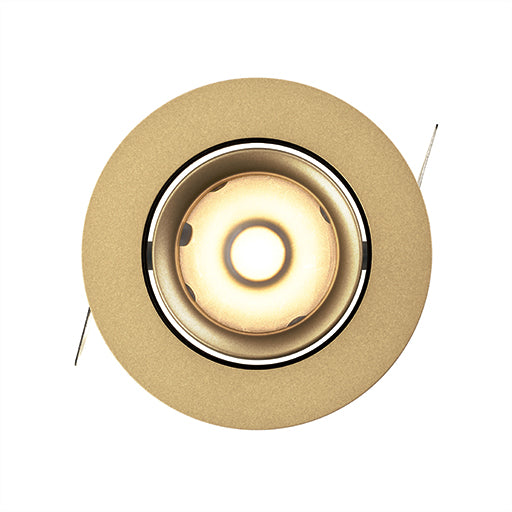

LD790 Downlight

SKU: LD790-

The LD790 Downlight is a compact adjustable LED fitting designed for ultra-low-glare architectural illumination. Featuring a 25mm deep recessed optic, up to 30° tilt and E3 or F1 LED engine options, it delivers precise lighting with excellent beam quality. With IP65 protection and a wide choice of finishes, it is ideal for interior, exterior and marine applications.

Regular price £127.63 Sale price £127.63

Tax included and shipping calculated at checkout

You can't add more LD790 Downlight in Default Title to cart

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

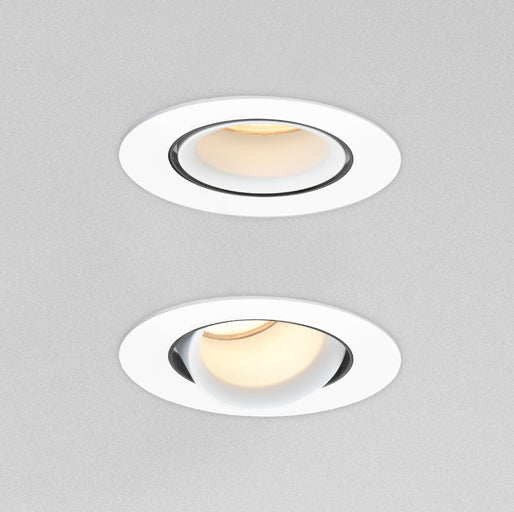

The LD790 Downlight is a compact, high-performance recessed LED fitting designed for general downlighting and the highlighting of walls and columns across interior, exterior and marine applications. Its 60mm aluminium bezel houses a deeply recessed optic set back by 25mm, helping to achieve ultra-low glare, while a black anti-glare ring maintains visual comfort when the fitting is tilted. The adjustable lens assembly offers up to 30° of tilt, giving excellent flexibility for precise aiming and feature lighting.

Available with E3 or F1 LED engines, the LD790 Downlight offers colour temperatures from 2200K to 5000K and a choice of beam angles, including a precise 12° narrow spot for accent lighting and broader options for general illumination. Delivering up to approximately 433 lumens at 3000K, it combines strong output with a compact form and is rated IP65 for demanding environments. A wide range of bezel finishes is available, including standard RAL colours and bespoke options, making the LD790 a versatile solution for premium residential, hospitality and marine lighting schemes.

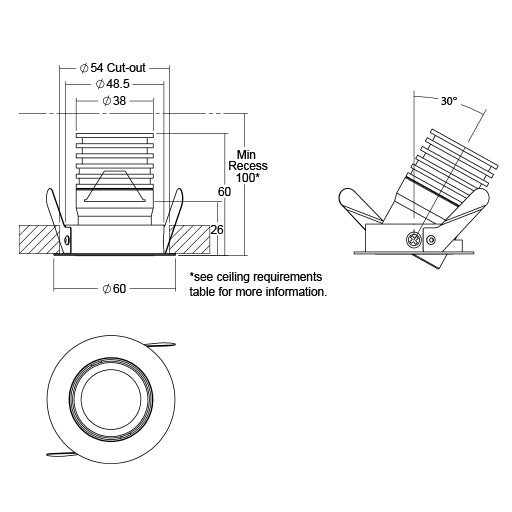

Overall Diameter: 60mm Ø

Depth: 60mm

Cut Out: 54mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 4.2W @ 350mA / 6W @ 500mA

Lumens: 309lm / 414lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 26°

Driver Required: Yes - Remote mounted

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 14V

IP rating: IP65

Fire rated: -

The LD790 Downlight is a compact, high-performance recessed LED fitting designed for general downlighting and the highlighting of walls and columns across interior, exterior and marine applications. Its 60mm aluminium bezel houses a deeply recessed optic set back by 25mm, helping to achieve ultra-low glare, while a black anti-glare ring maintains visual comfort when the fitting is tilted. The adjustable lens assembly offers up to 30° of tilt, giving excellent flexibility for precise aiming and feature lighting.

Available with E3 or F1 LED engines, the LD790 Downlight offers colour temperatures from 2200K to 5000K and a choice of beam angles, including a precise 12° narrow spot for accent lighting and broader options for general illumination. Delivering up to approximately 433 lumens at 3000K, it combines strong output with a compact form and is rated IP65 for demanding environments. A wide range of bezel finishes is available, including standard RAL colours and bespoke options, making the LD790 a versatile solution for premium residential, hospitality and marine lighting schemes.

Overall Diameter: 60mm Ø

Depth: 60mm

Cut Out: 54mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 4.2W @ 350mA / 6W @ 500mA

Lumens: 309lm / 414lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 26°

Driver Required: Yes - Remote mounted

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 14V

IP rating: IP65

Fire rated: -
