Vendor: LightGraphix

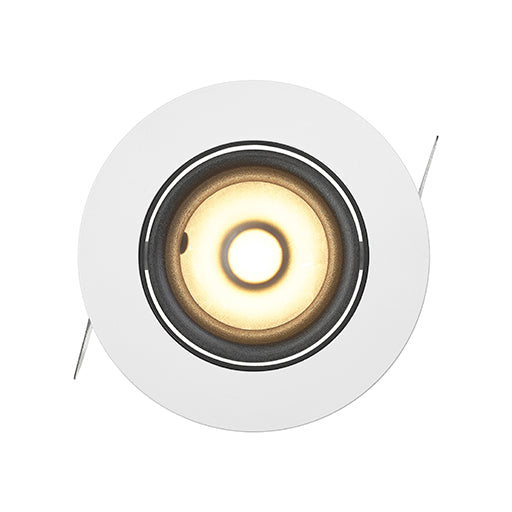

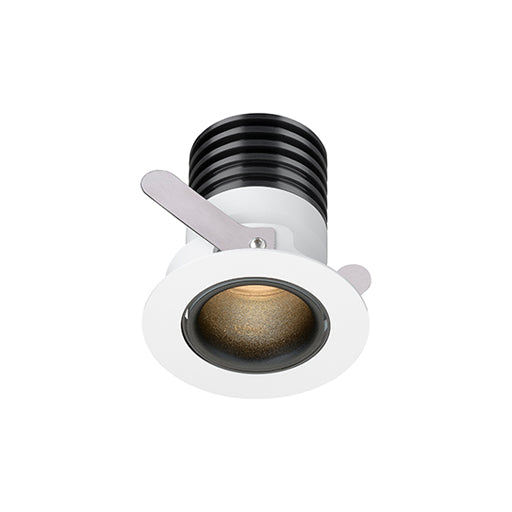

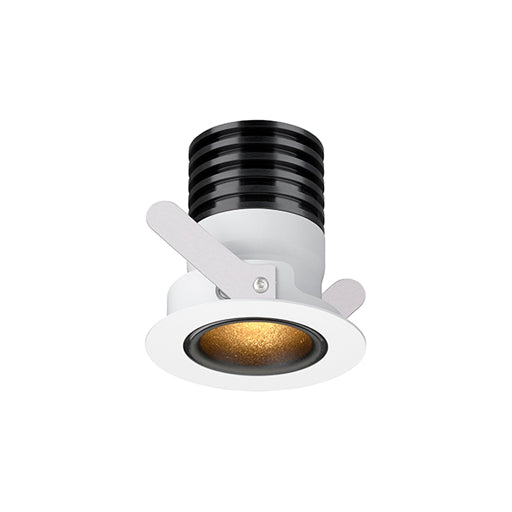

LD792 Downlight

SKU: LD792-

The LD792 Downlight is a compact adjustable LED fitting designed for ultra-low-glare architectural lighting. Featuring a 26mm deep recessed optic, up to 30° tilt and E3 or F1 LED engine options, it delivers precise illumination with excellent beam quality. With IP65 protection and a wide choice of finishes and control options, it is ideal for premium interior, exterior and marine applications.

Regular price £134.40 Sale price £134.40

Tax included and shipping calculated at checkout

You can't add more LD792 Downlight in Default Title to cart

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

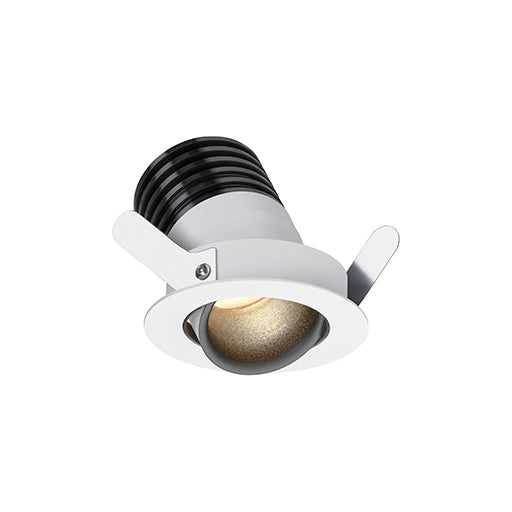

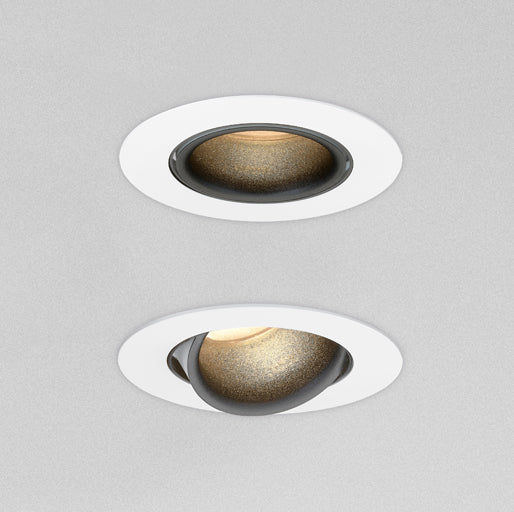

The LD792 Downlight is a compact, high-performance recessed LED fitting designed for general downlighting, wall washing and the highlighting of columns across interior, exterior and marine applications. Its optic is deeply recessed by 26mm within a matt black baffle to provide ultra-low glare, while a black anti-glare ring helps maintain visual comfort when the fitting is tilted. The adjustable lens assembly offers up to 30° of tilt, giving excellent flexibility when aiming the beam, and a single optic produces a clean, consistent distribution without multiple shadows.

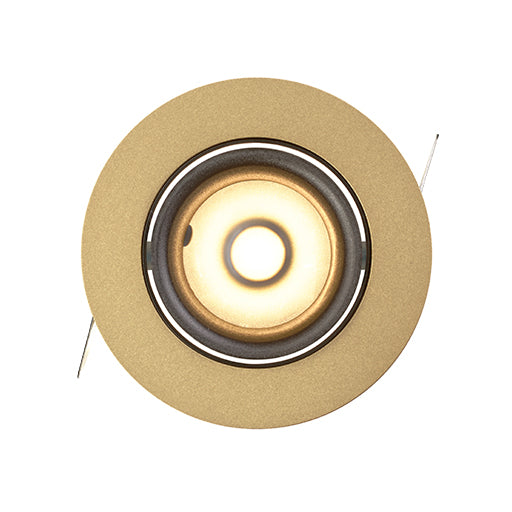

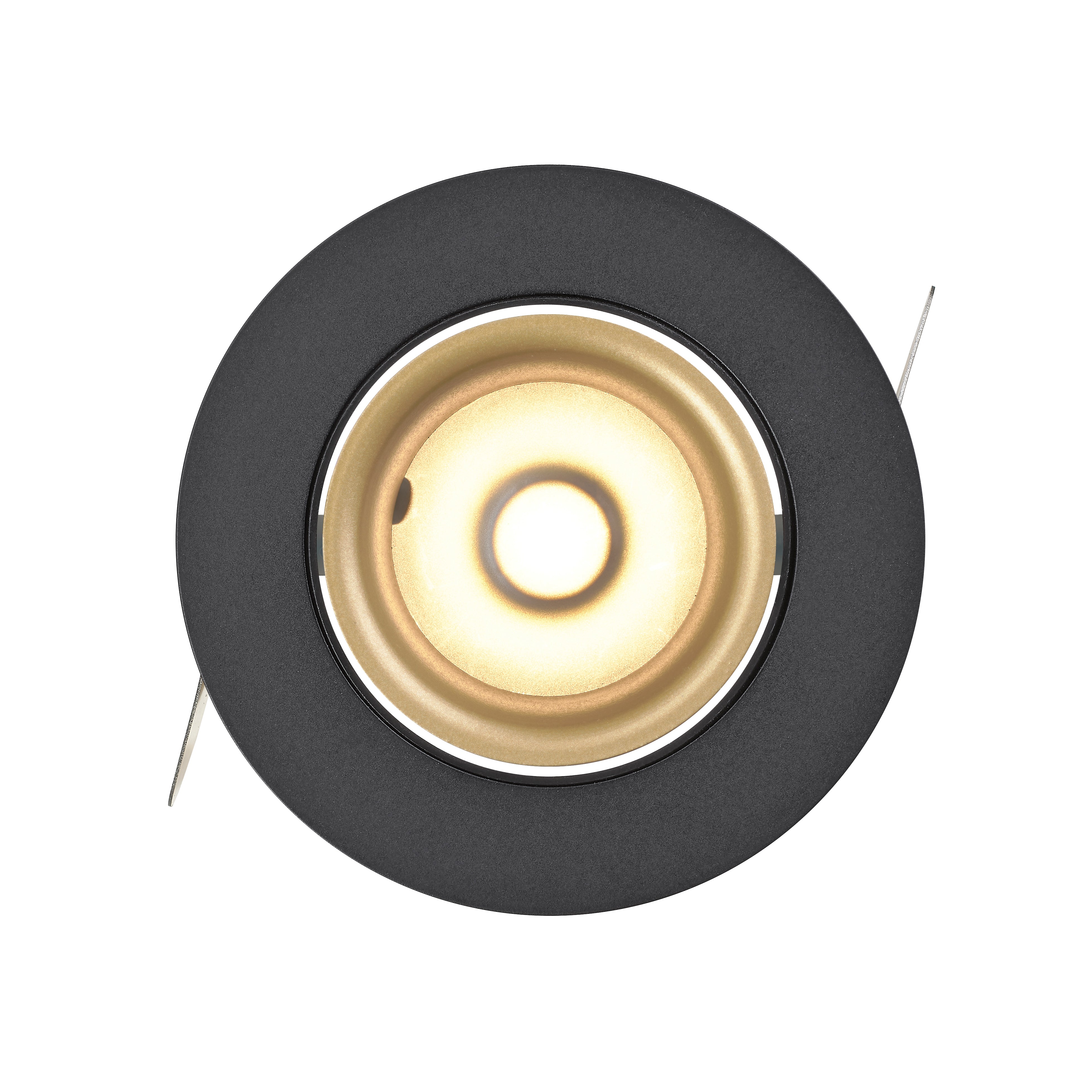

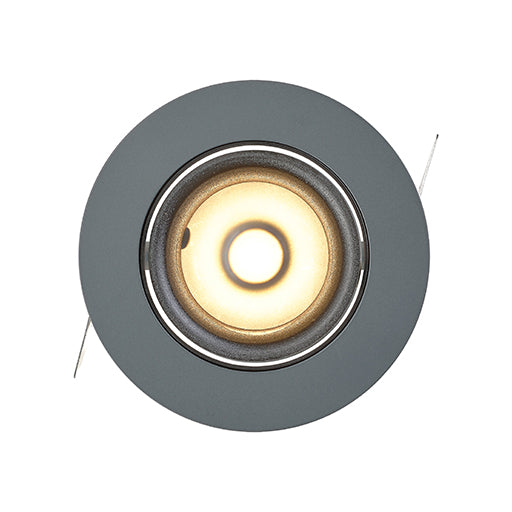

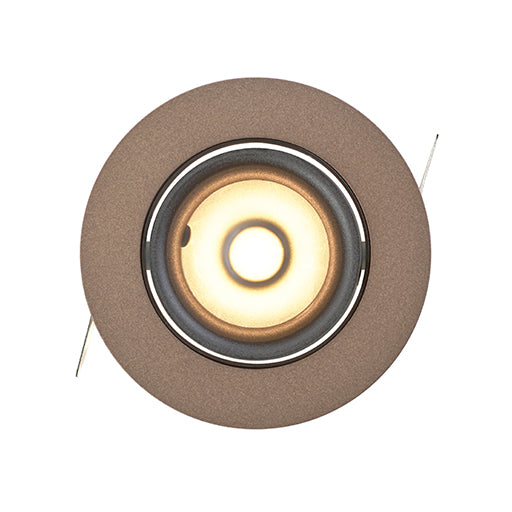

Available with E3 or F1 LED engines, the LD792 Downlight offers colour temperatures from 2200K to 5000K and a range of beam angles, including a precise 12° narrow spot for accent lighting and broader options for general illumination. Delivering up to around 414 lumens in 3000K, it combines strong output with a compact form and carries an IP65 rating for demanding environments. The aluminium bezel and inner baffle can be specified in a wide range of finishes, including standard RAL colours and bespoke options, while switched, 0-10V, Casambi, DMX, DALI and mains dimmable drivers provide extensive control flexibility.

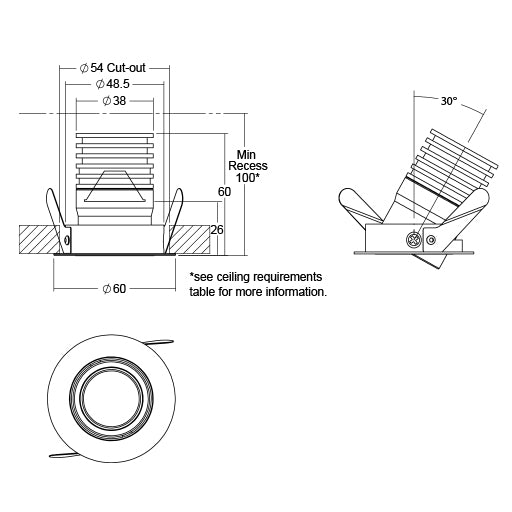

Overall Diameter: 60mm Ø

Depth: 60mm

Cut Out: 54mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 4.2W @ 350mA / 6W @ 500mA

Lumens: 309lm / 414lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 26°

Driver Required: Yes - Remote mounted 350mA / 500mA / 700mA

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 14V

IP rating: IP65

Fire rated: -

The LD792 Downlight is a compact, high-performance recessed LED fitting designed for general downlighting, wall washing and the highlighting of columns across interior, exterior and marine applications. Its optic is deeply recessed by 26mm within a matt black baffle to provide ultra-low glare, while a black anti-glare ring helps maintain visual comfort when the fitting is tilted. The adjustable lens assembly offers up to 30° of tilt, giving excellent flexibility when aiming the beam, and a single optic produces a clean, consistent distribution without multiple shadows.

Available with E3 or F1 LED engines, the LD792 Downlight offers colour temperatures from 2200K to 5000K and a range of beam angles, including a precise 12° narrow spot for accent lighting and broader options for general illumination. Delivering up to around 414 lumens in 3000K, it combines strong output with a compact form and carries an IP65 rating for demanding environments. The aluminium bezel and inner baffle can be specified in a wide range of finishes, including standard RAL colours and bespoke options, while switched, 0-10V, Casambi, DMX, DALI and mains dimmable drivers provide extensive control flexibility.

Overall Diameter: 60mm Ø

Depth: 60mm

Cut Out: 54mm Ø

Tilt Angle (°): -

Rotation Angle (°): -

Light Source: LED

Wattage: 4.2W @ 350mA / 6W @ 500mA

Lumens: 309lm / 414lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 26°

Driver Required: Yes - Remote mounted 350mA / 500mA / 700mA

Switched: -

Dimmable: Yes

Dimming Type: Driver Dependent

Voltage: 14V

IP rating: IP65

Fire rated: -
