LD82 Spotlight

Name: LD82 Spotlight
Brand: LightGraphix
SKU: LD82-C1
Price: 85.75 GBP

The LD82 Spotlight is a miniature adjustable LED fitting designed for precise display and showcase lighting. Featuring a replaceable NICHIA LED engine, typical CRI 93 performance and four beam angle options, it delivers accurate, controlled illumination. A custom stem and optional anti-glare cowl provide added flexibility for premium interior applications.

£85.75

Tax included and shipping calculated at checkout

You can't add more LD82 Spotlight in Default Title to cart

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

General Information

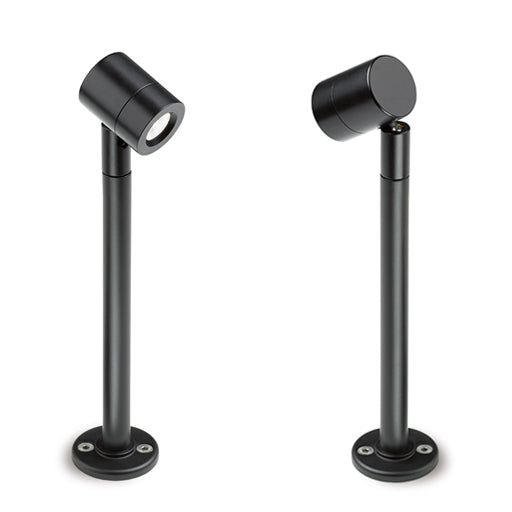

The LD82 Spotlight is a miniature high-power LED fitting designed for precise display, showcase and feature lighting. Mounted on a matching knuckle joint, it can be easily adjusted and focused to suit the application, while a custom-made stem allows the fitting height and position to be tailored to the installation. High-efficiency optics developed specifically for LightGraphix provide excellent beam quality, with four beam angle options available for controlled accent lighting.

Using a replaceable NICHIA C1 LED engine, the LD82 Spotlight is available in 1.2W at 350mA, 1.7W at 500mA or 2.4W at 700mA, with a typical CRI of 93 in warm white for accurate colour rendering. Manufactured from painted anodised aluminium and rated IP40, it is particularly well suited to retail displays, shelving and interior feature lighting where compact dimensions and high-quality illumination are important. An optional anti-glare cowl is also available for improved visual comfort.

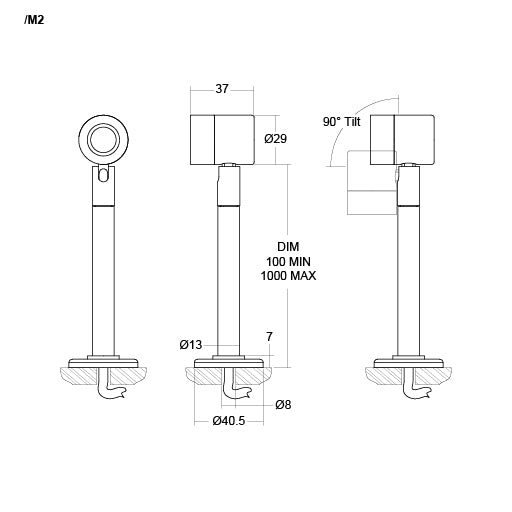

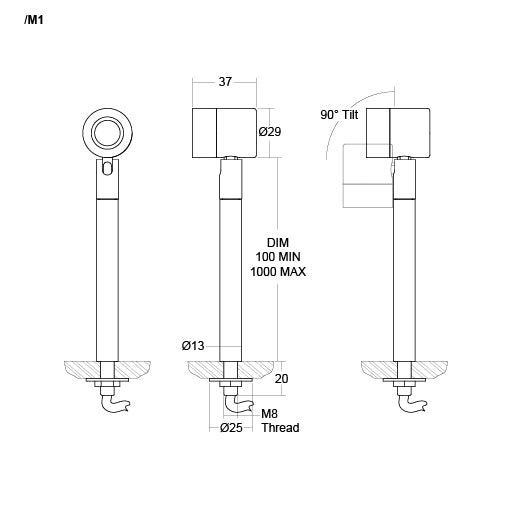

Height: -

Width: 29mm Ø

Depth: 50mm

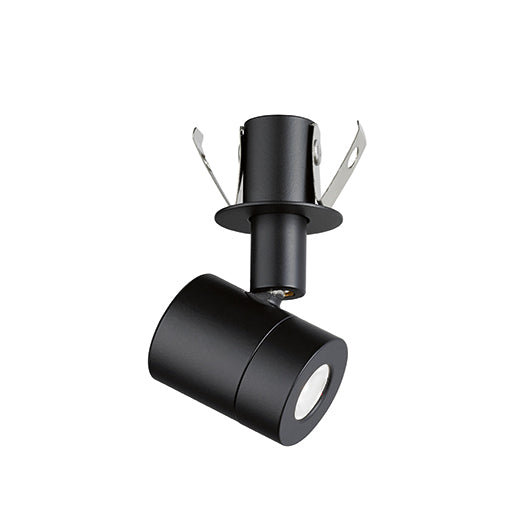

Cut Out: 23mm Ø

Tilt Angle (°): 134°

Rotation Angle (°): -

Light Source: LED

Wattage: 1.1W @350mA / 1.6W @500mA / 2.3W @700mA

Lumens: 108lm / 141lm / 188lm

Kelvin: 2200K / 2700K / 3000K

CRI: 93+

Beam Degree: 12° / 31° / 48°
