LD96 Wall Light
Usually ships within 4 weeks
Built To Order Item, we are unable to accept returns unless they are found to be faulty.

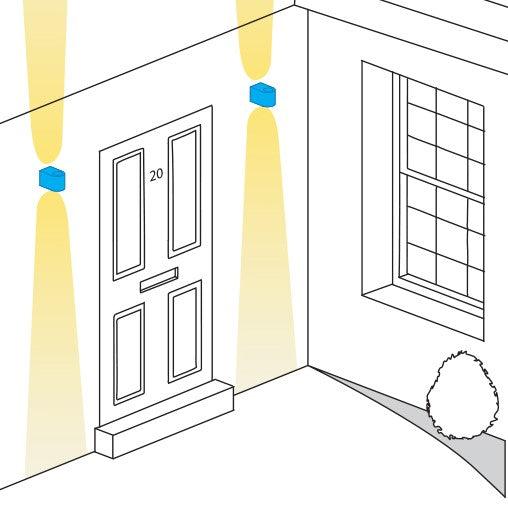

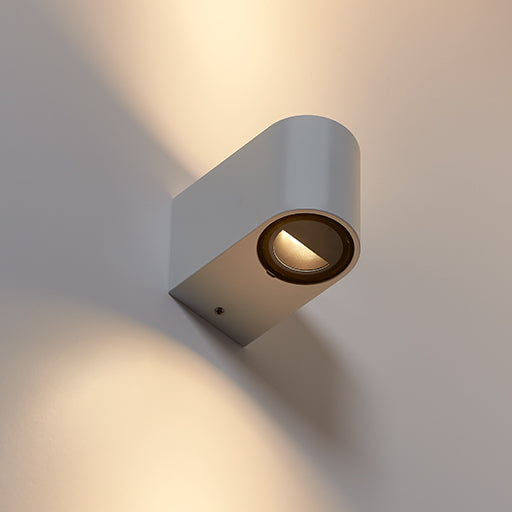

The LD96 Wall Light is a miniature up-and-down wall washer designed for discreet architectural illumination where space is limited. Developed as a compact alternative to the LD10236, it features a minimal form that integrates easily into refined interiors, exterior façades and yacht applications. A choice of beam angles and LED colours allows the lighting effect to be tailored to the project, with the added flexibility of specifying different optics on each side of the fitting for varied upward and downward distributions.

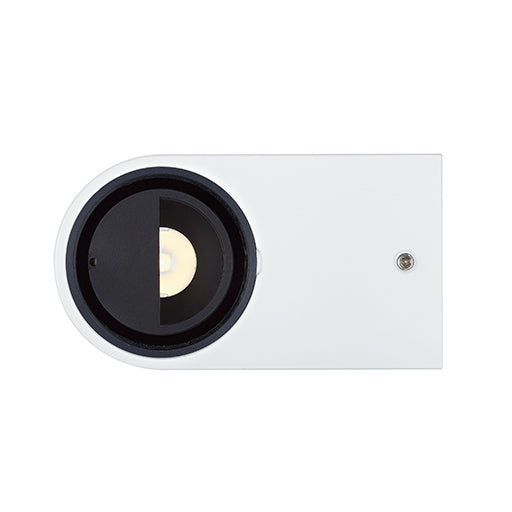

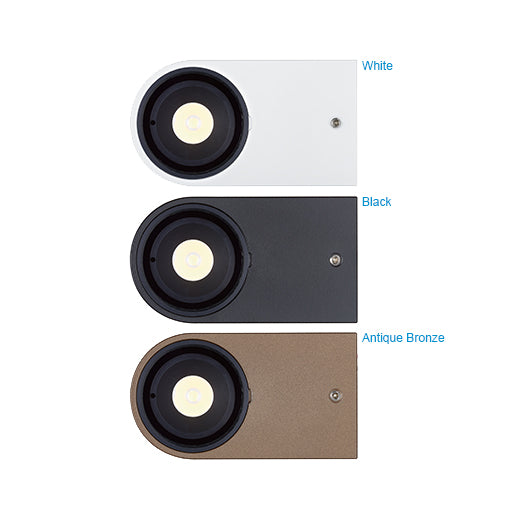

The LD96 Wall Light is machined from a solid billet of aluminium for strength and durability, with a painted and iridited finish and 1mm low-iron glass. It uses twin NICHIA C1 LED engines, available in 2.4W at 350mA, 3.4W at 500mA or 4.8W at 700mA, and carries an IP66 rating for demanding applications. An integral anti-wicking barrier adds further protection against moisture ingress, while the discreet stainless steel fixing bracket and optional glare shield support a clean installation with improved visual comfort.

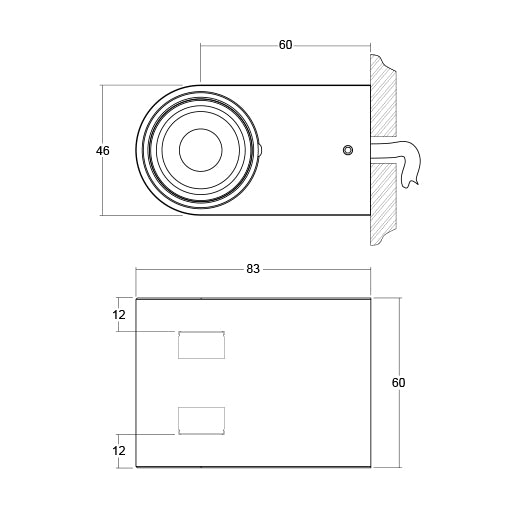

Height: 60mm
Width: 46mm
Depth: 83mm
Tilt Angle (°): -
Rotation Angle (°): -
Light Source: LED
Wattage: 2.4W @ 350mA / 3.4W @ 500mA / 4.8W @ 700mA
Lumens: 212lm / 276lm / 354lm
Kelvin: 2200K / 2700K / 3000K
CRI: 93+
Beam Degree: 12°/ 31° / 48°
Driver Required: Yes - Remote mounted
Switched: -
Dimmable: Yes
Dimming Type: Driver Dependent
Voltage: 6V
IP rating: IP66
Fire rated: -
