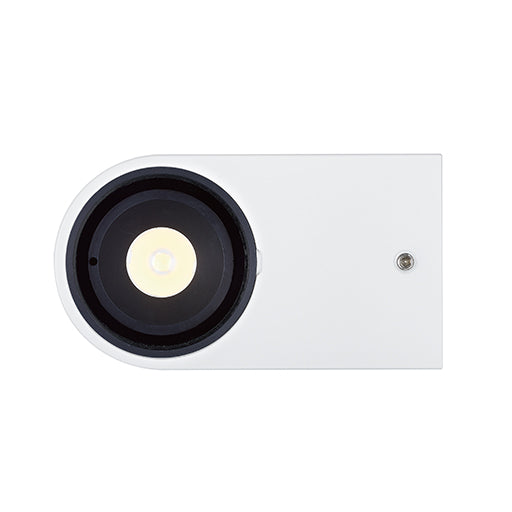

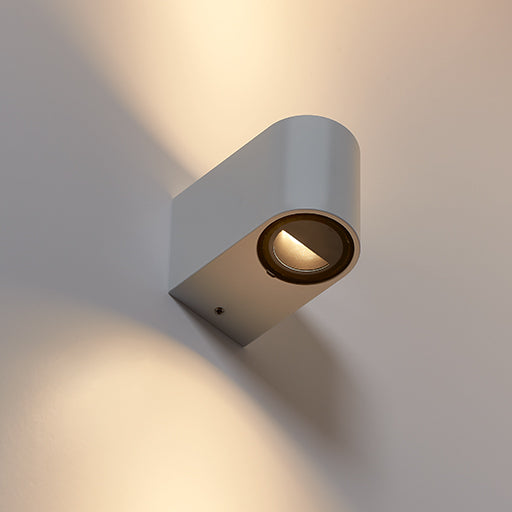

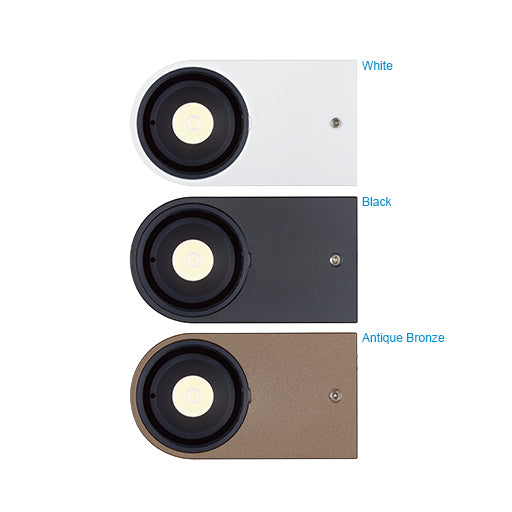

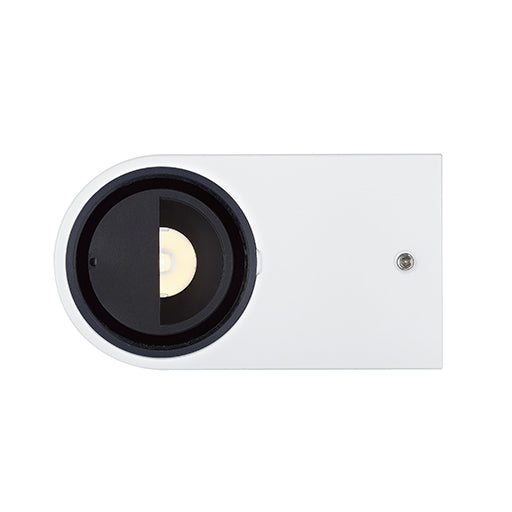

LD97 Wall Light
Usually ships within 4 weeks
Built To Order Item, we are unable to accept returns unless they are found to be faulty.

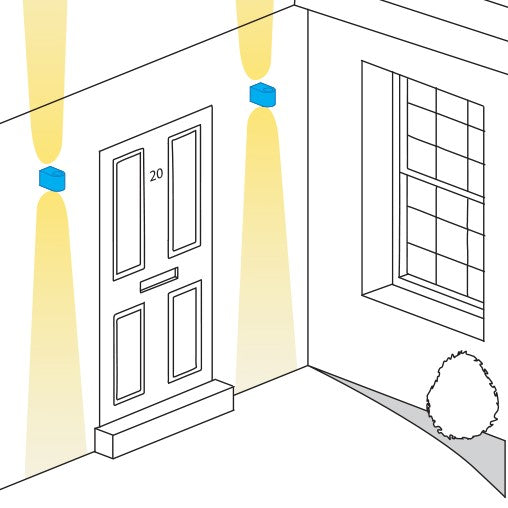

The LD97 Wall Light is a miniature surface-mounted LED fitting designed for discreet architectural illumination in applications where space is limited. Developed as a compact version of the LD10237, its minimal form allows it to integrate seamlessly into window reveals, walls, pathways and detailed architectural features. A choice of beam angles and LED colours gives designers flexibility to create focused wall washing, subtle path lighting or refined reveal illumination.
Built for demanding environments, the LD97 Wall Light features a robust body machined from a solid billet of aluminium with an iridited painted finish and 1mm low-iron glass. It uses a replaceable NICHIA C1 LED engine, available in 1.2W at 350mA, 1.7W at 500mA or 2.4W at 700mA, and is rated IP66. A discreet stainless steel fixing bracket with M4 grub screws maintains the clean appearance, while the integral anti-wicking barrier provides additional protection against moisture ingress.

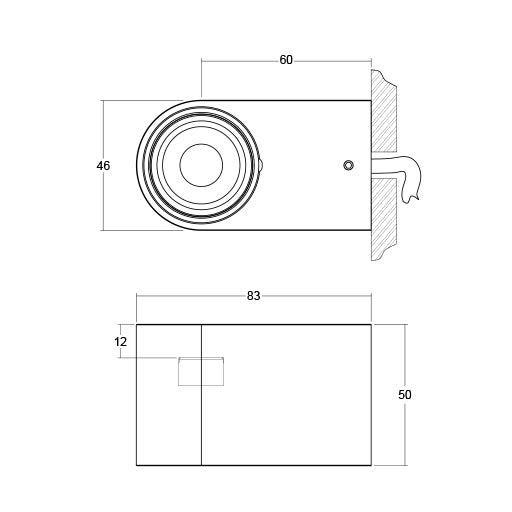

Height: 50mm
Width: 46mm
Depth: 83mm
Tilt Angle (°): -
Rotation Angle (°): -
Light Source: LED
Wattage:1.2W @ 350mA / 1.7W @ 500mA / 2.4W @ 700mA
Lumens: 212lm / 276lm / 354lm
Kelvin: 2200K / 2700K / 3000K
CRI: 93+
Beam Degree: 12°/ 31° / 48°
Driver Required: Yes - Remote mounted
Switched: -
Dimmable: Yes
Dimming Type: Driver Dependent
Voltage: 6V
IP rating: IP66
Fire rated: -
