Vendor: Lucent Lighting

Mix60 HO Duo Accent Trim Downlight

Mix60 Duo HO Fixed Trim Downlight is a compact twin-aperture recessed downlight designed for high output, fixed-direction lighting. With a Ø62mm trim and strong performance, it provides clean, consistent illumination with architectural precision.

Colour: White
Colour Temperature: 2700K
Beam Degree: 17°

Usually ships within 10-14 working days

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

Mix60 HO Duo Accent Trim Downlight is part of the Mix60 system, a versatile platform offering one system across three distinct styles. The Duo configuration features a Ø62mm overall trim with two Ø35mm adjustable apertures, allowing balanced, directional accent lighting from a single recessed fitting. It is available with standard trim kits or trimless options suitable for full skim, partial skim, or wood and stone ceilings, ensuring seamless integration across a wide range of interior finishes.

Powered by the LED35 Quantum High Output series, Mix60 HO Duo is designed to operate at 250mA and offers a choice of three colour temperatures and four beam angles. Fully dimmable with an appropriate driver, it delivers increased lumen output where stronger illumination is required, while maintaining excellent beam control. All Mix fixtures are IP54 as standard, with IP65 available on request, and have been tested and approved to EN 1363-1:2020 and EN 1365-2:2014 for 60-minute fire rating when ordered with the correct fire rating code. Robust, precise and performance-led, Mix60 Duo HO Accent Trim Downlight is ideal for demanding architectural lighting schemes.

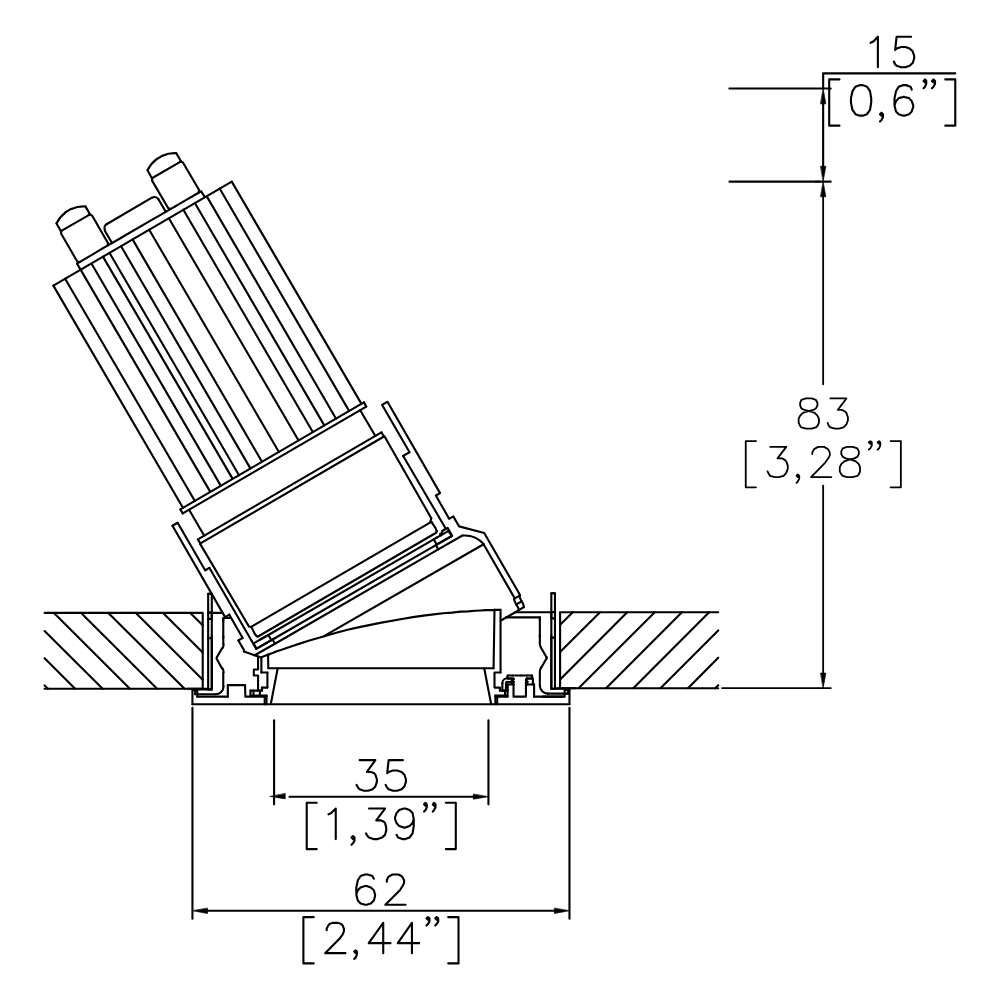

Overall Diameter: 62mm Ø

Depth: 83mm + 15mm

Cut Out: 56mm Ø

Tilt Angle (°):  30°

Rotation Angle (°): 360°

Light Source: LED

Lamp Holder: Integral

Wattage: 9.7W

Number of Lamps: -

Lumens:: 896lm / 959lm / 937lm / 756lm

Kelvin: 2700K / 3000K

CRI: 95

Beam Degree: NF (17°) / MF (23°) / FL (32°) / WFL (48°)

Driver Required: Yes - Remote mounted

Switched: -

Dimmable: Yes

Dimming Type: Phase / 0-10V / Dali

Voltage: 33V

IP rating: IP54 / IP65

Fire rated: Yes

Mix60 HO Duo Accent Trim Downlight is part of the Mix60 system, a versatile platform offering one system across three distinct styles. The Duo configuration features a Ø62mm overall trim with two Ø35mm adjustable apertures, allowing balanced, directional accent lighting from a single recessed fitting. It is available with standard trim kits or trimless options suitable for full skim, partial skim, or wood and stone ceilings, ensuring seamless integration across a wide range of interior finishes.

Powered by the LED35 Quantum High Output series, Mix60 HO Duo is designed to operate at 250mA and offers a choice of three colour temperatures and four beam angles. Fully dimmable with an appropriate driver, it delivers increased lumen output where stronger illumination is required, while maintaining excellent beam control. All Mix fixtures are IP54 as standard, with IP65 available on request, and have been tested and approved to EN 1363-1:2020 and EN 1365-2:2014 for 60-minute fire rating when ordered with the correct fire rating code. Robust, precise and performance-led, Mix60 Duo HO Accent Trim Downlight is ideal for demanding architectural lighting schemes.

Overall Diameter: 62mm Ø

Depth: 83mm + 15mm

Cut Out: 56mm Ø

Tilt Angle (°):  30°

Rotation Angle (°): 360°

Light Source: LED

Lamp Holder: Integral

Wattage: 9.7W

Number of Lamps: -

Lumens:: 896lm / 959lm / 937lm / 756lm

Kelvin: 2700K / 3000K

CRI: 95

Beam Degree: NF (17°) / MF (23°) / FL (32°) / WFL (48°)

Driver Required: Yes - Remote mounted

Switched: -

Dimmable: Yes

Dimming Type: Phase / 0-10V / Dali

Voltage: 33V

IP rating: IP54 / IP65

Fire rated: Yes
