Vendor: Lucent Lighting

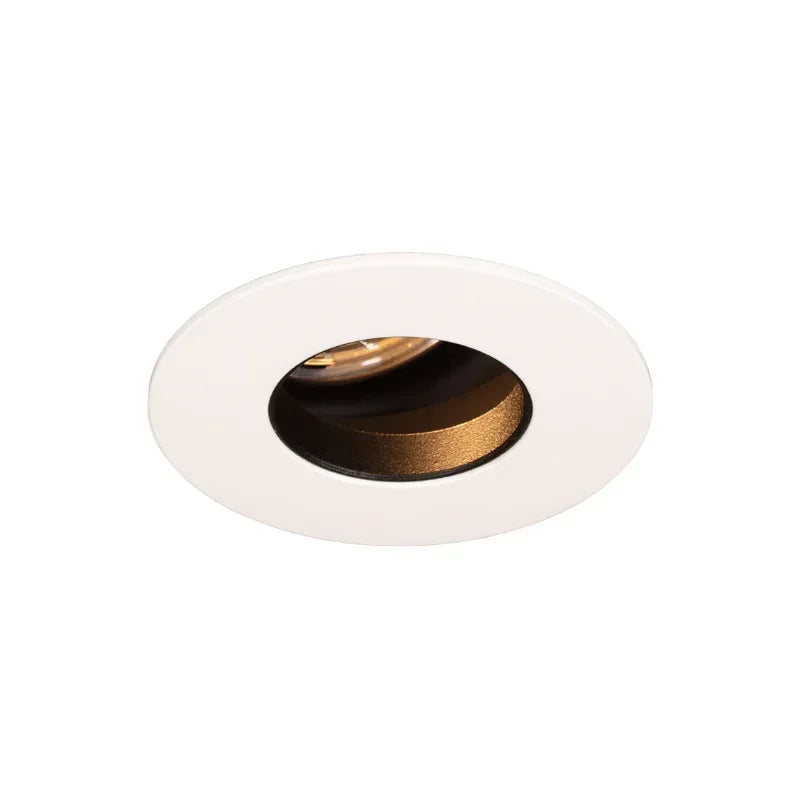

Mix85 Edge Accent Trim Downlight

SKU: OCMN010-TR1-WH01-WH01

The Mix85 Edge Accent Trim Downlight is part of the versatile Mix85 range, offering one system with four distinct styles. Featuring an Ø85mm overall trim and a Ø45mm aperture, it is supplied with a standard trim kit for ease of installation. Designed for precision accent lighting, the Edge variant delivers a refined and modern aesthetic.

Colour: White
Colour Temperature: 2700K
Beam Degree: 12°

Usually ships within 10-14 working days

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

The Mix85 Edge Accent Trim Downlight is part of the versatile Mix85 range, offering one system with four distinct styles. Featuring an Ø85mm overall trim and a Ø45mm aperture, it is supplied with a standard trim kit for ease of installation. Designed for precision accent lighting, the Edge variant delivers a refined and modern aesthetic.

All Mix fixtures are rated IP54 as standard, with an IP65 option available on request for enhanced protection. The range has been tested and approved to EN 1363-1:2020 and EN 1365-2:2014 for a 60-minute fire rating and must be ordered with the appropriate fire-rated code to ensure compliance.

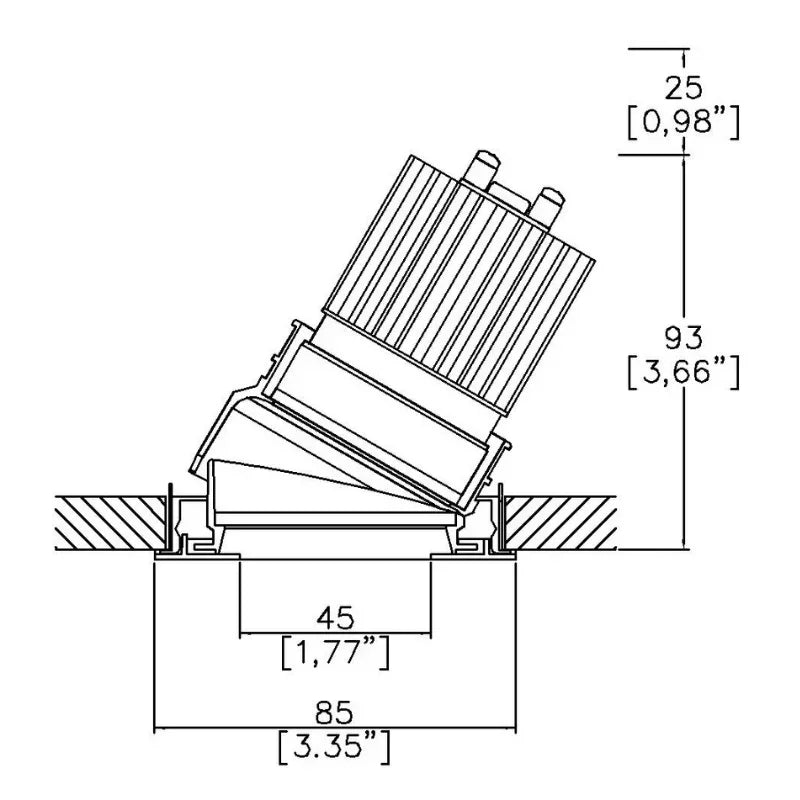

Overall Diameter: 85mm Ø

Depth: 93mm + 25mm

Cut Out: 82mm Ø

Tilt Angle (°):  30°

Rotation Angle (°): 360°

Light Source: LED

Lamp Holder: -

Wattage: 14.8W

Number of Lamps: -

Lumens:: 1010lm / 1058lm / 1115lm / 1213lm

Kelvin: 2200K / 2700K / 3000K

CRI: 95

Beam Degree: SP (12°) / MF (19°) / FL (30°) / WFL (57°)

Driver Required: Yes - Remote mounted

Switched: -

Dimmable: Yes

Dimming Type: Phase / 0-10V / Dali

Voltage: 36V

IP rating: IP54 / IP65

Fire rated: Yes
