Vendor: Phos

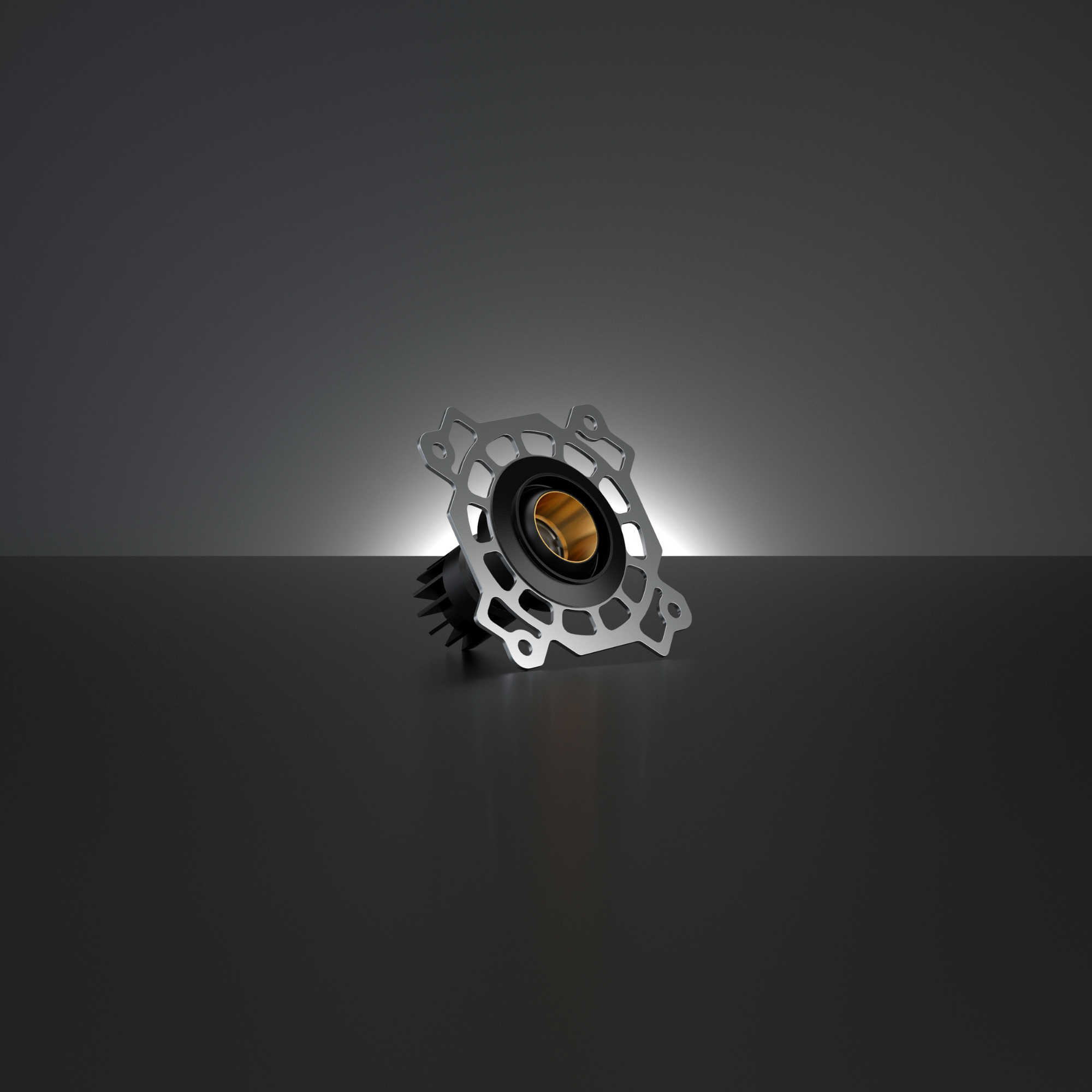

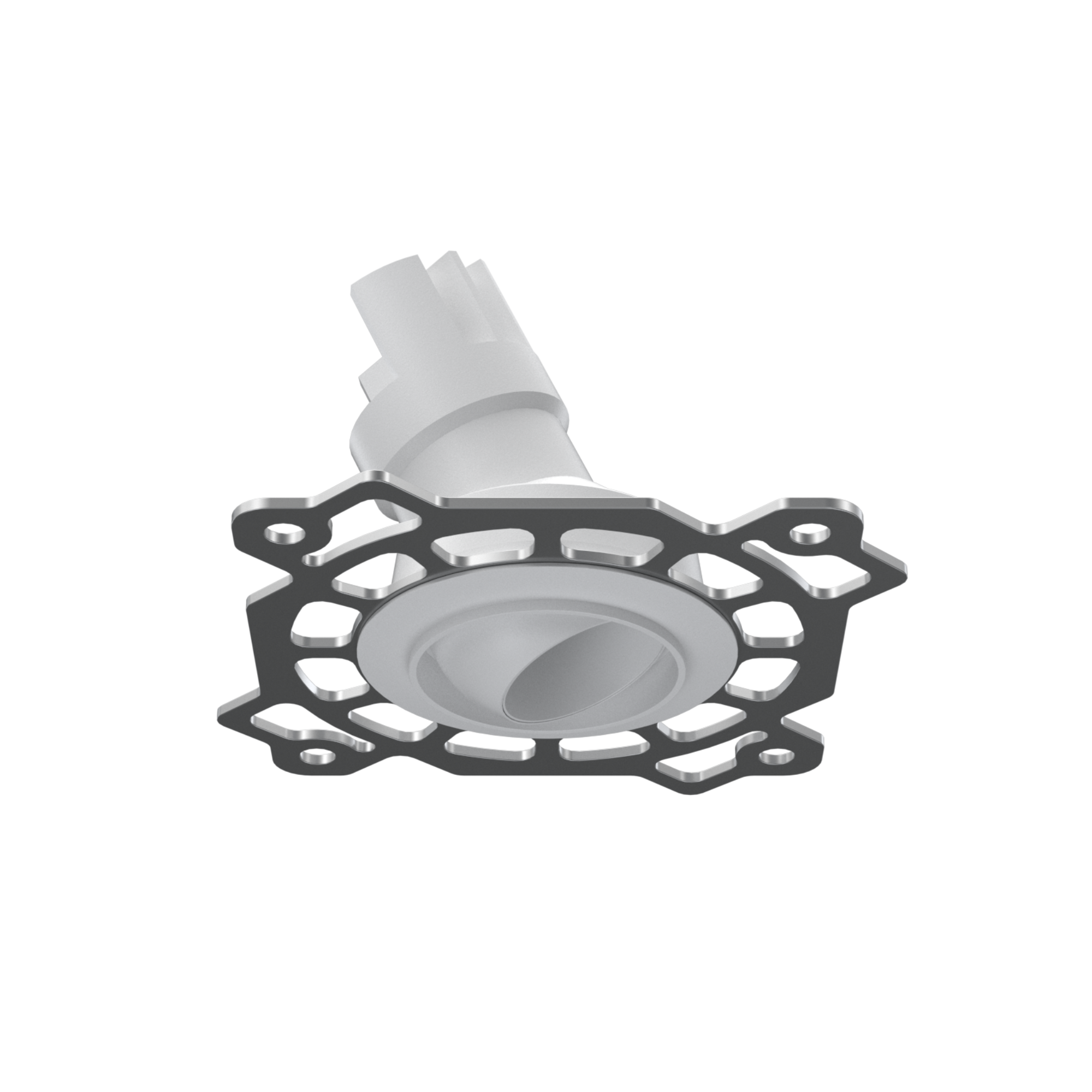

Nano Eyeconic Trimless Adjustable Downlight

The Nano Eyeconic Trimless Adjustable Downlight is an ultra-compact plaster-in fitting designed for discreet, low-glare architectural lighting. Featuring 22° tilt, 360° rotation and interchangeable beam options, it provides precise directional illumination from a minimal ceiling aperture. IP65 protection and a wide choice of finishes make it ideal for premium residential and hospitality interiors.

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

The Nano Eyeconic Trimless Adjustable Downlight by Phos is an exceptionally discreet recessed fitting designed for precision architectural lighting with an almost invisible ceiling presence. Its trimless plaster-in frame and sculpted anti-glare baffle create a clean, refined appearance, while the compact Ø38mm cut-out keeps the visible aperture to an absolute minimum. With up to 22° tilt and full 360° rotation, the fitting can be aimed precisely towards artwork, joinery and architectural features while maintaining excellent visual comfort.

Designed and manufactured in the UK, the Nano Eyeconic Trimless Adjustable is IP65 rated and available across the full Phos finish range. Standard 20°, 30°, 40° and 55° beam angles provide flexibility from focused accent lighting through to broader illumination, while interchangeable optics and accessories can be changed before or after installation. Its combination of miniature scale, glare control and specification flexibility makes it particularly suited to luxury residential, hospitality and gallery-style interiors where the lighting should feel integrated into the architecture.

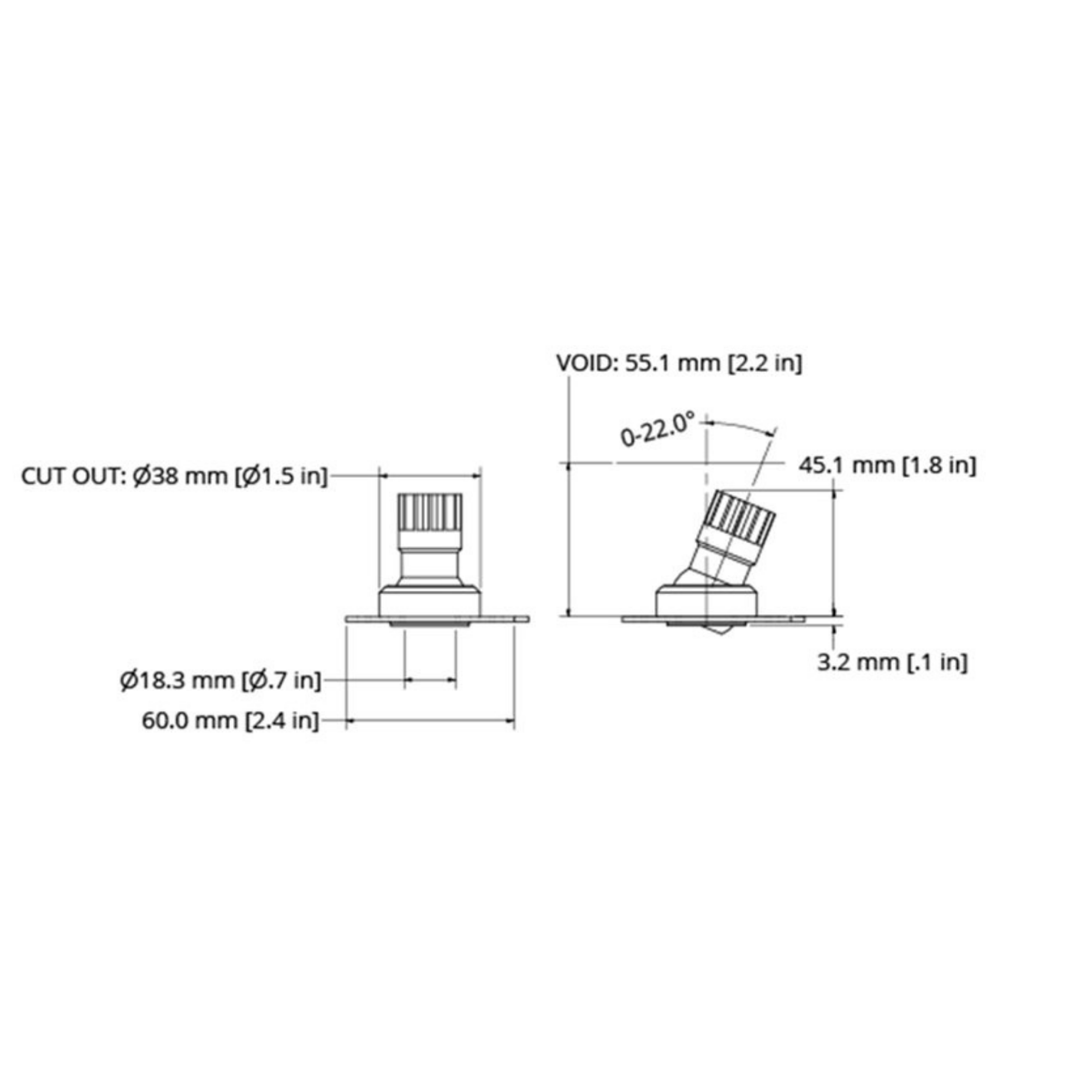

Overall Diameter: 18.3mm Ø

Overall Depth: 45.1mm

Cut-out Diameter: 38mm Ø

Recess Depth Required: 55.1mm

Material: Metal

Bezel Finish: Matt White / Matt Black / Other on request

Baffle Finish: Matt Black / Matt White / Other on request

Tilt Angle: 22°

Rotation Angle: 360°

Light Source: Integrated LED

Lumen Output (delivered, per fitting): 238lm / 244lm / 183lm / 193lm

Colour Temperature: 2700K / 3000K

CRI (Ra): 90.4

R9: ≥ 90

Beam Angle: 20° / 30° / 35° / 50°

Optic Accessories: Softening lens

Glare Shield Accessories: Honeycomb

Circuit Wattage: 3W

Supply Voltage: 220 – 240V

Driver Required: Yes

Driver Location & Access: Remote mounted

Dimmable: Yes

Dimming Protocol: Phase / 0-10V / DALI

IP Rating: IP20

Fire Rating: No

The Nano Eyeconic Trimless Adjustable Downlight by Phos is an exceptionally discreet recessed fitting designed for precision architectural lighting with an almost invisible ceiling presence. Its trimless plaster-in frame and sculpted anti-glare baffle create a clean, refined appearance, while the compact Ø38mm cut-out keeps the visible aperture to an absolute minimum. With up to 22° tilt and full 360° rotation, the fitting can be aimed precisely towards artwork, joinery and architectural features while maintaining excellent visual comfort.

Designed and manufactured in the UK, the Nano Eyeconic Trimless Adjustable is IP65 rated and available across the full Phos finish range. Standard 20°, 30°, 40° and 55° beam angles provide flexibility from focused accent lighting through to broader illumination, while interchangeable optics and accessories can be changed before or after installation. Its combination of miniature scale, glare control and specification flexibility makes it particularly suited to luxury residential, hospitality and gallery-style interiors where the lighting should feel integrated into the architecture.

Overall Diameter: 18.3mm Ø

Overall Depth: 45.1mm

Cut-out Diameter: 38mm Ø

Recess Depth Required: 55.1mm

Material: Metal

Bezel Finish: Matt White / Matt Black / Other on request

Baffle Finish: Matt Black / Matt White / Other on request

Tilt Angle: 22°

Rotation Angle: 360°

Light Source: Integrated LED

Lumen Output (delivered, per fitting): 238lm / 244lm / 183lm / 193lm

Colour Temperature: 2700K / 3000K

CRI (Ra): 90.4

R9: ≥ 90

Beam Angle: 20° / 30° / 35° / 50°

Optic Accessories: Softening lens

Glare Shield Accessories: Honeycomb

Circuit Wattage: 3W

Supply Voltage: 220 – 240V

Driver Required: Yes

Driver Location & Access: Remote mounted

Dimmable: Yes

Dimming Protocol: Phase / 0-10V / DALI

IP Rating: IP20

Fire Rating: No
