Vendor: Phos

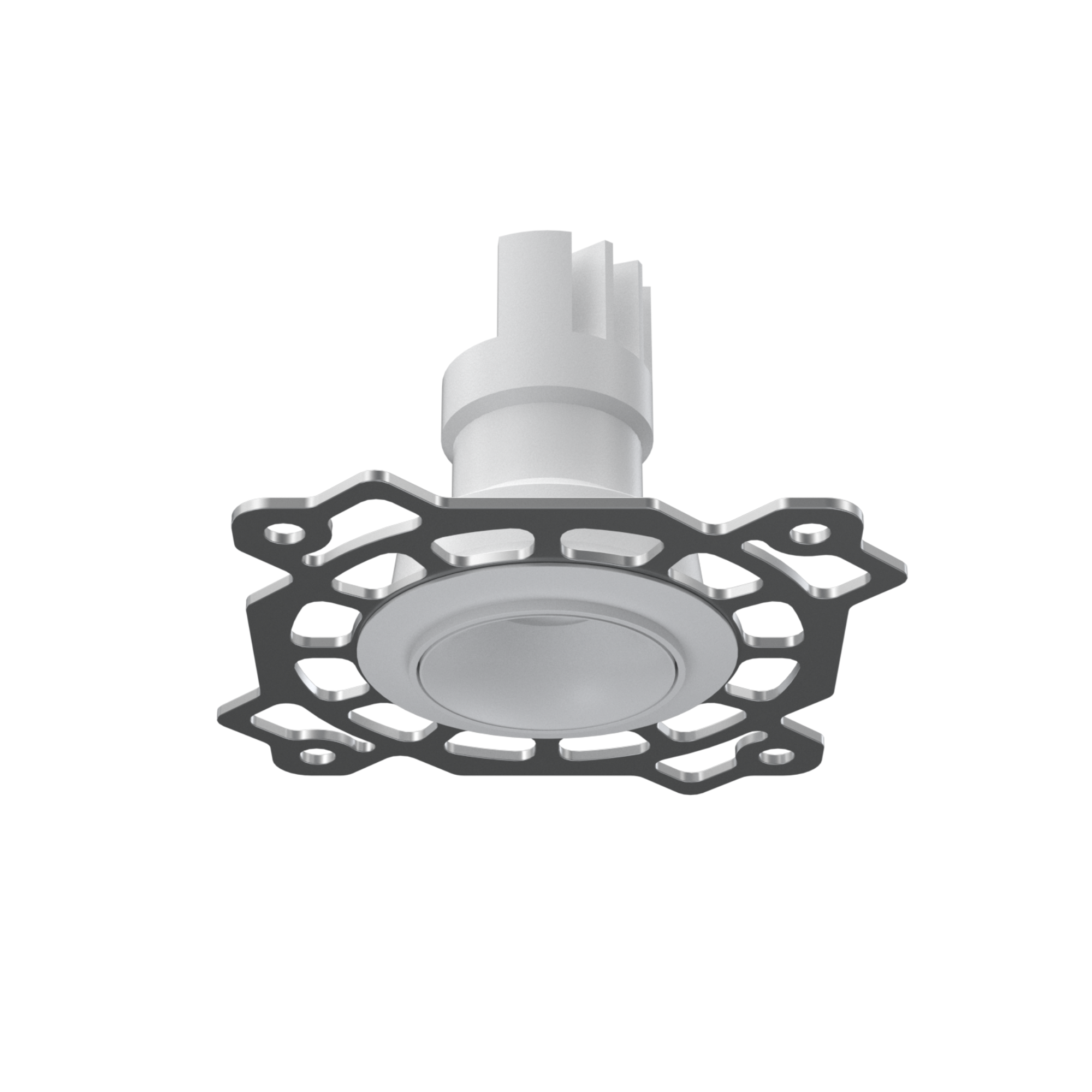

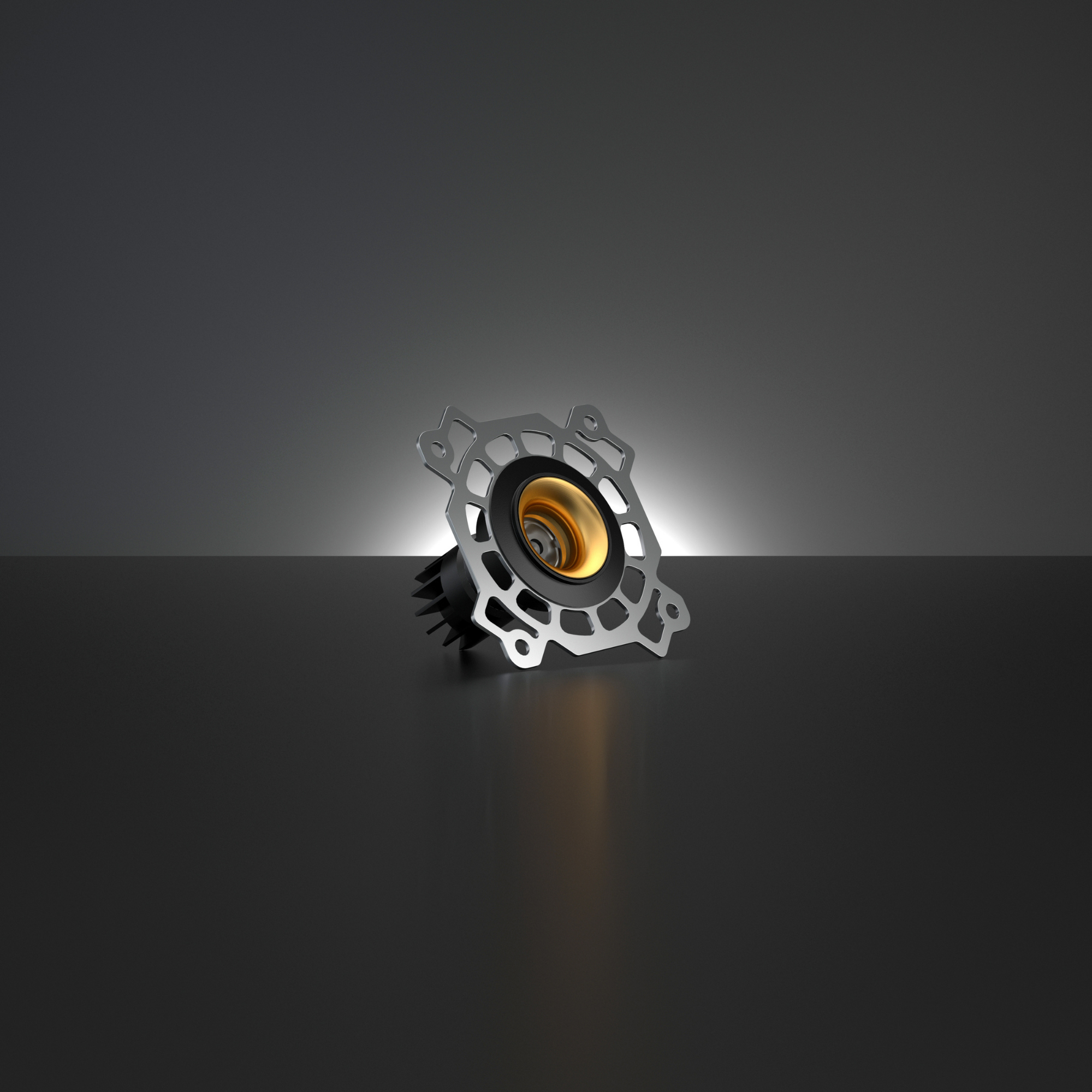

Nano Eyeconic Trimless Fixed Downlight

The Nano Eyeconic Trimless Fixed Downlight is an ultra-compact plaster-in fitting designed for discreet, low-glare architectural lighting. Its Ø38mm cut-out and interchangeable beam options provide precise illumination while keeping the ceiling appearance exceptionally clean. IP65 protection and a wide choice of finishes make it ideal for premium residential, hospitality and design-led interiors.

Usually ships within 4 weeks

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

The Nano Eyeconic Trimless Fixed Downlight by Phos is an exceptionally discreet recessed architectural fitting designed for projects where the light should be seen, but the luminaire should almost disappear. Its compact Ø38mm cut-out, beautifully sculpted anti-glare baffle and trimless plaster-in frame create a minimal ceiling appearance while maintaining precise, comfortable illumination. With a total diameter of just 60mm and a height of 47mm, the fitting is particularly well suited to luxury residential, hospitality and gallery-style interiors where ceiling detailing needs to remain refined and unobtrusive.

Designed and manufactured in the UK, the Nano Eyeconic Trimless Fixed is IP65 rated and available across the full Phos finish range. Standard 20°, 30°, 40° and 55° beam angles provide flexibility from more focused accent lighting through to broader general illumination, while interchangeable optics and accessories can be changed before or after installation. Backed by a five-year warranty, its combination of miniature proportions, low-glare performance and flexible specification makes it a strong choice for architects, interior designers and lighting designers working on considered interior schemes.

Overall Diameter: 18.3mm Ø

Overall Depth: 45.1mm

Cut-out Diameter: 38mm Ø

Recess Depth Required: 55.1mm

Material: Metal

Bezel Finish: Matt White / Matt Black / Other on request

Baffle Finish: Matt Black / Matt White / Other on request

Tilt Angle: -

Rotation Angle: -

Light Source: Integrated LED

Lumen Output (delivered, per fitting): 238lm / 244lm / 183lm / 193lm

Colour Temperature: 2700K / 3000K

CRI (Ra): 90.4

R9: ≥ 90

Beam Angle: 20° / 30° / 35° / 50°

Optic Accessories: Softening lens

Glare Shield Accessories: Honeycomb

Circuit Wattage: 3W

Supply Voltage: 220 – 240V

Driver Required: Yes

Driver Location & Access: Remote mounted

Dimmable: Yes

Dimming Protocol: Phase / 0-10V / DALI

IP Rating: IP20

Fire Rating: No

The Nano Eyeconic Trimless Fixed Downlight by Phos is an exceptionally discreet recessed architectural fitting designed for projects where the light should be seen, but the luminaire should almost disappear. Its compact Ø38mm cut-out, beautifully sculpted anti-glare baffle and trimless plaster-in frame create a minimal ceiling appearance while maintaining precise, comfortable illumination. With a total diameter of just 60mm and a height of 47mm, the fitting is particularly well suited to luxury residential, hospitality and gallery-style interiors where ceiling detailing needs to remain refined and unobtrusive.

Designed and manufactured in the UK, the Nano Eyeconic Trimless Fixed is IP65 rated and available across the full Phos finish range. Standard 20°, 30°, 40° and 55° beam angles provide flexibility from more focused accent lighting through to broader general illumination, while interchangeable optics and accessories can be changed before or after installation. Backed by a five-year warranty, its combination of miniature proportions, low-glare performance and flexible specification makes it a strong choice for architects, interior designers and lighting designers working on considered interior schemes.

Overall Diameter: 18.3mm Ø

Overall Depth: 45.1mm

Cut-out Diameter: 38mm Ø

Recess Depth Required: 55.1mm

Material: Metal

Bezel Finish: Matt White / Matt Black / Other on request

Baffle Finish: Matt Black / Matt White / Other on request

Tilt Angle: -

Rotation Angle: -

Light Source: Integrated LED

Lumen Output (delivered, per fitting): 238lm / 244lm / 183lm / 193lm

Colour Temperature: 2700K / 3000K

CRI (Ra): 90.4

R9: ≥ 90

Beam Angle: 20° / 30° / 35° / 50°

Optic Accessories: Softening lens

Glare Shield Accessories: Honeycomb

Circuit Wattage: 3W

Supply Voltage: 220 – 240V

Driver Required: Yes

Driver Location & Access: Remote mounted

Dimmable: Yes

Dimming Protocol: Phase / 0-10V / DALI

IP Rating: IP20

Fire Rating: No
