Vendor: Lucent Lighting

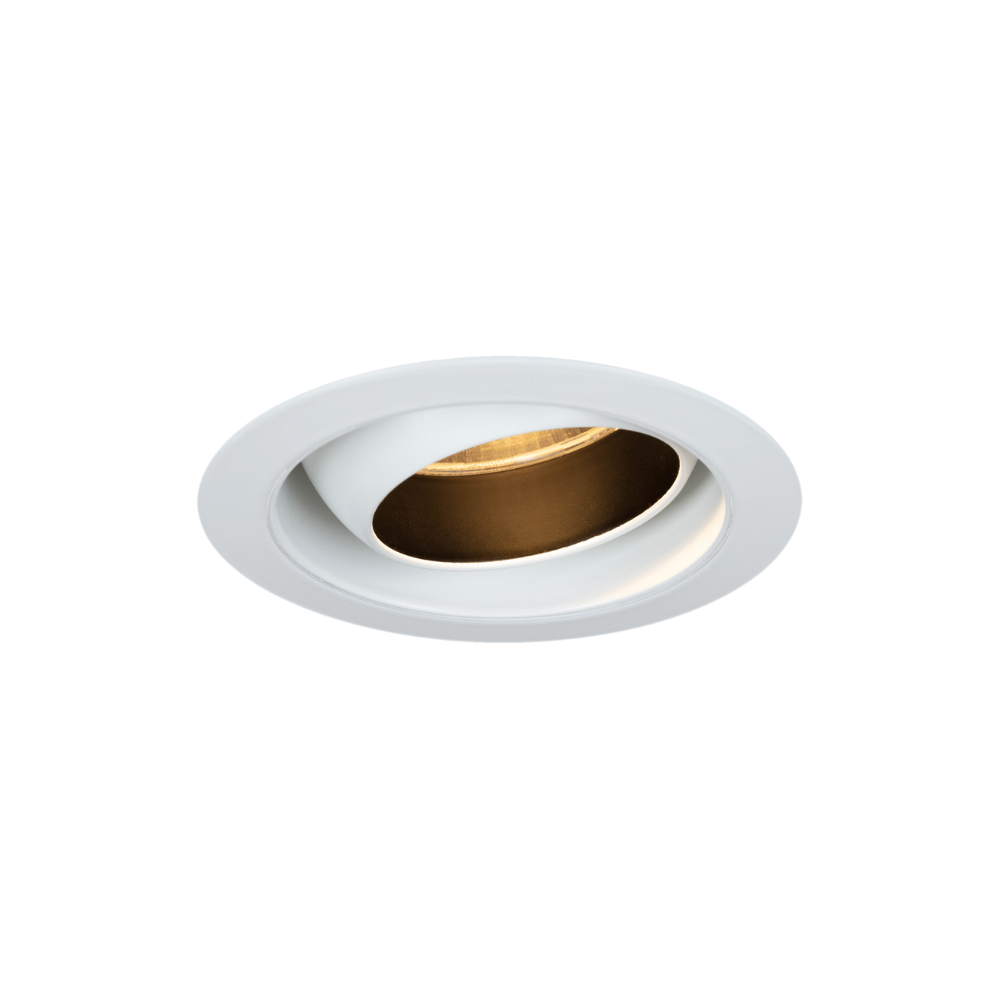

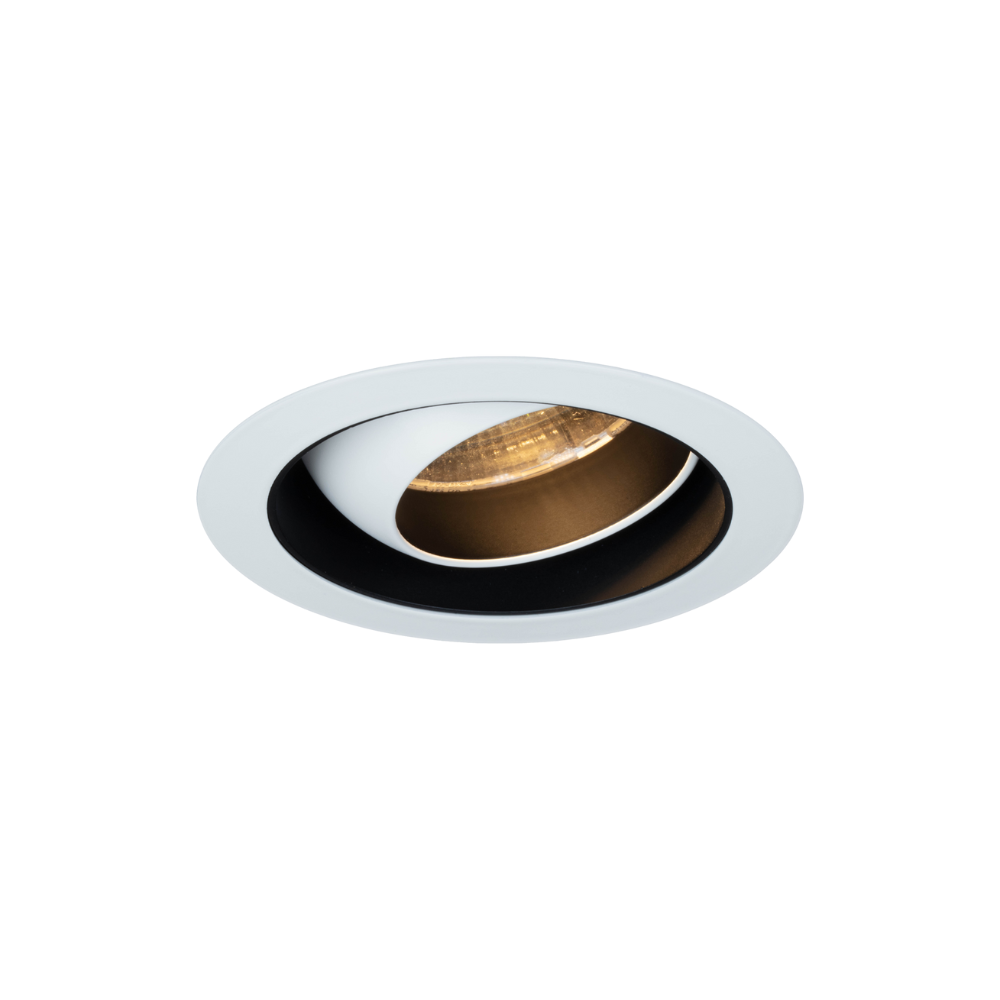

Oculus50 HE Accent Trim Downlight

Oculus50 HE Accent Trim Downlight is a compact, fully adjustable recessed downlight designed for precise accent lighting. Featuring a refined trim finish and a 50mm aperture, it delivers controlled illumination with high efficacy and architectural clarity.

Colour: White
Colour Temperature: 2700K
Beam Degree: 17°

Usually ships within 10-14 working days

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

Oculus50 HE Accent Trim Downlight is engineered for applications where accuracy, efficiency and visual restraint are essential. With a Ø50mm aperture and the advanced Oculus adjustment mechanism, it allows up to 30° of adjustment in all directions, enabling precise beam alignment for highlighting artwork, architectural features or key focal points. The fitting is available with a standard trim kit or trimless kits suitable for full skim, partial skim, or wood and stone ceilings, ensuring flexibility across a wide range of interior finishes.

Powered by the LED35 Quantum High Efficacy series, Oculus50 HE is designed to run at 150mA and offers a choice of three colour temperatures and four beam angles. Fully dimmable with an appropriate driver, it provides excellent control and energy-efficient performance. All Oculus fixtures are IP54 as standard, with IP65 available on request, and are tested and approved to EN 1363-1:2020 and EN 1365-2:2014 for 60-minute fire rating when ordered with the correct fire rating code. For delivered lumen output, reference should be made to the luminaire data sheet.

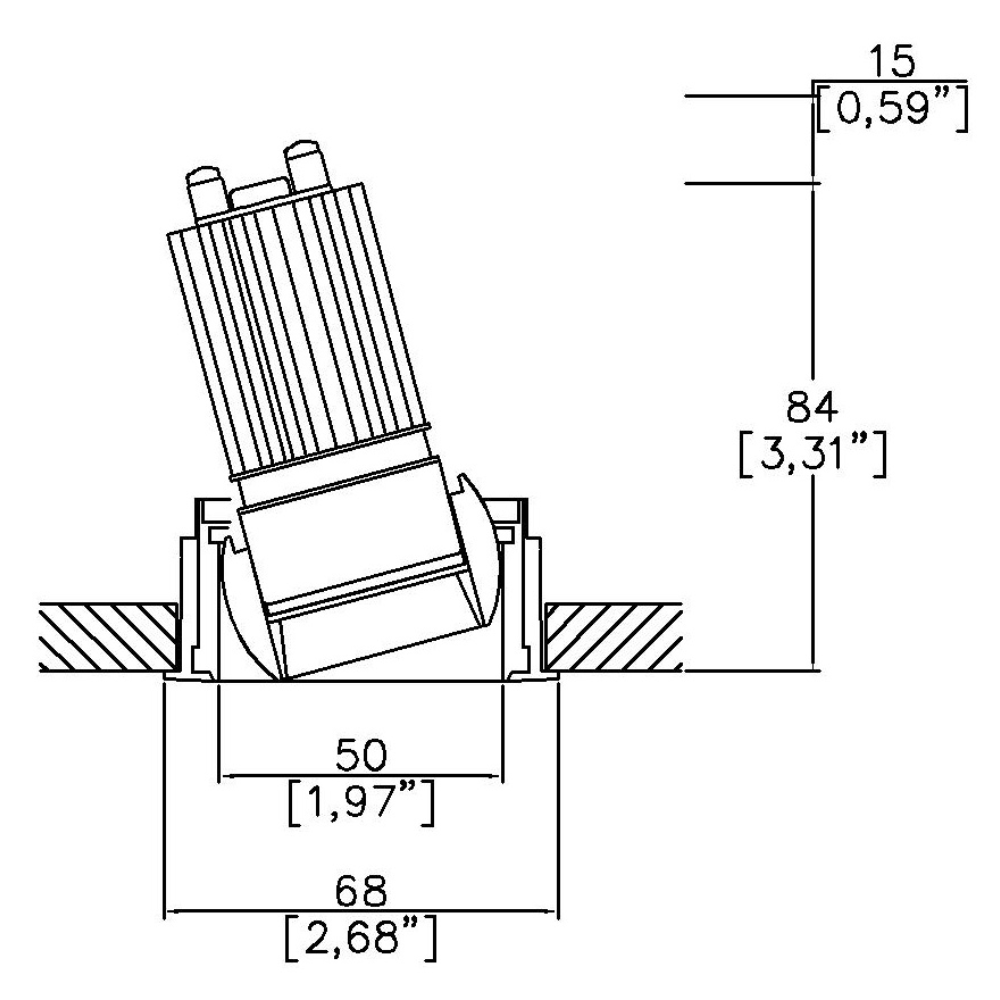

Overall Diameter: 68mm Ø

Depth: 86mm + 15mm

Cut Out: 61mm Ø

Tilt Angle (°):  30°

Rotation Angle (°): -

Light Source: LED

Lamp Holder: Integral

Wattage: 5.5W

Number of Lamps: -

Lumens:: 631lm / 638lm / 649lm / 577lm

Kelvin: 2700K / 3000K

CRI: 95

Beam Degree: NF (17°) / MF (22°) / FL (33°) / WFL (38°)

Driver Required: Yes - Remote mounted

Switched: -

Dimmable: Yes

Dimming Type: Phase / 0-10V / Dali

Voltage: 33V

IP rating: IP54 / IP65

Fire rated: Yes

Oculus50 HE Accent Trim Downlight is engineered for applications where accuracy, efficiency and visual restraint are essential. With a Ø50mm aperture and the advanced Oculus adjustment mechanism, it allows up to 30° of adjustment in all directions, enabling precise beam alignment for highlighting artwork, architectural features or key focal points. The fitting is available with a standard trim kit or trimless kits suitable for full skim, partial skim, or wood and stone ceilings, ensuring flexibility across a wide range of interior finishes.

Powered by the LED35 Quantum High Efficacy series, Oculus50 HE is designed to run at 150mA and offers a choice of three colour temperatures and four beam angles. Fully dimmable with an appropriate driver, it provides excellent control and energy-efficient performance. All Oculus fixtures are IP54 as standard, with IP65 available on request, and are tested and approved to EN 1363-1:2020 and EN 1365-2:2014 for 60-minute fire rating when ordered with the correct fire rating code. For delivered lumen output, reference should be made to the luminaire data sheet.

Overall Diameter: 68mm Ø

Depth: 86mm + 15mm

Cut Out: 61mm Ø

Tilt Angle (°):  30°

Rotation Angle (°): -

Light Source: LED

Lamp Holder: Integral

Wattage: 5.5W

Number of Lamps: -

Lumens:: 631lm / 638lm / 649lm / 577lm

Kelvin: 2700K / 3000K

CRI: 95

Beam Degree: NF (17°) / MF (22°) / FL (33°) / WFL (38°)

Driver Required: Yes - Remote mounted

Switched: -

Dimmable: Yes

Dimming Type: Phase / 0-10V / Dali

Voltage: 33V

IP rating: IP54 / IP65

Fire rated: Yes
