Vendor: Lucent Lighting

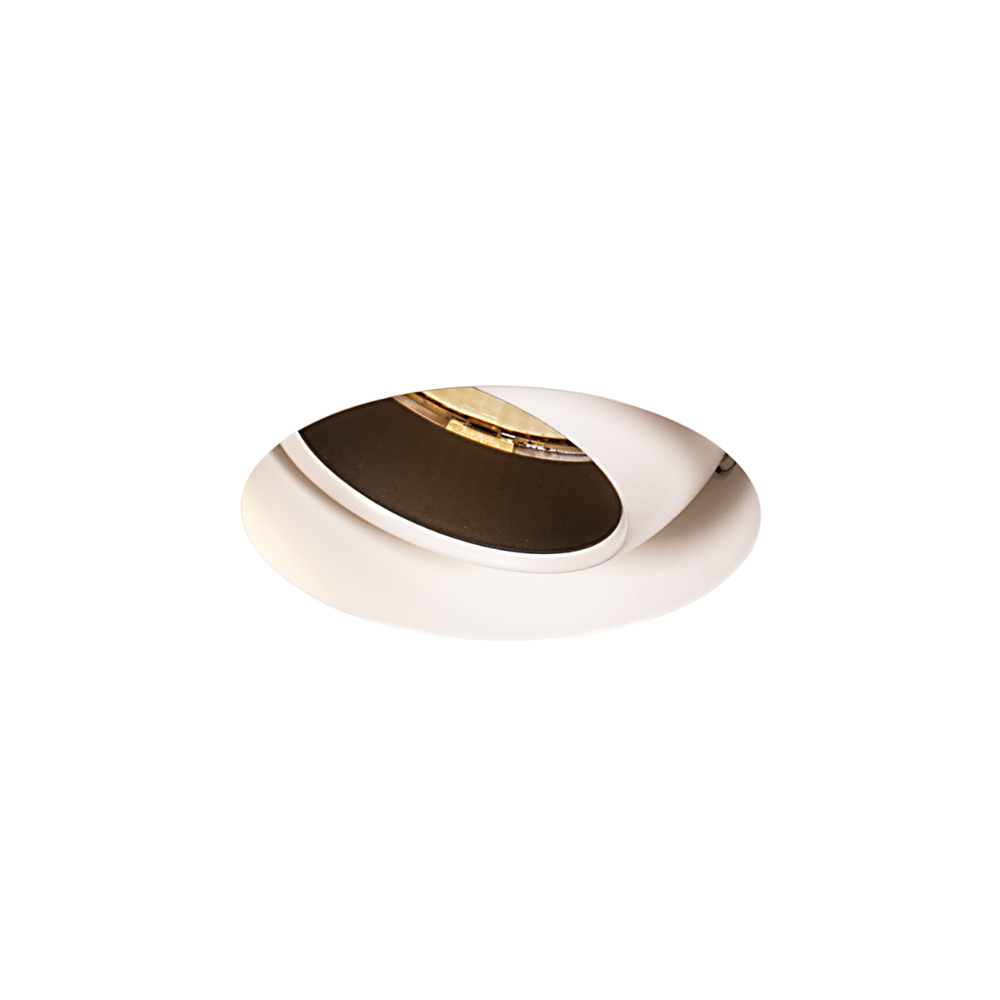

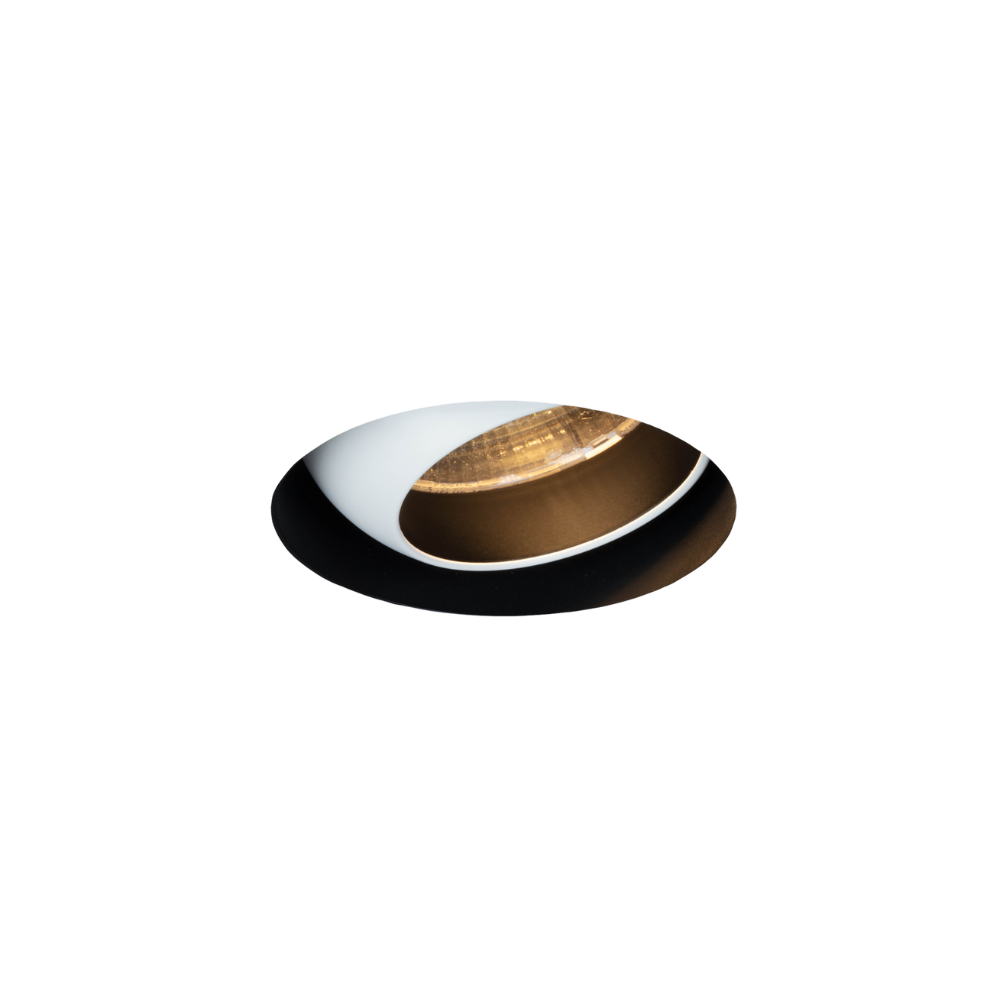

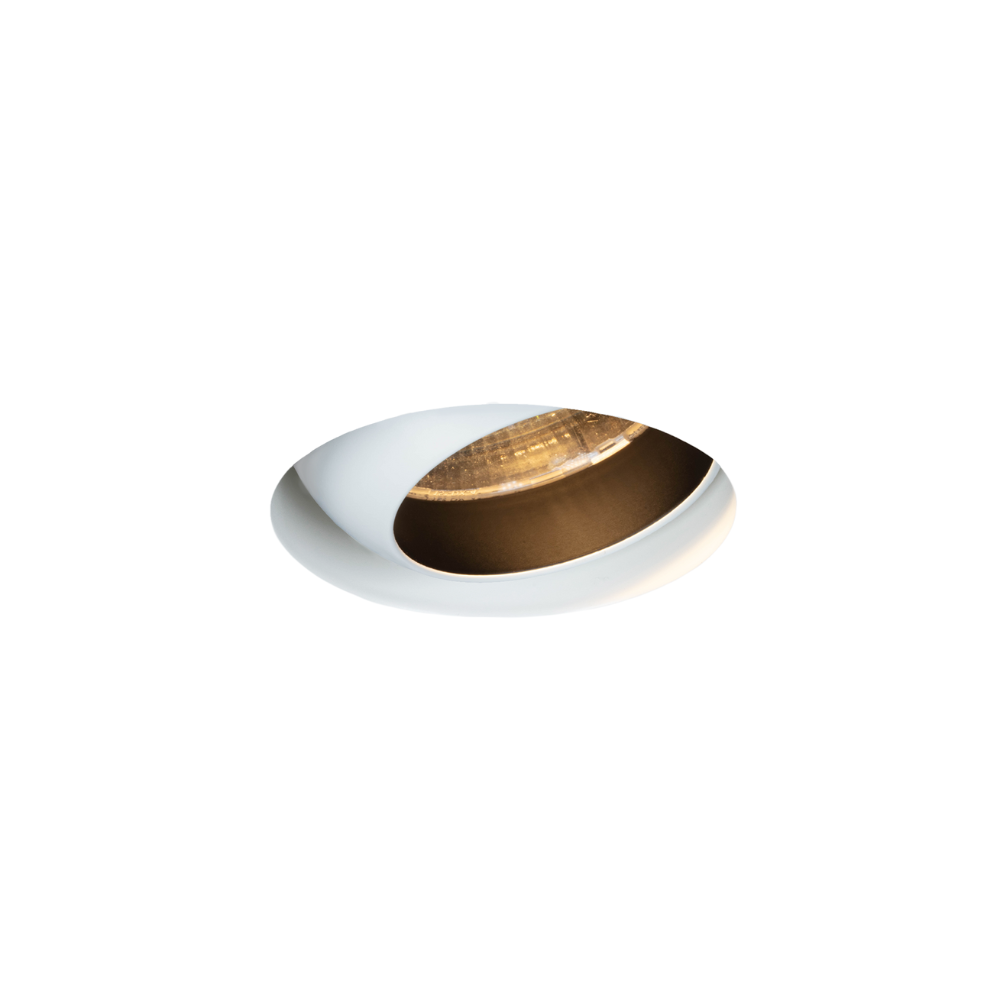

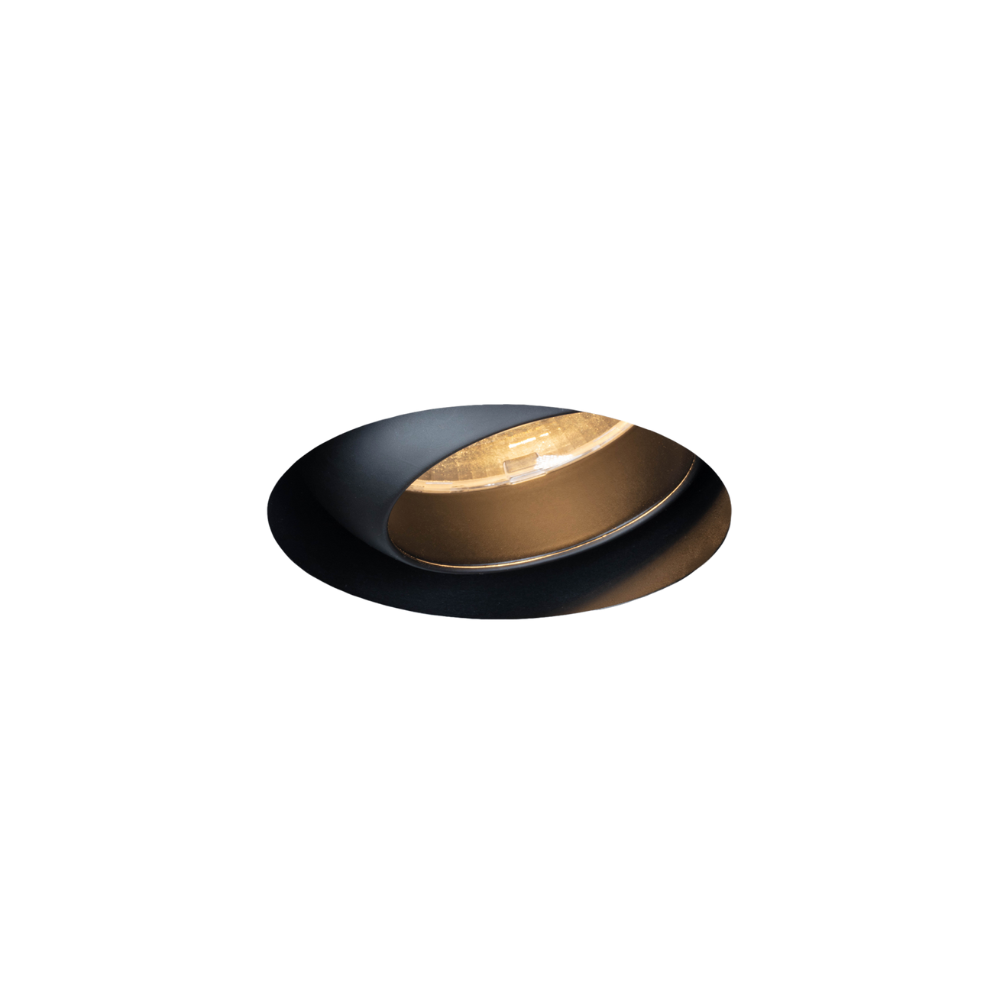

Oculus50 HE Accent Trimless Downlight

Oculus50 HE Accent Trimless Downlight is a compact, fully adjustable recessed downlight designed for seamless architectural integration. With a 50mm aperture and trimless installation options, it offers precise accent lighting with high efficacy and refined visual comfort.

Colour: White
Colour Temperature: 2700K
Beam Degree: 17°

Usually ships within 10-14 working days

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

Oculus50 HE Accent Trimless Downlight is engineered for projects where clean detailing and lighting precision are paramount. Featuring a Ø50mm aperture and the advanced Oculus adjustment mechanism, the fitting allows up to 30° of movement in all directions, enabling accurate beam positioning for artwork, architectural features and focal points. It is available with standard trim kits or trimless options suitable for full skim, partial skim, or wood and stone ceilings, ensuring seamless integration across a wide range of finishes.

Powered by the LED35 Quantum High Efficacy series, Oculus50 HE is designed to operate at 150mA and offers a choice of three colour temperatures and four beam angles. Fully dimmable with an appropriate driver, it delivers efficient, controlled illumination with excellent flexibility. All Oculus fixtures are IP54 as standard, with IP65 available on request, and have been tested and approved to EN 1363-1:2020 and EN 1365-2:2014 for 60-minute fire rating when ordered with the correct fire rating code. Precise, discreet and performance-led, Oculus50 HE Accent Trimless Downlight is a dependable solution for high-quality lighting schemes.

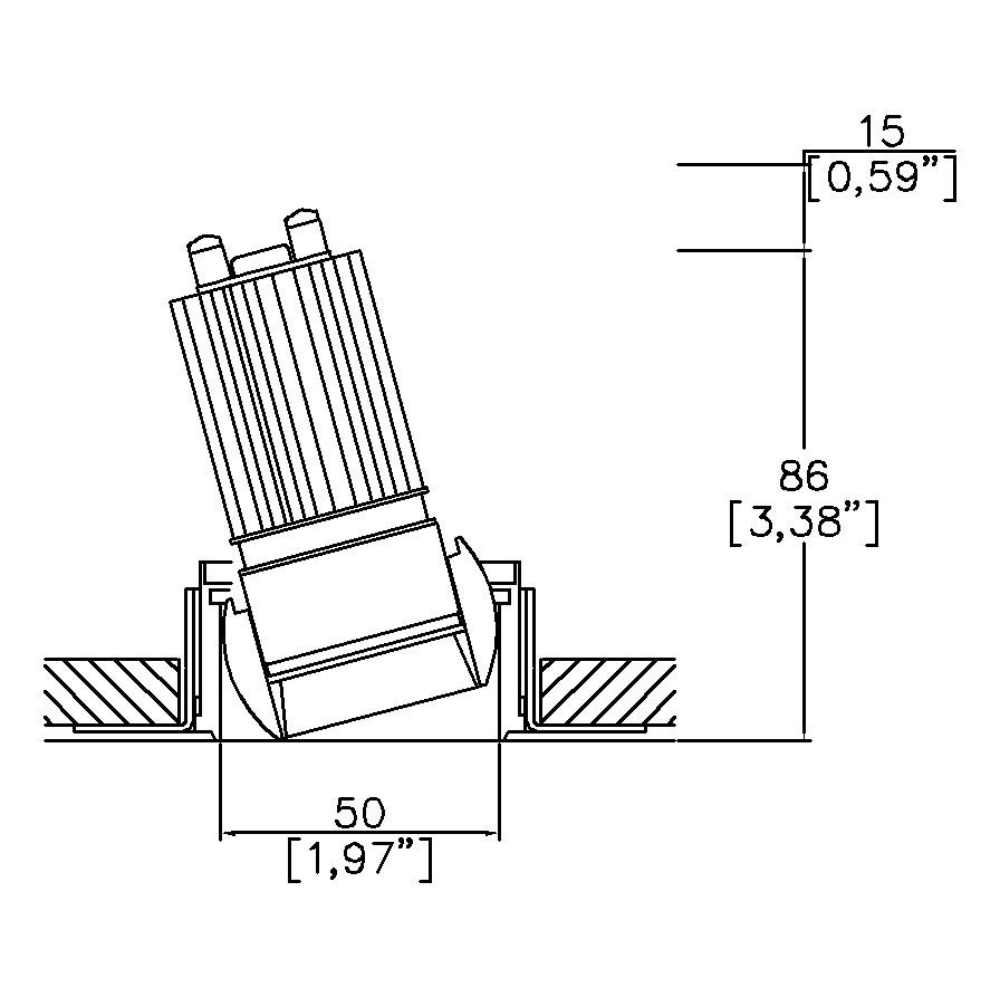

Overall Diameter: 50mm Ø

Depth: 86mm + 15mm

Cut Out: 61mm Ø

Tilt Angle (°):  30°

Rotation Angle (°): -

Light Source: LED

Lamp Holder: Integral

Wattage: 5.5W

Number of Lamps: -

Lumens:: 631lm / 638lm / 649lm / 577lm

Kelvin: 2700K / 3000K

CRI: 95

Beam Degree: NF (17°) / MF (22°) / FL (33°) / WFL (38°)

Driver Required: Yes - Remote mounted

Switched: -

Dimmable: Yes

Dimming Type: Phase / 0-10V / Dali

Voltage: 33V

IP rating: IP54 / IP65

Fire rated: Yes

Oculus50 HE Accent Trimless Downlight is engineered for projects where clean detailing and lighting precision are paramount. Featuring a Ø50mm aperture and the advanced Oculus adjustment mechanism, the fitting allows up to 30° of movement in all directions, enabling accurate beam positioning for artwork, architectural features and focal points. It is available with standard trim kits or trimless options suitable for full skim, partial skim, or wood and stone ceilings, ensuring seamless integration across a wide range of finishes.

Powered by the LED35 Quantum High Efficacy series, Oculus50 HE is designed to operate at 150mA and offers a choice of three colour temperatures and four beam angles. Fully dimmable with an appropriate driver, it delivers efficient, controlled illumination with excellent flexibility. All Oculus fixtures are IP54 as standard, with IP65 available on request, and have been tested and approved to EN 1363-1:2020 and EN 1365-2:2014 for 60-minute fire rating when ordered with the correct fire rating code. Precise, discreet and performance-led, Oculus50 HE Accent Trimless Downlight is a dependable solution for high-quality lighting schemes.

Overall Diameter: 50mm Ø

Depth: 86mm + 15mm

Cut Out: 61mm Ø

Tilt Angle (°):  30°

Rotation Angle (°): -

Light Source: LED

Lamp Holder: Integral

Wattage: 5.5W

Number of Lamps: -

Lumens:: 631lm / 638lm / 649lm / 577lm

Kelvin: 2700K / 3000K

CRI: 95

Beam Degree: NF (17°) / MF (22°) / FL (33°) / WFL (38°)

Driver Required: Yes - Remote mounted

Switched: -

Dimmable: Yes

Dimming Type: Phase / 0-10V / Dali

Voltage: 33V

IP rating: IP54 / IP65

Fire rated: Yes
