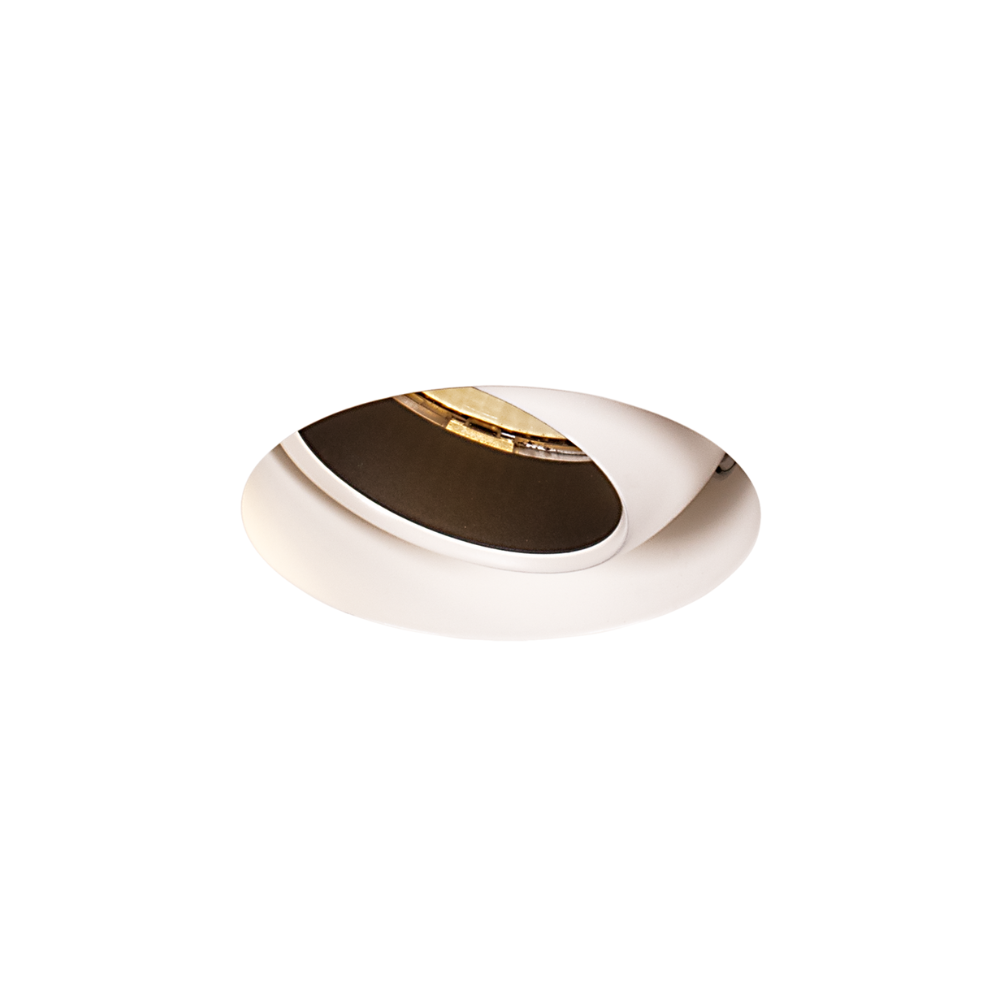

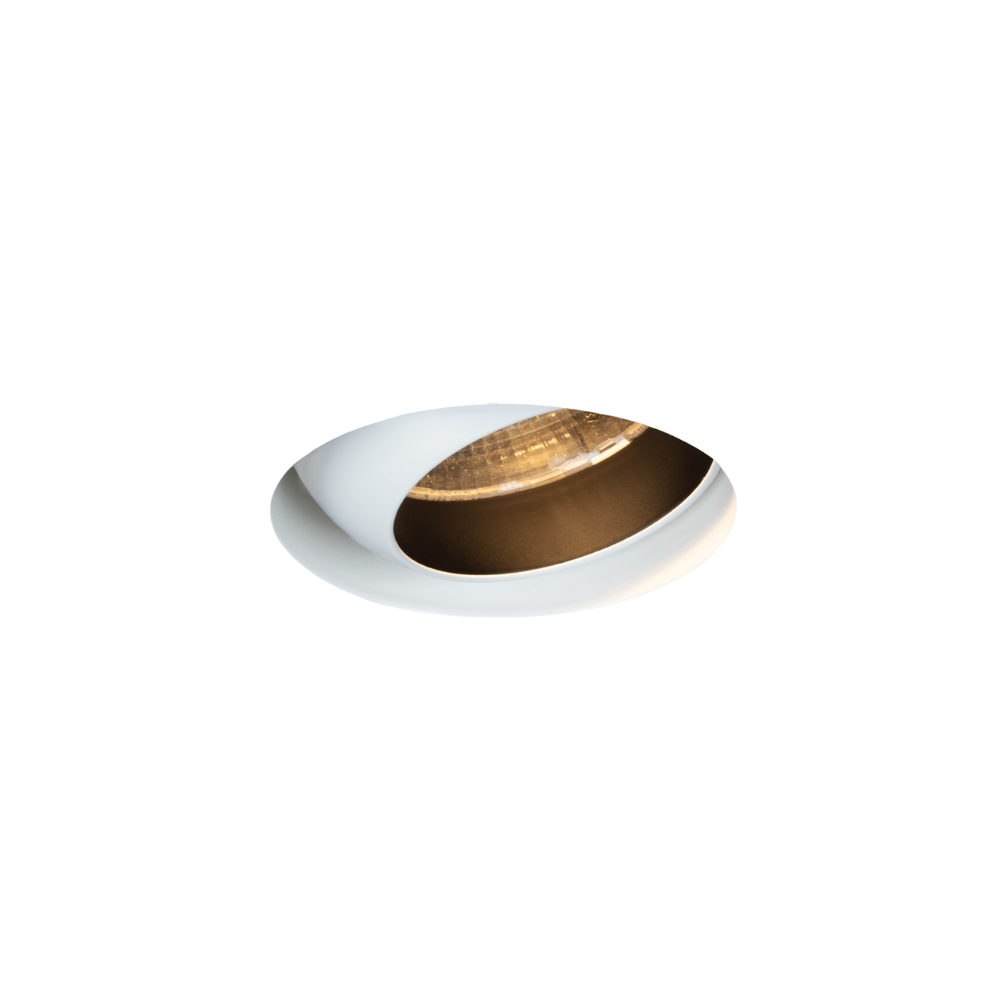

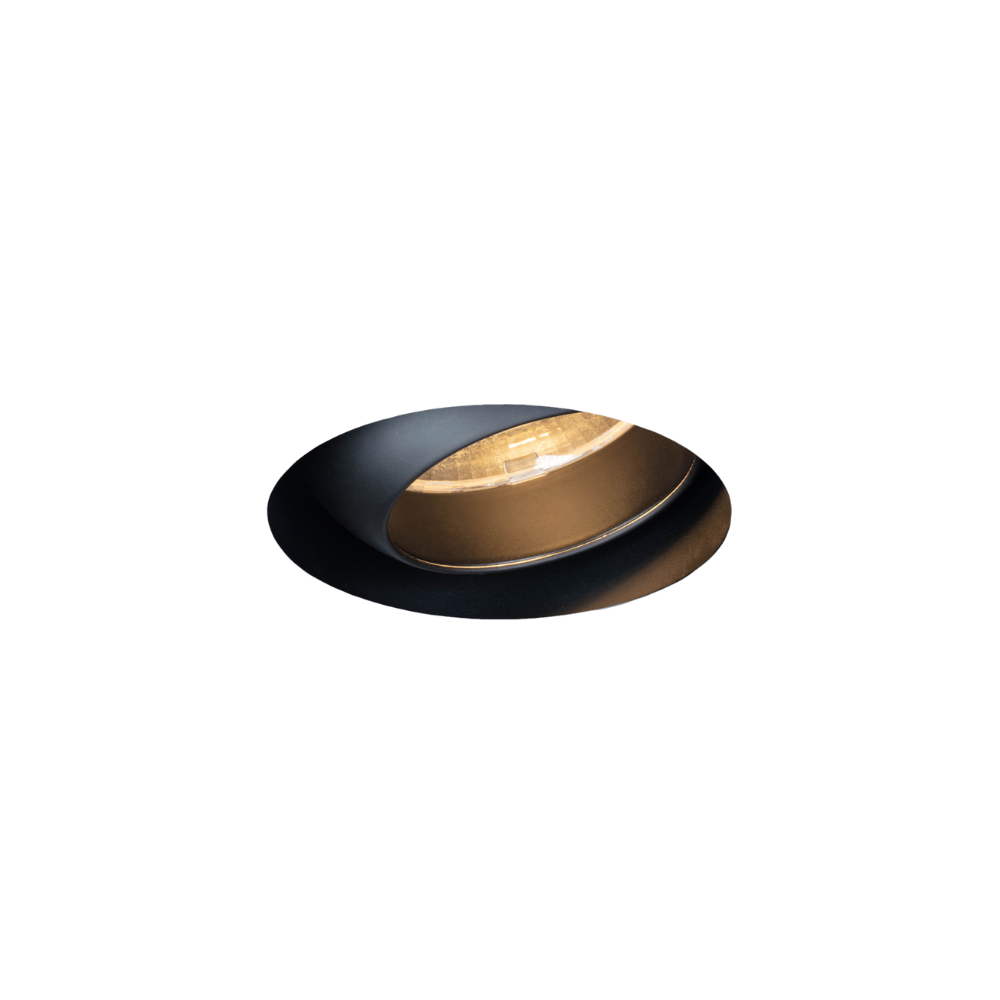

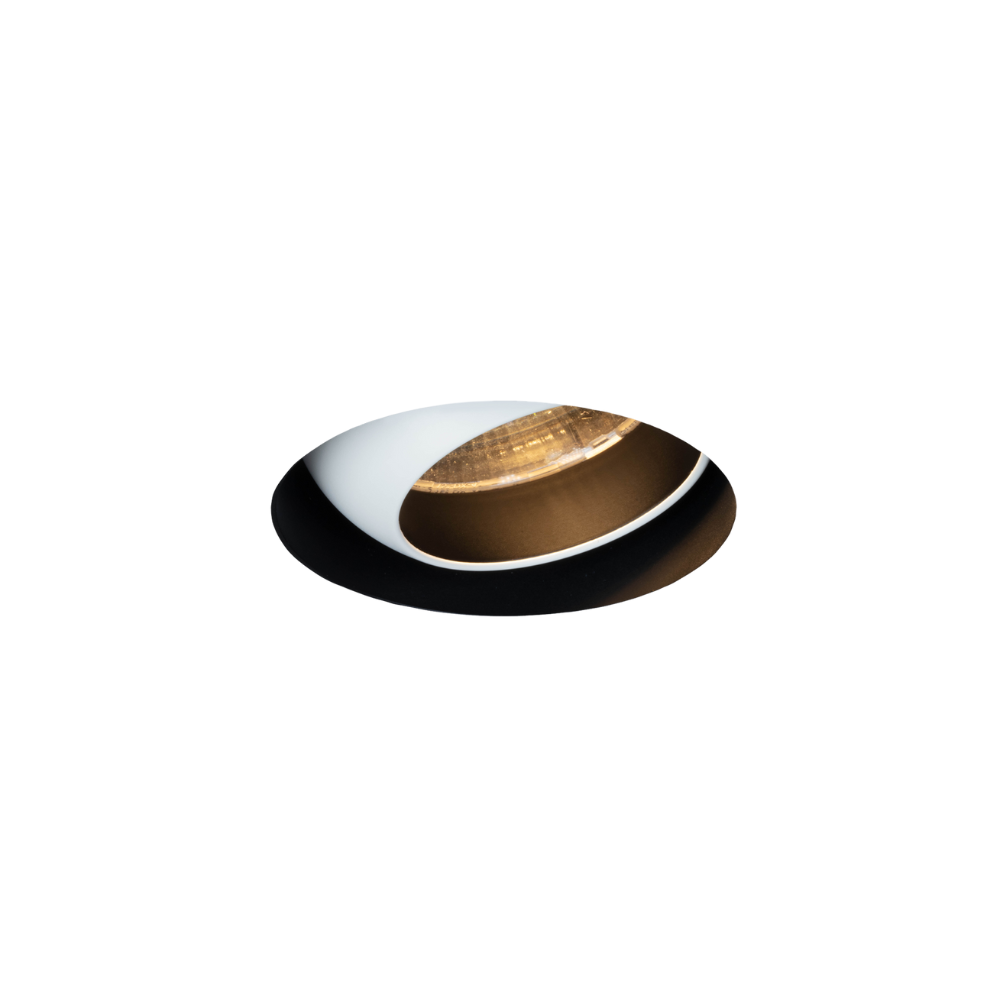

Oculus50 HO Accent Trimless Downlight

Oculus50 HO Accent Trimless Downlight is a compact, high-output recessed downlight designed for precise accent lighting in trimless ceilings. With a 50mm aperture and full adjustability, it combines powerful performance with clean architectural integration.

Colour: White
Colour Temperature: 2700K
Beam Degree: 17°

Usually ships within 10-14 working days

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

Oculus50 HO Accent Trimless Downlight is engineered for applications where higher light output is required without compromising visual restraint. Featuring a Ø50mm aperture and the advanced Oculus adjustment mechanism, the fitting allows up to 30° of movement in all directions, enabling accurate beam control for artwork, architectural details and focal points. It is available with standard trim kits or trimless options suitable for full skim, partial skim, or wood and stone ceilings, ensuring seamless integration across a variety of ceiling finishes.

Powered by the LED35 Quantum High Output series, Oculus50 HO is designed to operate at 250mA and offers a choice of three colour temperatures and four beam angles. Fully dimmable with an appropriate driver, it delivers strong, controlled illumination where higher lumen output is required. All Oculus fixtures are IP54 as standard, with IP65 available on request, and have been tested and approved to EN 1363-1:2020 and EN 1365-2:2014 for 60-minute fire rating when ordered with the correct fire rating code. For delivered lumen output, reference should be made to the luminaire data sheet.

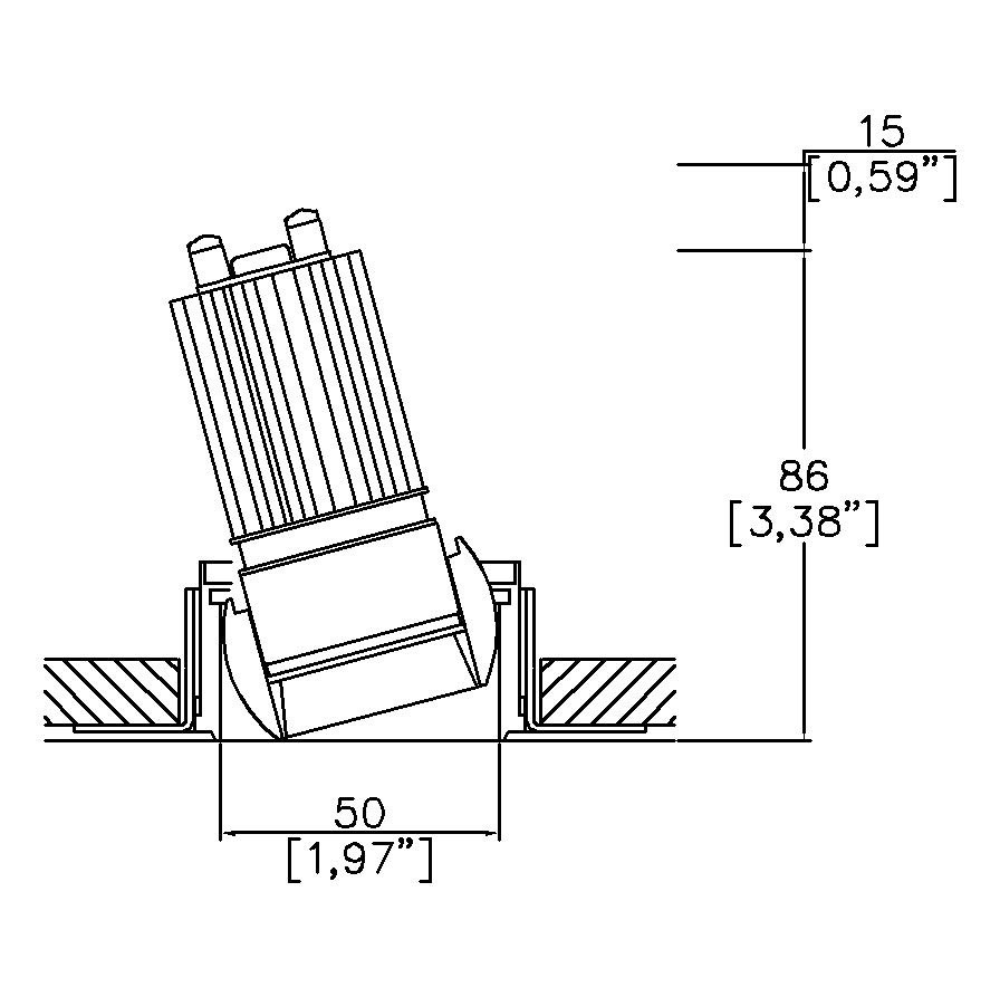

Overall Diameter: 50mm Ø

Depth: 86mm + 15mm

Cut Out: 61mm Ø

Tilt Angle (°):  30°

Rotation Angle (°): -

Light Source: LED

Lamp Holder: Integral

Wattage: 9.7W

Number of Lamps: -

Lumens:: 915lm / 966lm / 980lm/ 843lm

Kelvin: 2700K / 3000K

CRI: 95

Beam Degree: NF (17°) / MF (22°) / FL (33°) / WFL (48°)

Driver Required: Yes - Remote mounted

Switched: -

Dimmable: Yes

Dimming Type: Phase / 0-10V / Dali

Voltage: 33V

IP rating: IP54 / IP65

Fire rated: Yes

Oculus50 HO Accent Trimless Downlight is engineered for applications where higher light output is required without compromising visual restraint. Featuring a Ø50mm aperture and the advanced Oculus adjustment mechanism, the fitting allows up to 30° of movement in all directions, enabling accurate beam control for artwork, architectural details and focal points. It is available with standard trim kits or trimless options suitable for full skim, partial skim, or wood and stone ceilings, ensuring seamless integration across a variety of ceiling finishes.

Powered by the LED35 Quantum High Output series, Oculus50 HO is designed to operate at 250mA and offers a choice of three colour temperatures and four beam angles. Fully dimmable with an appropriate driver, it delivers strong, controlled illumination where higher lumen output is required. All Oculus fixtures are IP54 as standard, with IP65 available on request, and have been tested and approved to EN 1363-1:2020 and EN 1365-2:2014 for 60-minute fire rating when ordered with the correct fire rating code. For delivered lumen output, reference should be made to the luminaire data sheet.

Overall Diameter: 50mm Ø

Depth: 86mm + 15mm

Cut Out: 61mm Ø

Tilt Angle (°):  30°

Rotation Angle (°): -

Light Source: LED

Lamp Holder: Integral

Wattage: 9.7W

Number of Lamps: -

Lumens:: 915lm / 966lm / 980lm/ 843lm

Kelvin: 2700K / 3000K

CRI: 95

Beam Degree: NF (17°) / MF (22°) / FL (33°) / WFL (48°)

Driver Required: Yes - Remote mounted

Switched: -

Dimmable: Yes

Dimming Type: Phase / 0-10V / Dali

Voltage: 33V

IP rating: IP54 / IP65

Fire rated: Yes
