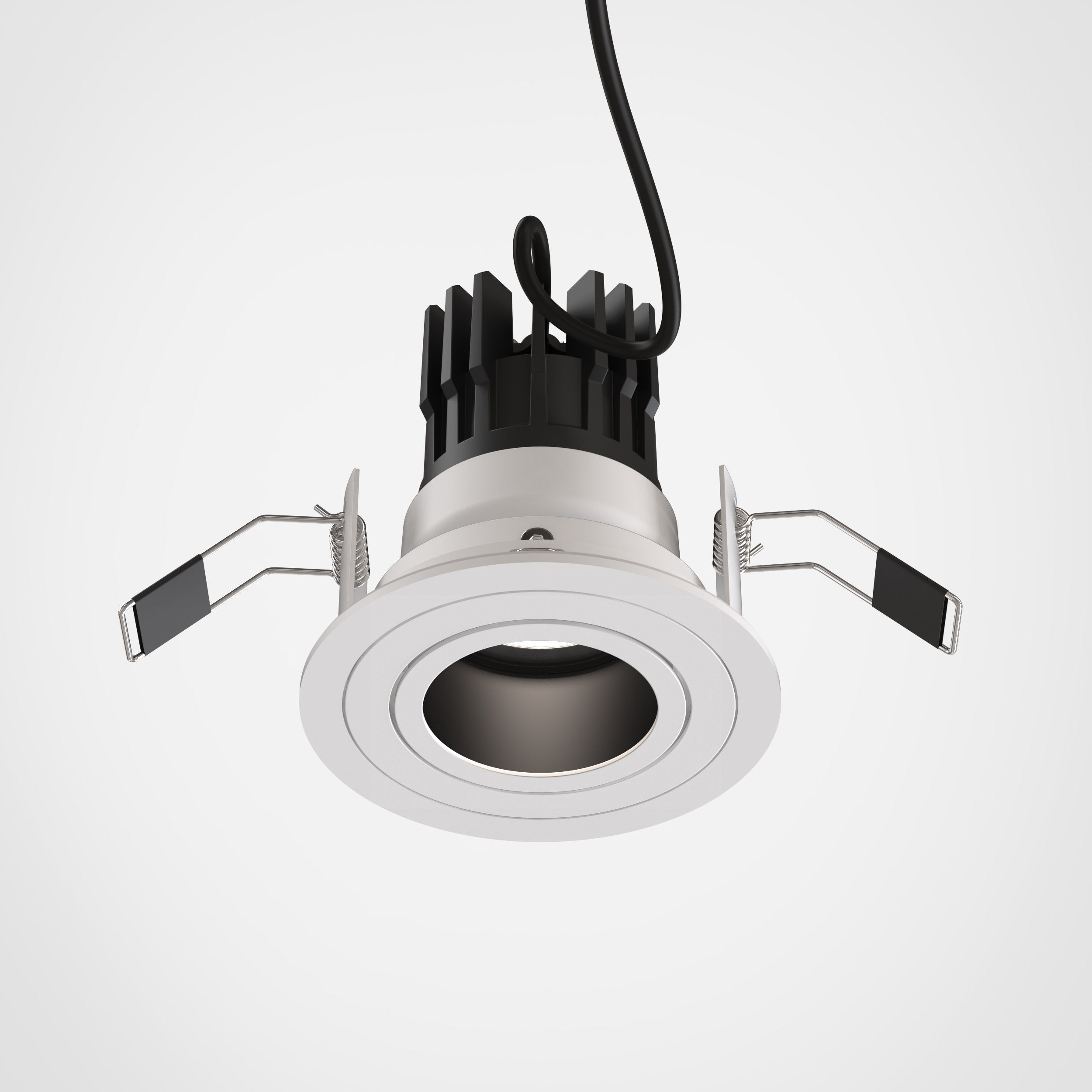

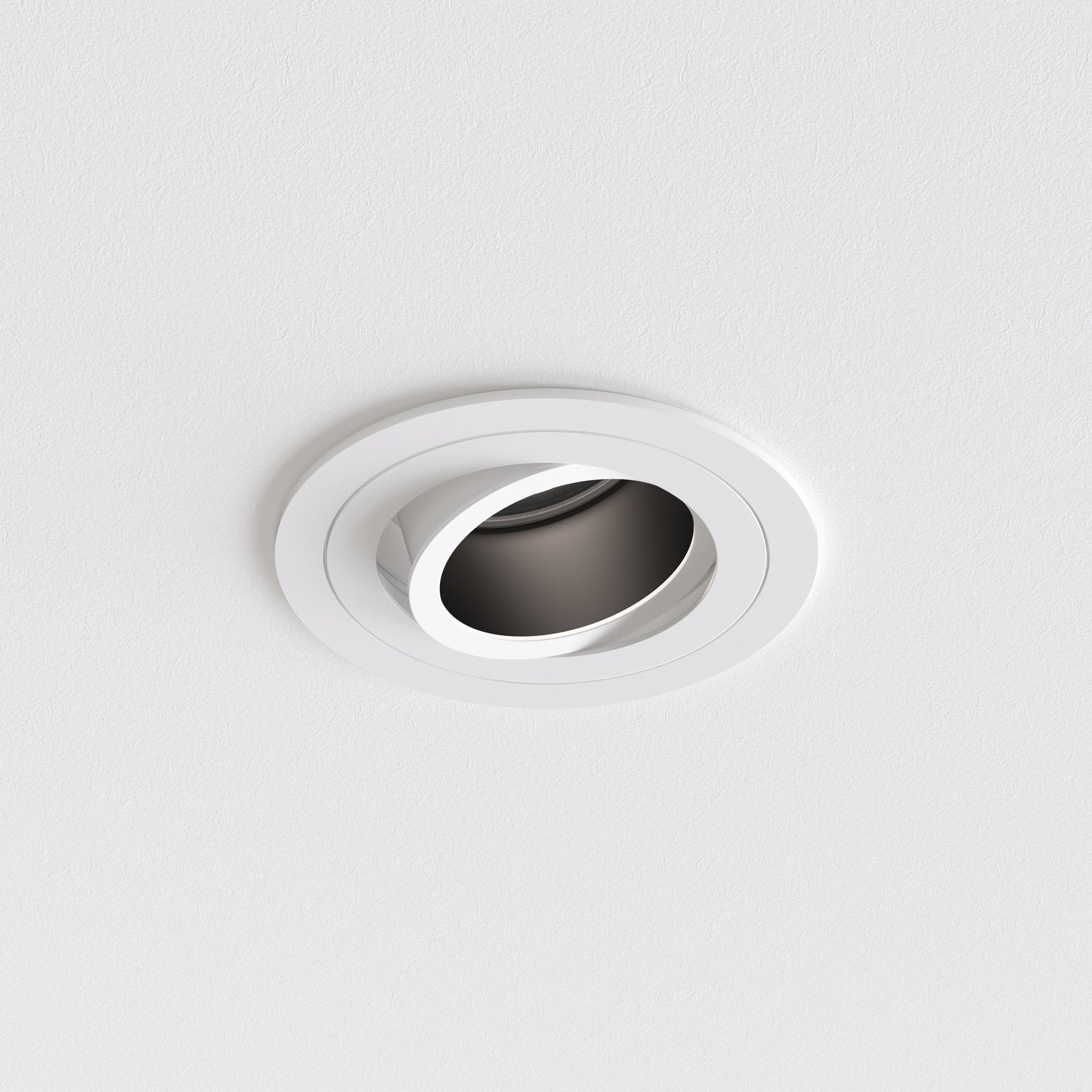

Pinhole PRO Round Adjustable Downlight
Usually ships within 10-14 working days
Built To Order Item, we are unable to accept returns unless they are found to be faulty.
Designed with specification flexibility in mind, the Pinhole PRO Round Adjustable can be configured with different LED modules, lenses, filters and drivers, with integrated LED options offering 2700K, CRI 90 performance and phase dimming. It is also fire-rated, providing 30 or 90 minutes of protection in compatible solid joist ceilings and 30 minutes in suitable metal web and I-Joist constructions. With an 83mm round cut-out, adjustable direction and a 150mm recess depth, it combines low-glare performance with practical installation flexibility for professional lighting schemes.

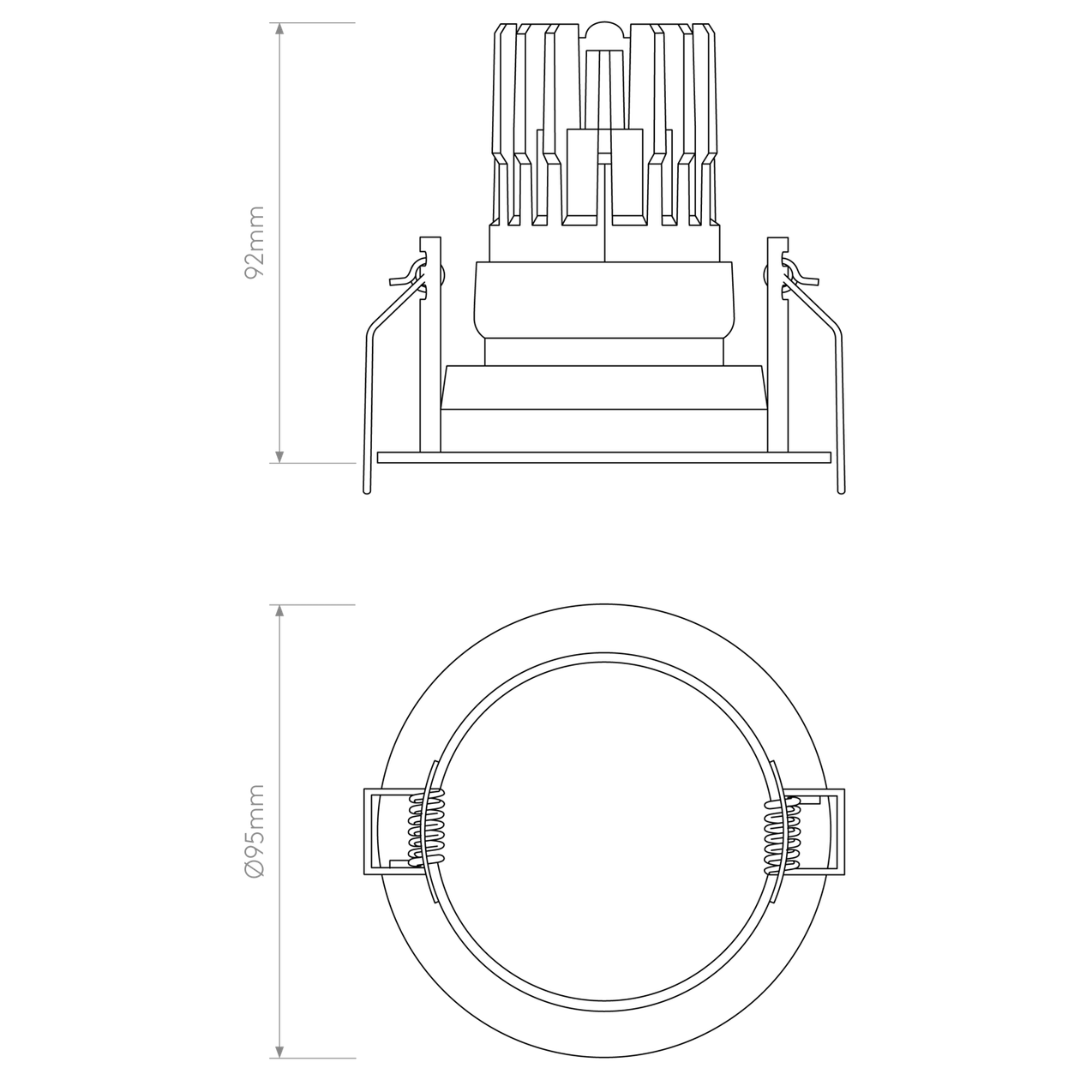

Overall Diameter: 95mm Ø
Depth: 92mm
Cut Out: 86mm Ø
Tilt Angle (°): 25°
Rotation Angle (°): -
Weight: -
Light Source: Integrated LED
Lamp Holder: -
Wattage: 10.3W
Number of Lamps: -
Lumens: 959lm / 996lm / 999lm ( 680lm / 764lm / 779lm)
Kelvin: 2700K / 3000K
CRI: 90+ (95)
Beam Degree: 22° / 31° / 46°
Driver Required: Yes - Remote mounted - Included
Switched: -
Dimmable: Yes
Dimming Type: Phase / DALI
Voltage: 34.5
IP rating: IP20
Fire rated: 30 min & 90 min Solid Joist; 30 min Metal Web / I-Joist EN1365-2
