Pinhole PRO Round Fixed IP65 Downlight
Usually ships within 10-14 working days
Built To Order Item, we are unable to accept returns unless they are found to be faulty.
Designed for demanding specifications, the Pinhole PRO Round Fixed IP65 offers IP65 protection for bathroom Zones 1, 2 and 3, with certified fire protection of 30 or 90 minutes in compatible solid joist ceilings and 30 minutes in suitable metal web and I-Joist constructions. It can be configured with narrow, medium or wide beam options, 2700K or 3000K colour temperatures, CRI options from 90+ to 98 typical, and DALI or phase dimming. The fitting uses a 70mm cut-out and is available with linear, honeycomb or diffuser filters, giving architects, interior designers and lighting designers flexibility to tailor the performance to each project.

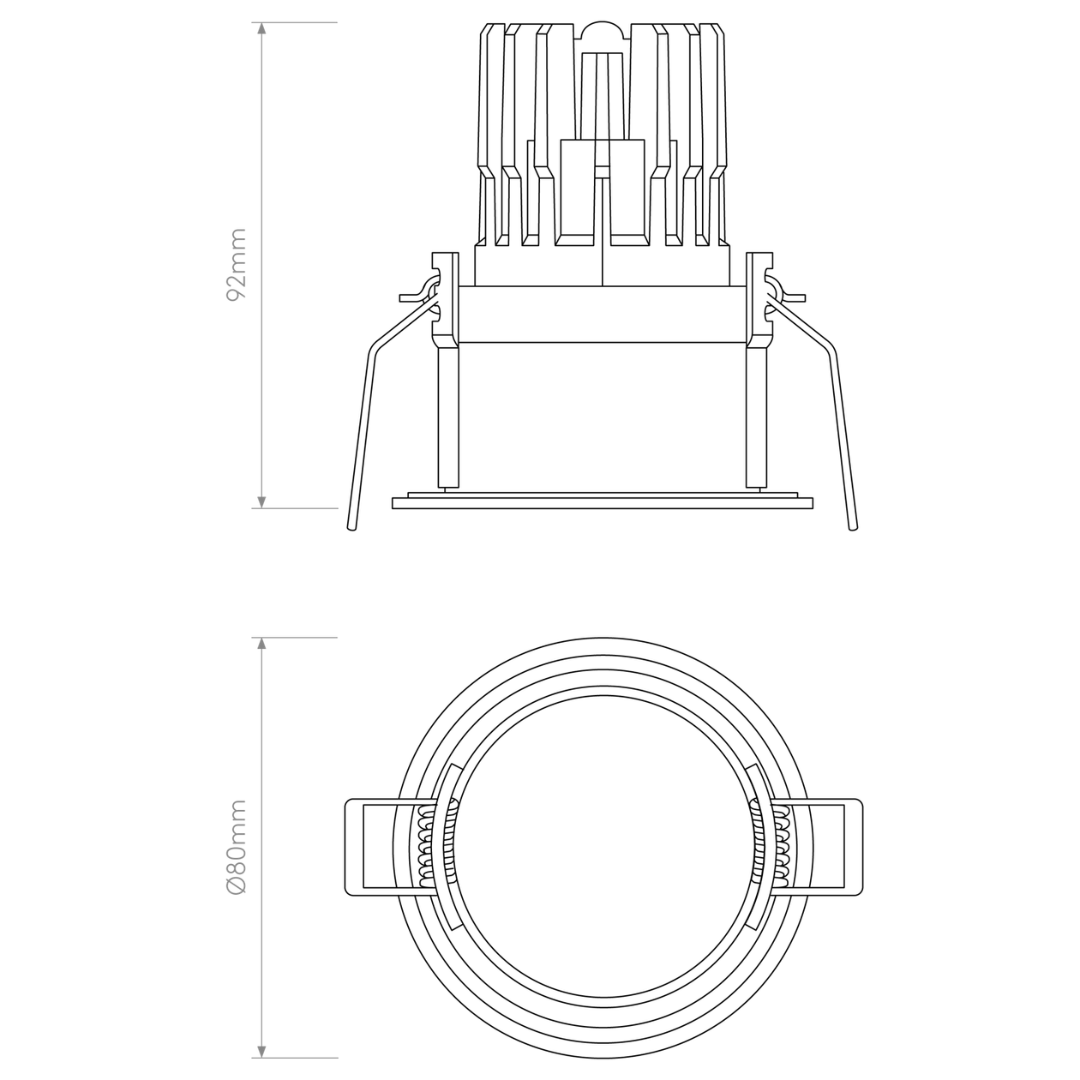

Overall Diameter: 80mm Ø
Depth: 92mm
Cut Out: 70mm Ø
Tilt Angle (°): -
Rotation Angle (°): -
Weight: -
Light Source: Integrated LED
Lamp Holder: -
Wattage: 10.3W
Number of Lamps: -
Lumens: 959lm / 996lm / 999lm ( 680lm / 764lm / 779lm)
Kelvin: 2700K / 3000K
CRI: 90+ (95)
Beam Degree: 22° / 31° / 46°
Driver Required: Yes - Remote mounted - Included
Switched: -
Dimmable: Yes
Dimming Type: Phase / DALI
Voltage: 34.5
IP rating: IP65
Fire rated: 30 min & 90 min Solid Joist; 30 min Metal Web / I-Joist EN1365-2
