Pinhole PRO Square Adjustable Downlight
Usually ships within 10-14 working days
Built To Order Item, we are unable to accept returns unless they are found to be faulty.

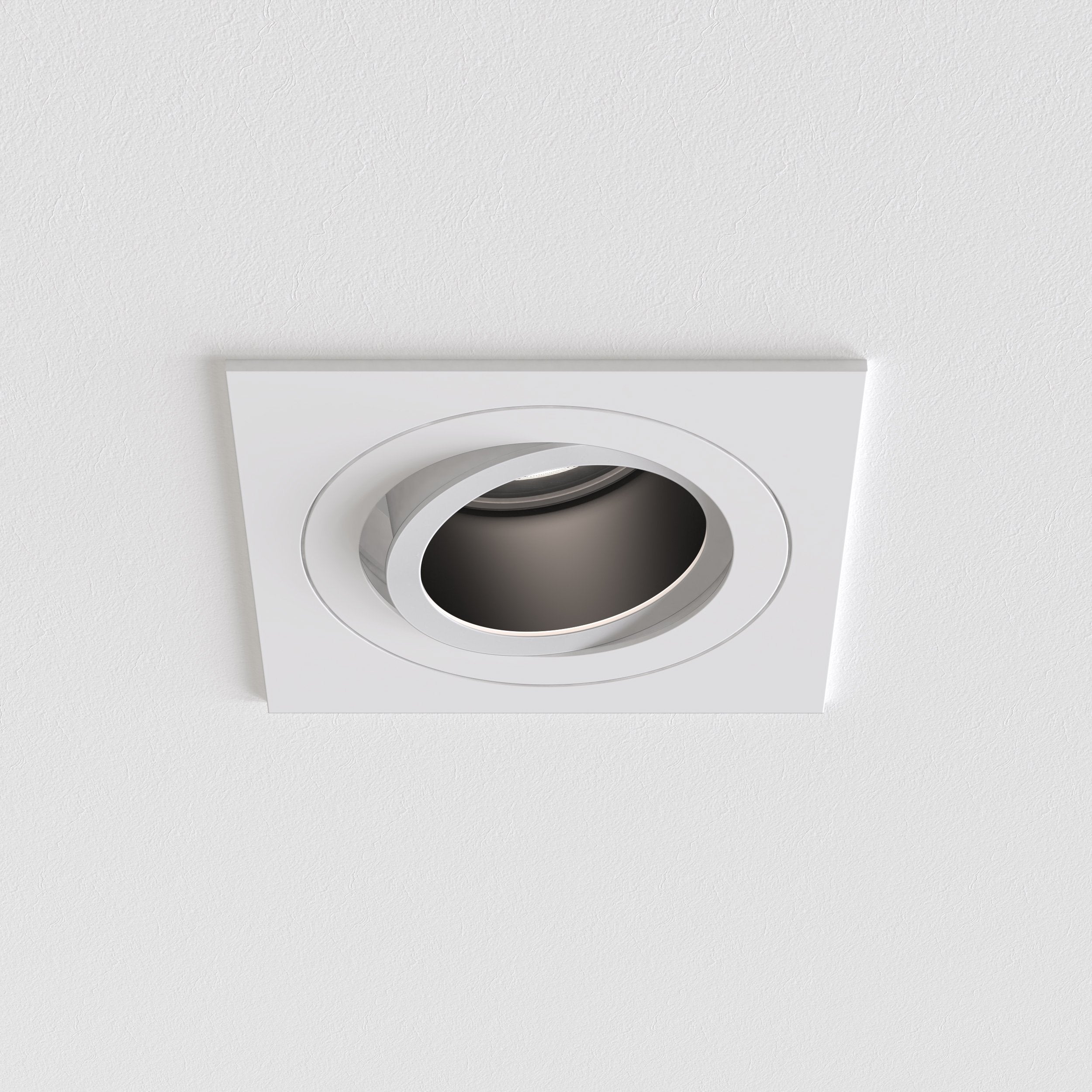

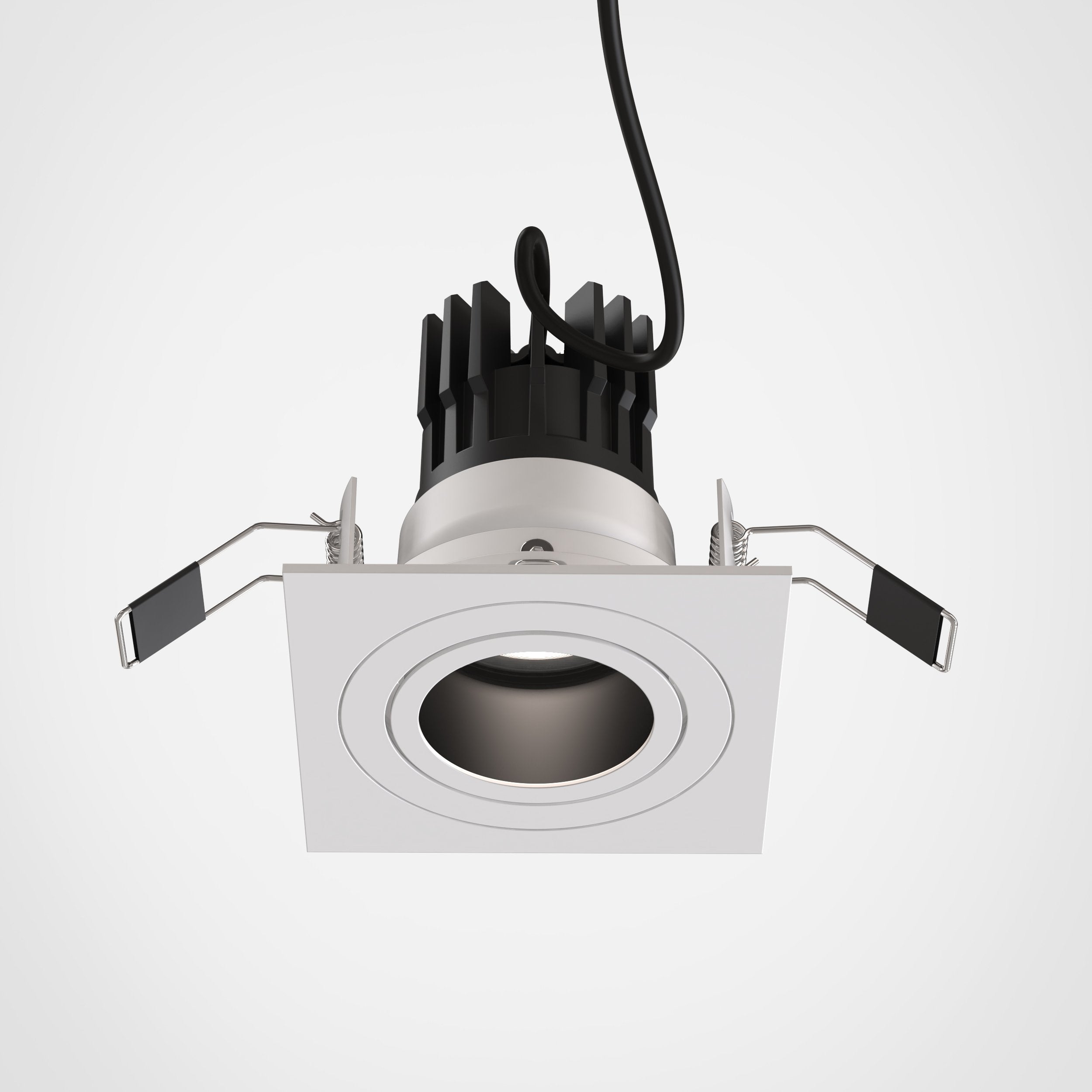

Designed with flexibility in mind, the Pinhole PRO Square Adjustable features an integrated LED configuration with 2700K, CRI 90 performance and phase dimming, with LED module, lens, filter and driver options configurable to suit the project. It is rated IP20 and offers certified fire protection of 30 or 90 minutes in compatible solid joist ceilings and 30 minutes in suitable metal web and I-Joist constructions. The adjustable version also provides up to 25° tilt, making it a versatile choice for considered architectural lighting schemes.

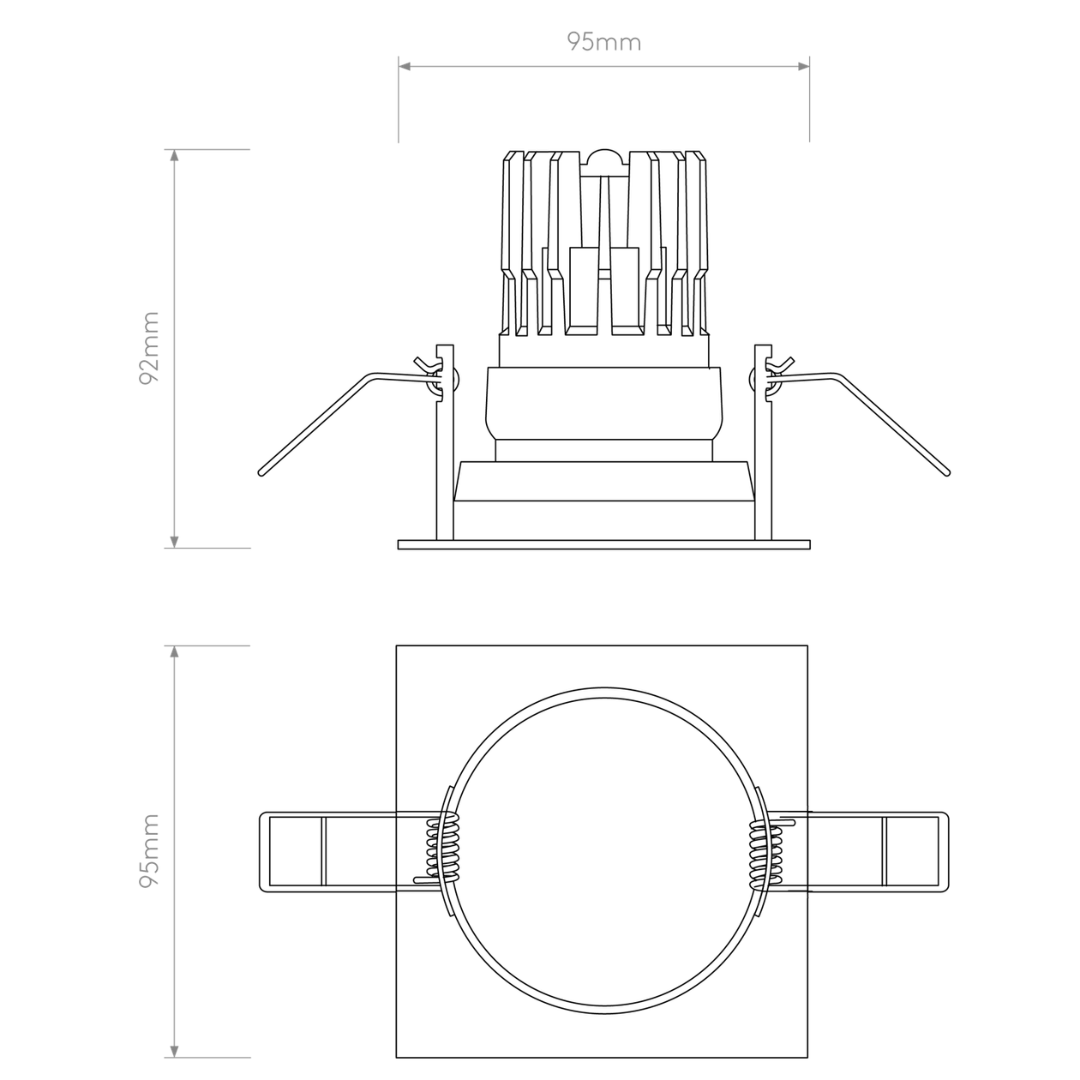

Overall Diameter: 95mm Ø
Depth: 92mm
Cut Out: 86mm Ø
Tilt Angle (°): 25°
Rotation Angle (°): -
Weight: -
Light Source: Integrated LED
Lamp Holder: -
Wattage: 10.3W
Number of Lamps: -
Lumens: 973lm / 1082lm / 1110lm ( 698lm / 766lm / 788lm)
Kelvin: 2700K / 3000K
CRI: 90+ (95)
Beam Degree: 22° / 31° / 46°
Driver Required: Yes - Remote mounted - Included
Switched: -
Dimmable: Yes
Dimming Type: Phase / DALI
Voltage: 34.5
IP rating: IP20
Fire rated: 30 min & 90 min Solid Joist; 30 min Metal Web / I-Joist EN1365-2
