Vendor: 100% Light UK

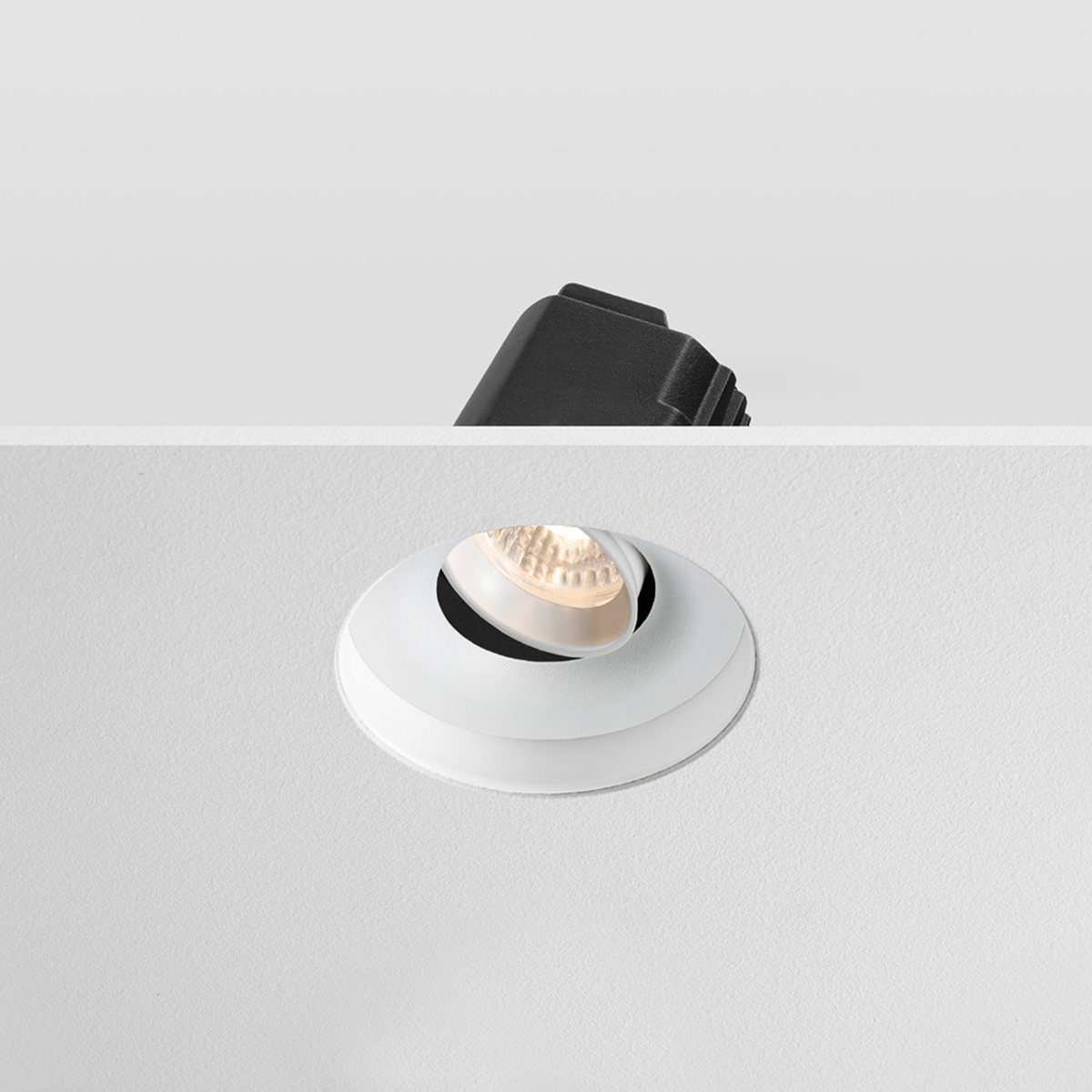

Sphere SH LED Adjustable Trimless Fire Rated Downlight

The Sphere SH LED Adjustable Trimless Fire Rated Downlight by 100% Light UK combines a modern minimalist design with smooth, curved edges and the flexibility of an adjustable light source. Its trimless construction allows the fitting to integrate seamlessly into the ceiling, while the adjustable format provides greater control over the direction of light for highlighting artwork, joinery and architectural features. A choice of power outputs, dimming protocols and Kelvin options, including Dim to Warm, allows the fitting to be tailored to a wide range of lighting schemes. Featuring a high CRI of 95+, the Sphere delivers clean, high-quality light that enhances the appearance of colours, materials and finishes within the space. The fitting requires a 68–70mm cut-out, measures 80mm in diameter, and has a height of 67mm, increasing to 81mm when used with the plaster-in fixture. Its combination of discreet trimless detailing, adjustability and flexible specification makes it ideal for refined residential and architectural interiors.

Usually ships within 2-3 working days

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

The Sphere SH LED Adjustable Trimless Fire Rated Downlight by 100% Light UK combines a modern minimalist design with smooth, curved edges and the flexibility of an adjustable light source. Its trimless construction allows the fitting to integrate seamlessly into the ceiling, while the adjustable format provides greater control over the direction of light for highlighting artwork, joinery and architectural features. A choice of power outputs, dimming protocols and Kelvin options, including Dim to Warm, allows the fitting to be tailored to a wide range of lighting schemes.

Featuring a high CRI of 95+, the Sphere delivers clean, high-quality light that enhances the appearance of colours, materials and finishes within the space. The fitting requires a 68–70mm cut-out, measures 80mm in diameter, and has a height of 67mm, increasing to 81mm when used with the plaster-in fixture. Its combination of discreet trimless detailing, adjustability and flexible specification makes it ideal for refined residential and architectural interiors.

Overall Diameter: 80mm Ø

Overall Depth: 81mm

Cut-out Diameter: 70mm Ø

Recess Depth Required: 81mm

Mounting Method: Recessed - trimless

Tilt Angle: 20°

Rotation Angle: 360°

Material: Metal

Bezel Finish: Black / White

Baffle Finish: Black / White

Light Source: Integrated LED

Lumen Output (delivered, per fitting): 850lm / 1020lm

Efficacy: 95lm/W

Colour Temperature: 2700K / 3000K

Beam Angle: 15° / 24° / 38° / 60°

Circuit Wattage: 10W / 12W

Driver Included: Yes

Driver Location & Access: Remote mounted

Dimmable: Yes

Dimming Protocol: Mains / 0-10V / Dali

IP Rating: IP20

Fire Rating: 30 / 60 / 90 minutes

Fire Hood Required: No

The Sphere SH LED Adjustable Trimless Fire Rated Downlight by 100% Light UK combines a modern minimalist design with smooth, curved edges and the flexibility of an adjustable light source. Its trimless construction allows the fitting to integrate seamlessly into the ceiling, while the adjustable format provides greater control over the direction of light for highlighting artwork, joinery and architectural features. A choice of power outputs, dimming protocols and Kelvin options, including Dim to Warm, allows the fitting to be tailored to a wide range of lighting schemes.

Featuring a high CRI of 95+, the Sphere delivers clean, high-quality light that enhances the appearance of colours, materials and finishes within the space. The fitting requires a 68–70mm cut-out, measures 80mm in diameter, and has a height of 67mm, increasing to 81mm when used with the plaster-in fixture. Its combination of discreet trimless detailing, adjustability and flexible specification makes it ideal for refined residential and architectural interiors.

Overall Diameter: 80mm Ø

Overall Depth: 81mm

Cut-out Diameter: 70mm Ø

Recess Depth Required: 81mm

Mounting Method: Recessed - trimless

Tilt Angle: 20°

Rotation Angle: 360°

Material: Metal

Bezel Finish: Black / White

Baffle Finish: Black / White

Light Source: Integrated LED

Lumen Output (delivered, per fitting): 850lm / 1020lm

Efficacy: 95lm/W

Colour Temperature: 2700K / 3000K

Beam Angle: 15° / 24° / 38° / 60°

Circuit Wattage: 10W / 12W

Driver Included: Yes

Driver Location & Access: Remote mounted

Dimmable: Yes

Dimming Protocol: Mains / 0-10V / Dali

IP Rating: IP20

Fire Rating: 30 / 60 / 90 minutes

Fire Hood Required: No
