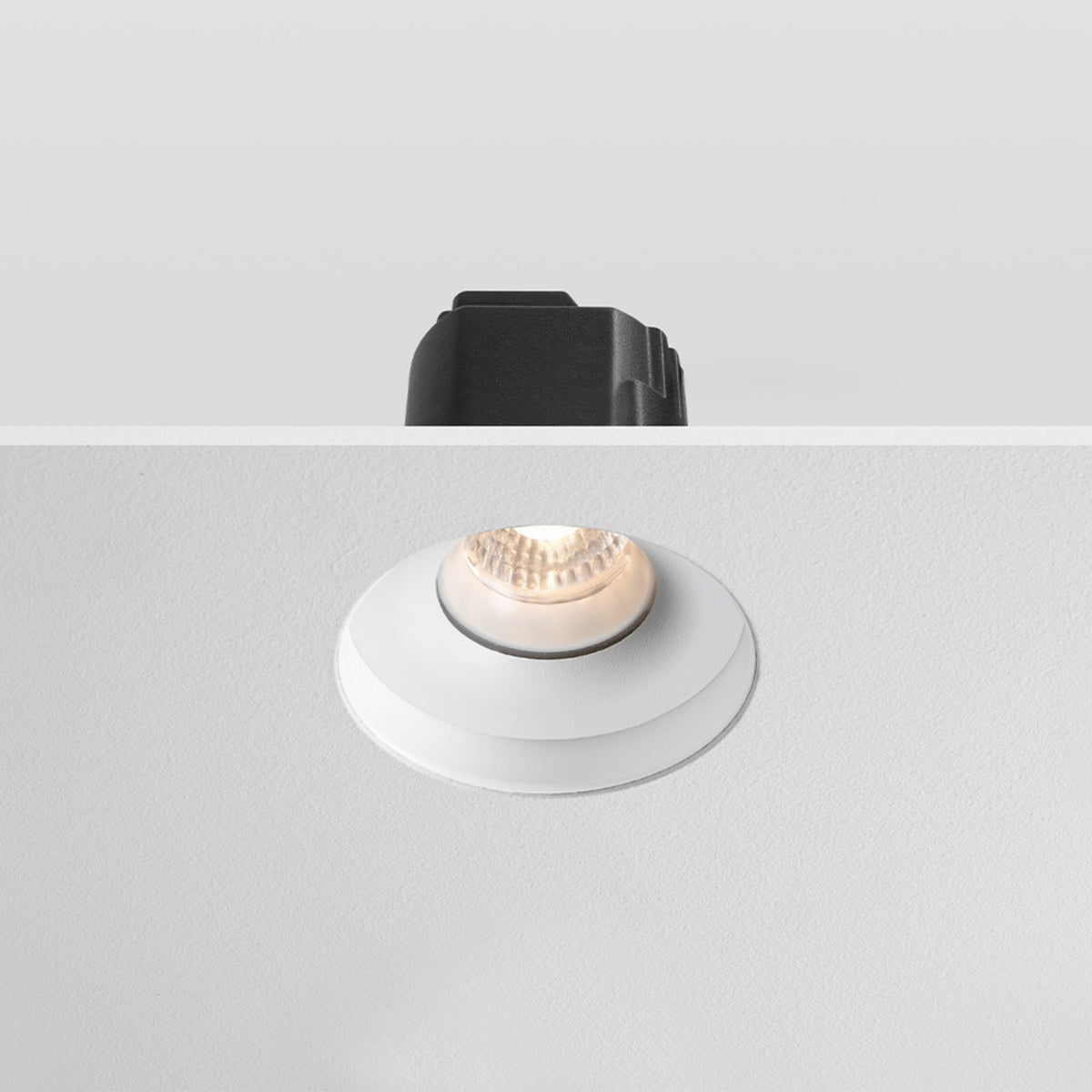

Sphere SH LED Fixed Trimless Fire Rated Downlight

Name: Sphere SH LED Fixed Trimless Fire Rated Downlight
Price: 105.59 GBP

The Sphere SH LED Fixed Trimless Fire Rated Downlight by 100% Light UK combines a modern minimalist design with smooth, curved edges for a clean architectural finish. Its trimless construction allows the fitting to blend seamlessly into the ceiling, while the fire-rated design makes it suitable for considered residential and commercial lighting schemes. A choice of power outputs, dimming protocols and Kelvin options, including Dim to Warm, provides flexibility across a wide range of applications. Featuring a high CRI of 95+, the Sphere delivers clean, high-quality light that enhances the appearance of colours, finishes and objects within the space. The fitting requires a 68–70mm cut-out, measures 80mm in diameter, and has a height of 67mm, increasing to 81mm when used with the plaster-in fixture. Its combination of discreet detailing, flexible specification and excellent colour rendering makes it ideal for refined architectural interiors.

£105.59

Tax included and shipping calculated at checkout

You can't add more Sphere SH LED Fixed Trimless Fire Rated Downlight in Default Title to cart

Usually ships within 2-3 working days

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

General Information

The Sphere SH LED Fixed Trimless Fire Rated Downlight by 100% Light UK combines a modern minimalist design with smooth, curved edges for a clean architectural finish. Its trimless construction allows the fitting to blend seamlessly into the ceiling, while the fire-rated design makes it suitable for considered residential and commercial lighting schemes. A choice of power outputs, dimming protocols and Kelvin options, including Dim to Warm, provides flexibility across a wide range of applications.

Featuring a high CRI of 95+, the Sphere delivers clean, high-quality light that enhances the appearance of colours, finishes and objects within the space. The fitting requires a 68–70mm cut-out, measures 80mm in diameter, and has a height of 67mm, increasing to 81mm when used with the plaster-in fixture. Its combination of discreet detailing, flexible specification and excellent colour rendering makes it ideal for refined architectural interiors.

Overall Diameter: 80mm Ø

Overall Depth: 81mm

Cut-out Diameter: 70mm Ø

Recess Depth Required: 81mm

Mounting Method: Recessed - trimless

Tilt Angle: -

Rotation Angle: -

Material: Metal

Bezel Finish: Black / White

Baffle Finish: Black / White

Light Source: Integrated LED

Lumen Output (delivered, per fitting): 850lm / 1020lm

Efficacy: 95lm/W

Colour Temperature: 2700K / 3000K

Beam Angle: 15° / 24° / 38° / 60°

Circuit Wattage: 10W / 12W

Driver Included: Yes

Driver Location & Access: Remote mounted

Dimmable: Yes

Dimming Protocol: Mains / 0-10V / Dali

IP Rating: IP65

Fire Rating: 30 / 60 / 90 minutes

Fire Hood Required: No

Download Spec Sheet
