Orluna

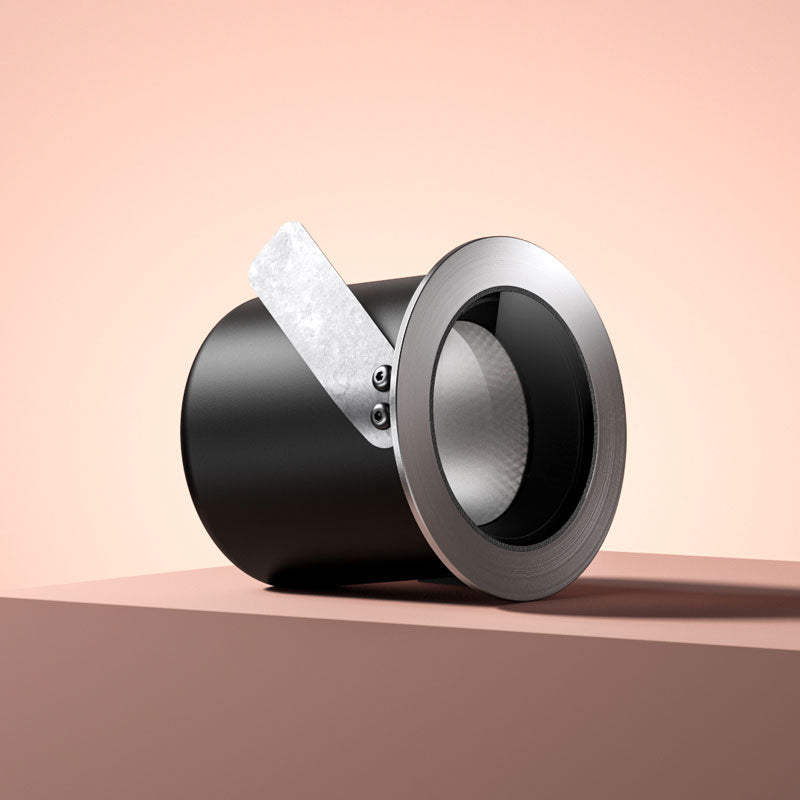

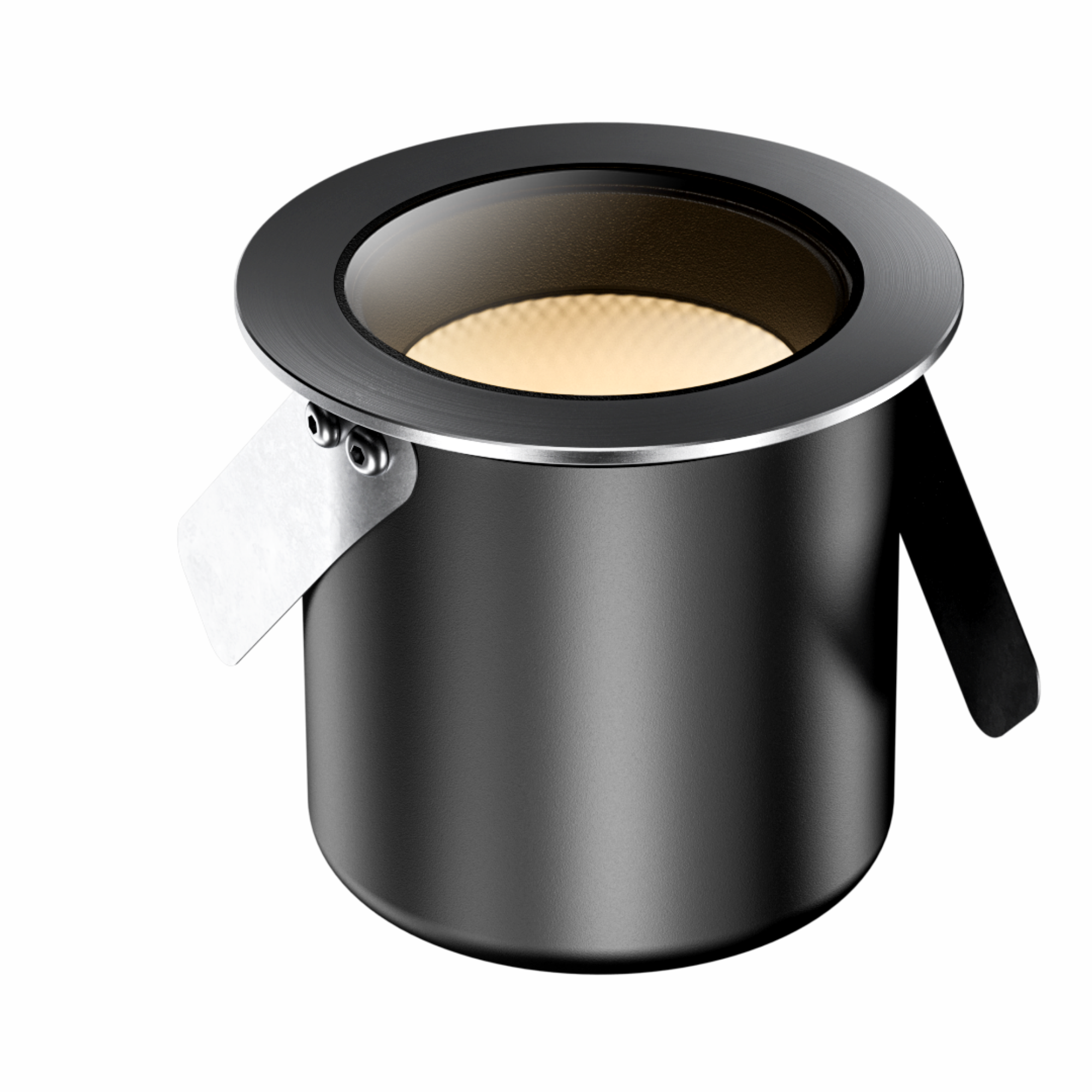

Toto Plus Uplight

Name: Toto Plus Uplight
Price: 201.11 GBP

The Toto Plus Uplight is a high-output architectural uplight designed for powerful, precise illumination across premium interior and exterior schemes. With a larger 80mm bezel and outputs reaching up to approximately 700 lumens, it is well suited to façades, mature planting, columns and larger architectural features where greater punch is required. A wide selection of beam options, including narrow spot and elliptical distributions, allows designers to tailor the lighting effect from concentrated accent illumination to broader wall washing. Available in 316 marine-grade stainless steel alongside a range of architectural finishes, the Toto Plus can be specified with Orluna’s high-quality Origin Natural light engine for excellent colour rendering and consistent light quality across a complete scheme. IP67 versions incorporate a breather gland and triple O-ring construction to help prevent condensation and water ingress, while control options include mains dim, DALI, 0-10V and switched configurations. As part of Orluna’s Beautifully Lit range, Toto Plus can be coordinated with other fittings to maintain consistent colour, beam quality and finish throughout luxury residential, hospitality and landscape projects.

Email For Price

Usually ships within 10-14 working days

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

General Information

The Toto Plus Uplight is a high-output architectural uplight designed for powerful, precise illumination across premium interior and exterior schemes. With a larger 80mm bezel and outputs reaching up to approximately 700 lumens, it is well suited to façades, mature planting, columns and larger architectural features where greater punch is required. A wide selection of beam options, including narrow spot and elliptical distributions, allows designers to tailor the lighting effect from concentrated accent illumination to broader wall washing.

Available in 316 marine-grade stainless steel alongside a range of architectural finishes, the Toto Plus can be specified with Orluna’s high-quality Origin Natural light engine for excellent colour rendering and consistent light quality across a complete scheme. IP67 versions incorporate a breather gland and triple O-ring construction to help prevent condensation and water ingress, while control options include mains dim, DALI, 0-10V and switched configurations. As part of Orluna’s Beautifully Lit range, Toto Plus can be coordinated with other fittings to maintain consistent colour, beam quality and finish throughout luxury residential, hospitality and landscape projects.

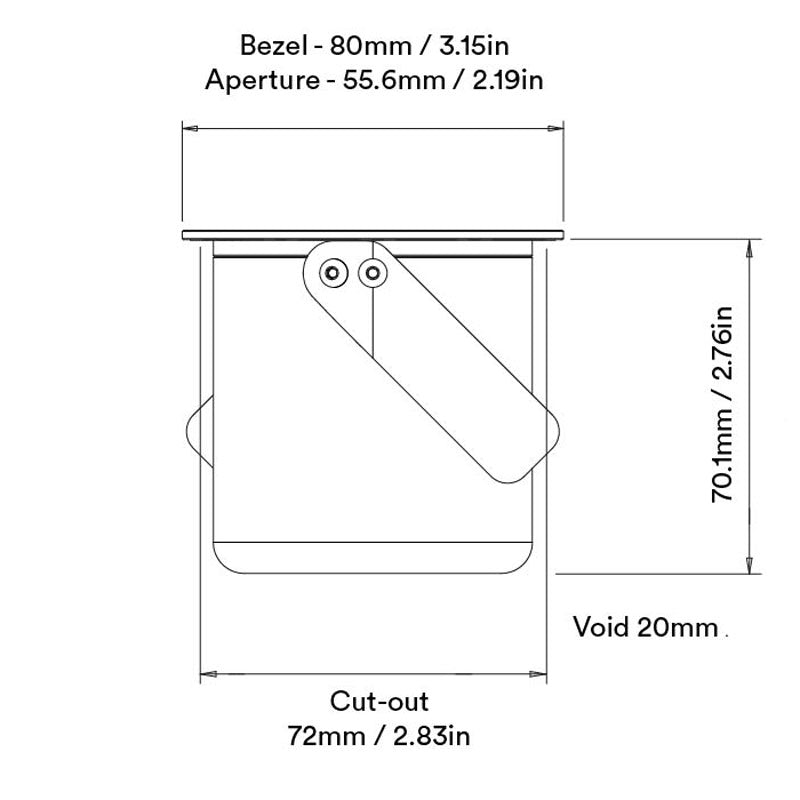

Overall Diameter: 80mm Ø

Overall Depth: 70.1mm

Recess Depth Required: 90mm

Mounting Method: Springs / Installation sleeve

Material: Metal

Cut-out Diameter: 72mm Ø

Bezel Finish: White RAL 9010 / White RAL 9003 / Black RAL 9005 / Other RAL / Dark Bronze / Medium Bronze / Light Bronze / Burnished Brass / Polished Brass / Brushed Chrome / Polished Chrome / Other Metallic / White RAL9016 Anodised / Black Anodised / Bronze Anodised / Burnished Anodised / Stainless Steel

Baffle Finish: Black RAL 9005

Light Source: Integrated LED

Lumen Output (delivered, per fitting): 302lm / 386lm / 684lm / 679lm / 647lm / 691lm

Colour Temperature: 2700K / 3000K

CRI (Ra): 98

Beam Angle: 10° / 14° / 27° / 42° / 49° / 57°

Optic Accessories: Honeycomb / Frosted Lens / Kicker optic

Circuit Wattage: 11.4W

Driver Required: Yes

Driver Included: No

Driver Location & Access: Remote mounted

Dimmable: Yes

Dimming Protocol: Phase / 0-10V / DALI

Forward Voltage (Vf): 34V

Drive Current: 300mA

IP Rating: IP54 / IP67

Download Spec Sheet
