Prado

Trimless Spot Adjustable 2.0 Downlight

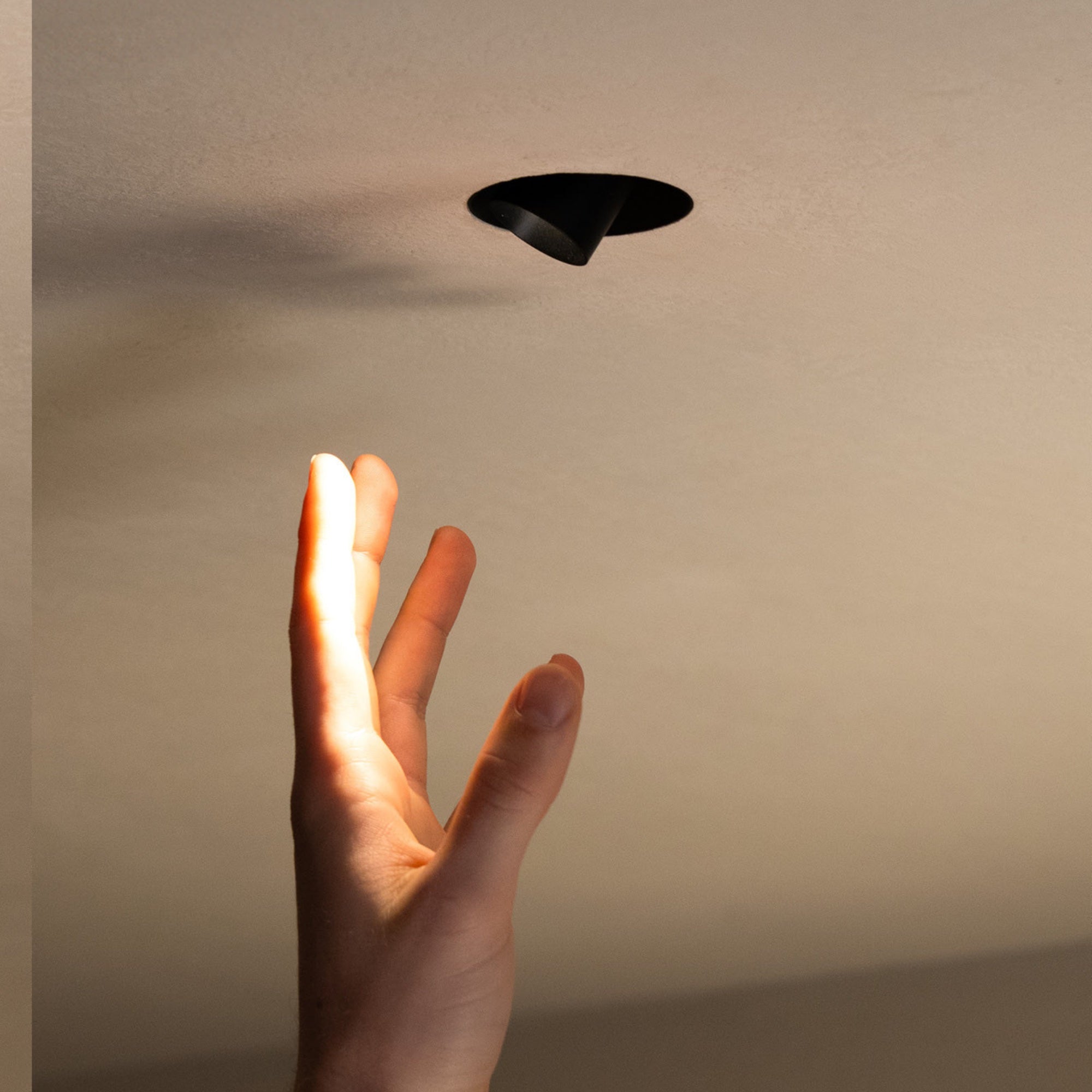

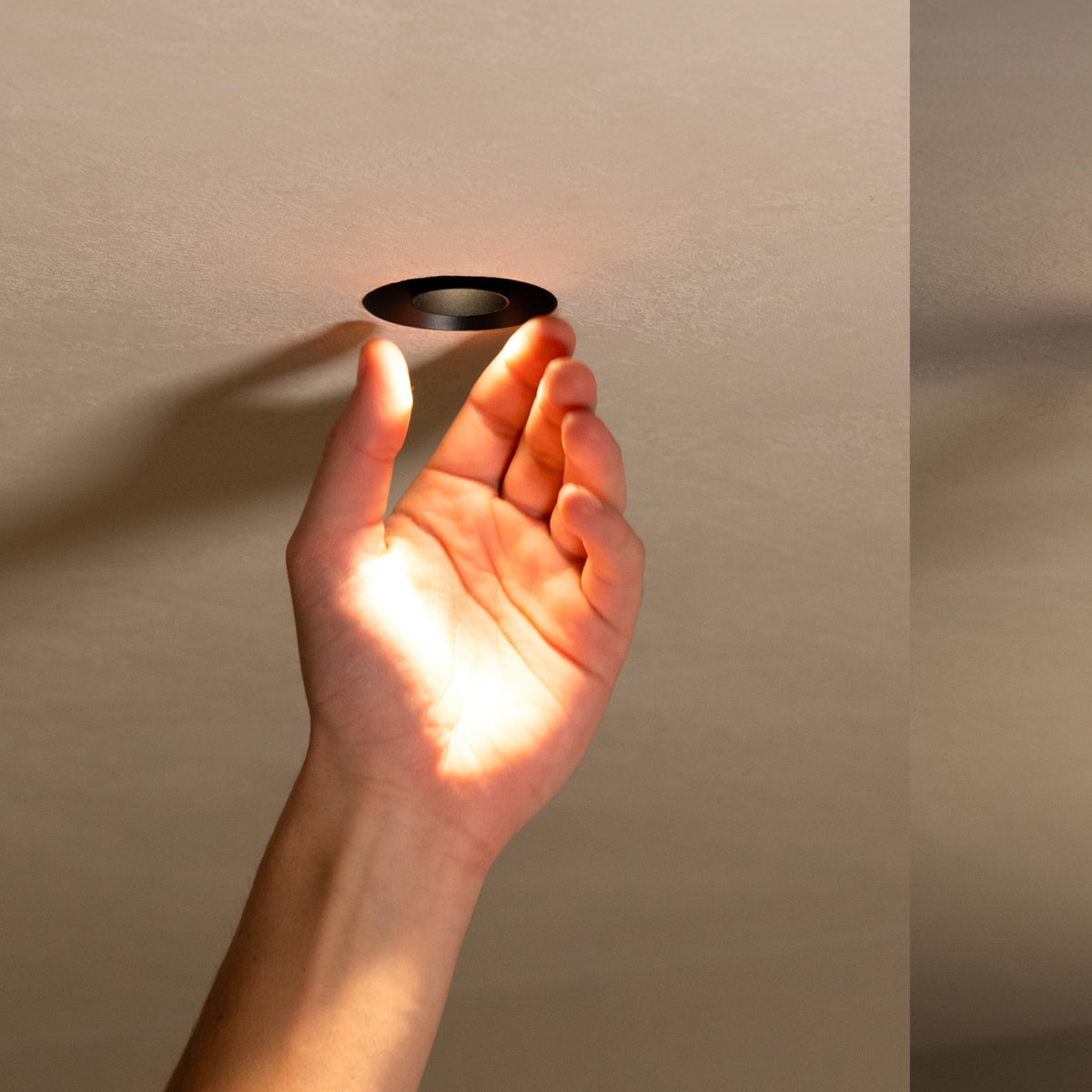

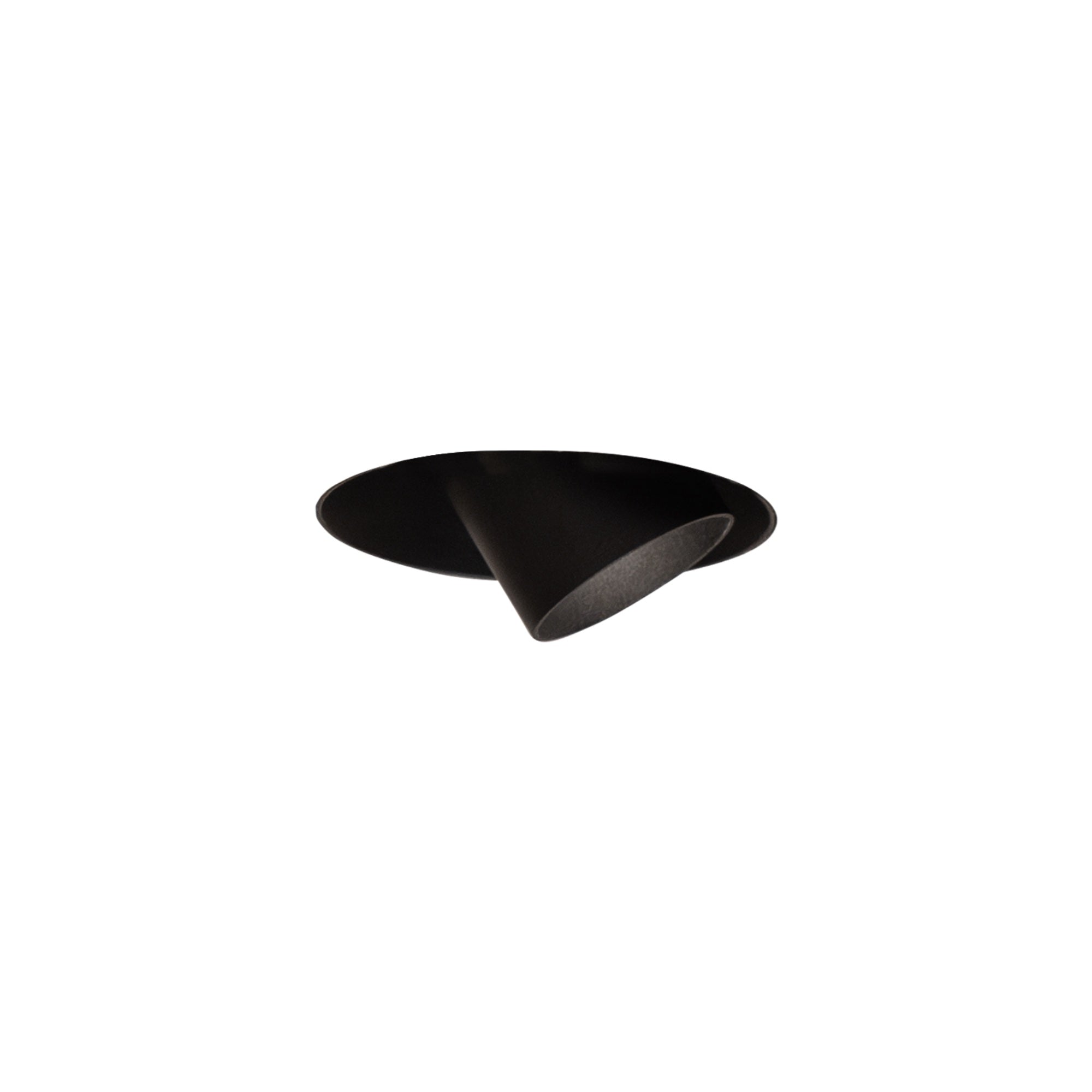

The Trimless Spot Adjustable 2.0 Downlight by Prado is a refined architectural fitting designed to disappear into the ceiling while providing precise, flexible illumination. Developed for Prado’s modular Ø57 system, the fitting tilts up to 40° and delivers up to 775 lumens, allowing it to function as both a discreet downlight and an accent light for artwork and architectural features. Its trimless construction helps create clean, uninterrupted ceilings with minimal visual impact. Available in 2700K or 3000K, the Trimless Spot Adjustable 2.0 offers 20°, 40° and 60° optics with CRI 90+ or CRI 97 options. Aluminium and brass finishes provide flexibility across different interior schemes, while the fitting is IP20 rated and designed for indoor use. The driver is supplied separately, with compatible DALI, 1-10V, Casambi, TRIAC and non-dimmable options available within Prado’s system.

Email For Price

General Information

The Trimless Spot Adjustable 2.0 Downlight by Prado is a refined architectural fitting designed to disappear into the ceiling while providing precise, flexible illumination. Developed for Prado’s modular Ø57 system, the fitting tilts up to 40° and delivers up to 775 lumens, allowing it to function as both a discreet downlight and an accent light for artwork and architectural features. Its trimless construction helps create clean, uninterrupted ceilings with minimal visual impact.

Available in 2700K or 3000K, the Trimless Spot Adjustable 2.0 offers 20°, 40° and 60° optics with CRI 90+ or CRI 97 options. Aluminium and brass finishes provide flexibility across different interior schemes, while the fitting is IP20 rated and designed for indoor use. The driver is supplied separately, with compatible DALI, 1-10V, Casambi, TRIAC and non-dimmable options available within Prado’s system.

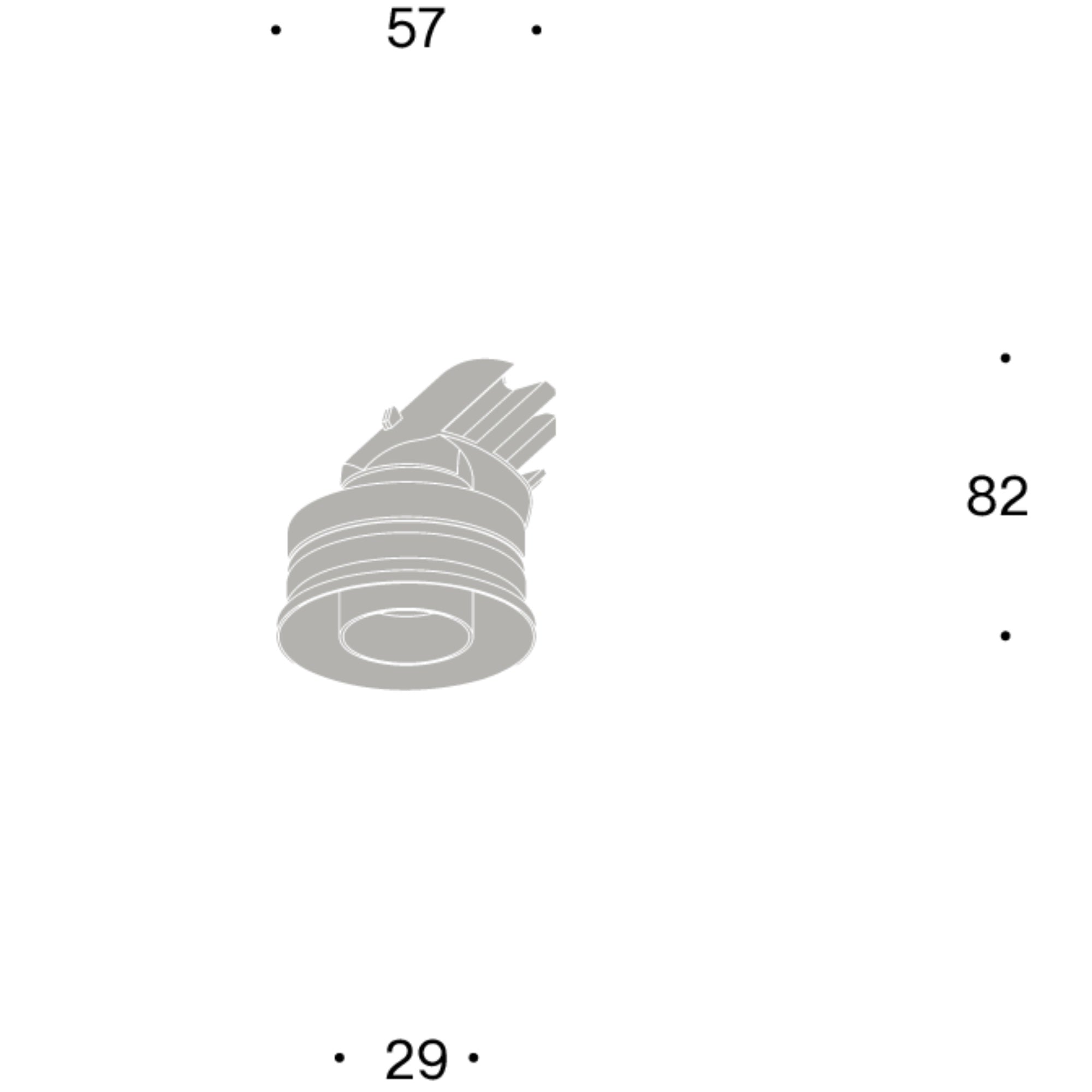

Overall Diameter: 57mm Ø

Overall Depth: 82mm

Cut-out Diameter: 76mm Ø

Recess Depth Required: 90mm

Mounting Method: Plaster-in plate (trimless)

Tilt Angle: 40°

Rotation Angle: 360°

Material: Aluminium / Brass

Bezel Finish: Black / White / Steel / Brushed Grey / Brushed Bronze / Brushed Nickel / Light Bronze / Dark Bronze

Light Source: Integrated LED

Replaceable Light Engine (Zhaga): Yes

Lumen Output (delivered, per fitting): 550lm / 550lm / 500lm / 750lm / 750lm / 675lm

Colour Temperature: 2700K / 3000K

CRI (Ra): 90 / 97

Beam Angle: 20° / 40° / 60°

Circuit Wattage: 6.4W / 9.7W

Forward Voltage (Vf): 18.3V / 19.4V

Drive Current: 350mA / 500mA

Driver Required: Yes

Driver Included: No

Driver Location & Access: Remote mounted

Dimmable: Yes

Dimming Protocol: Mains Dim / DALI / 0-10v

IP Rating: IP20

Fire Rating: With fire hood
