True Midi Adjustable Downlight
Usually ships within 10-14 working days
Built To Order Item, we are unable to accept returns unless they are found to be faulty.

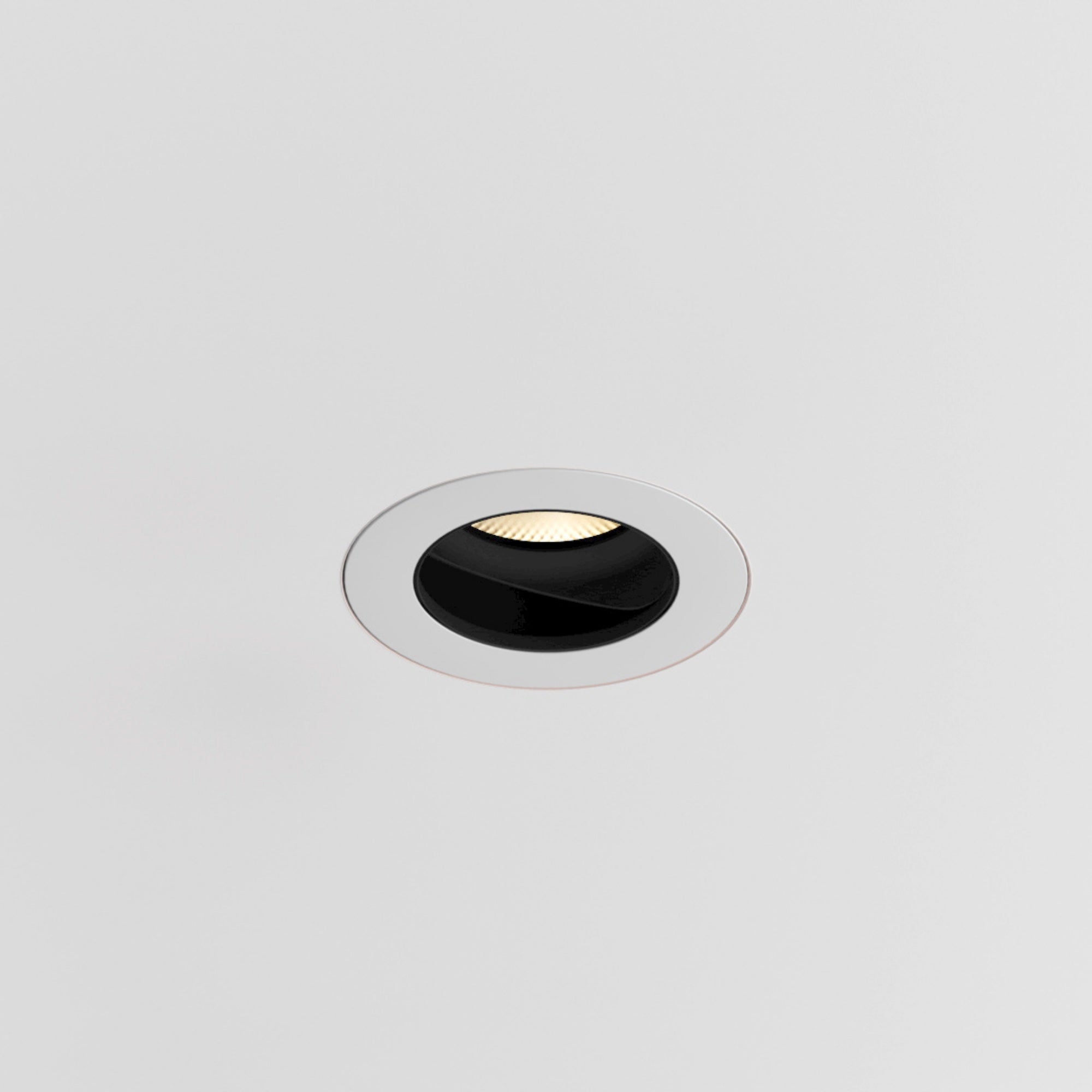

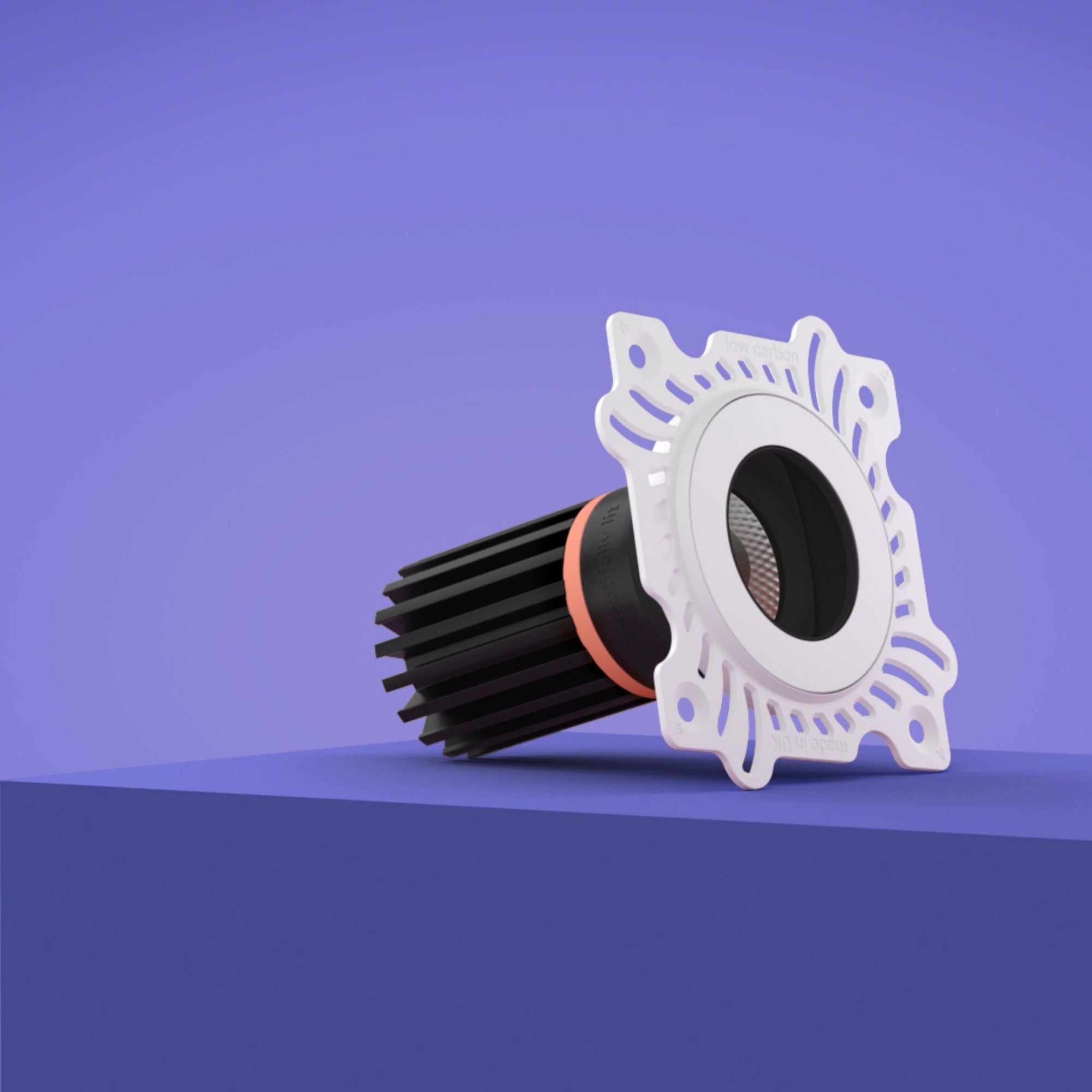

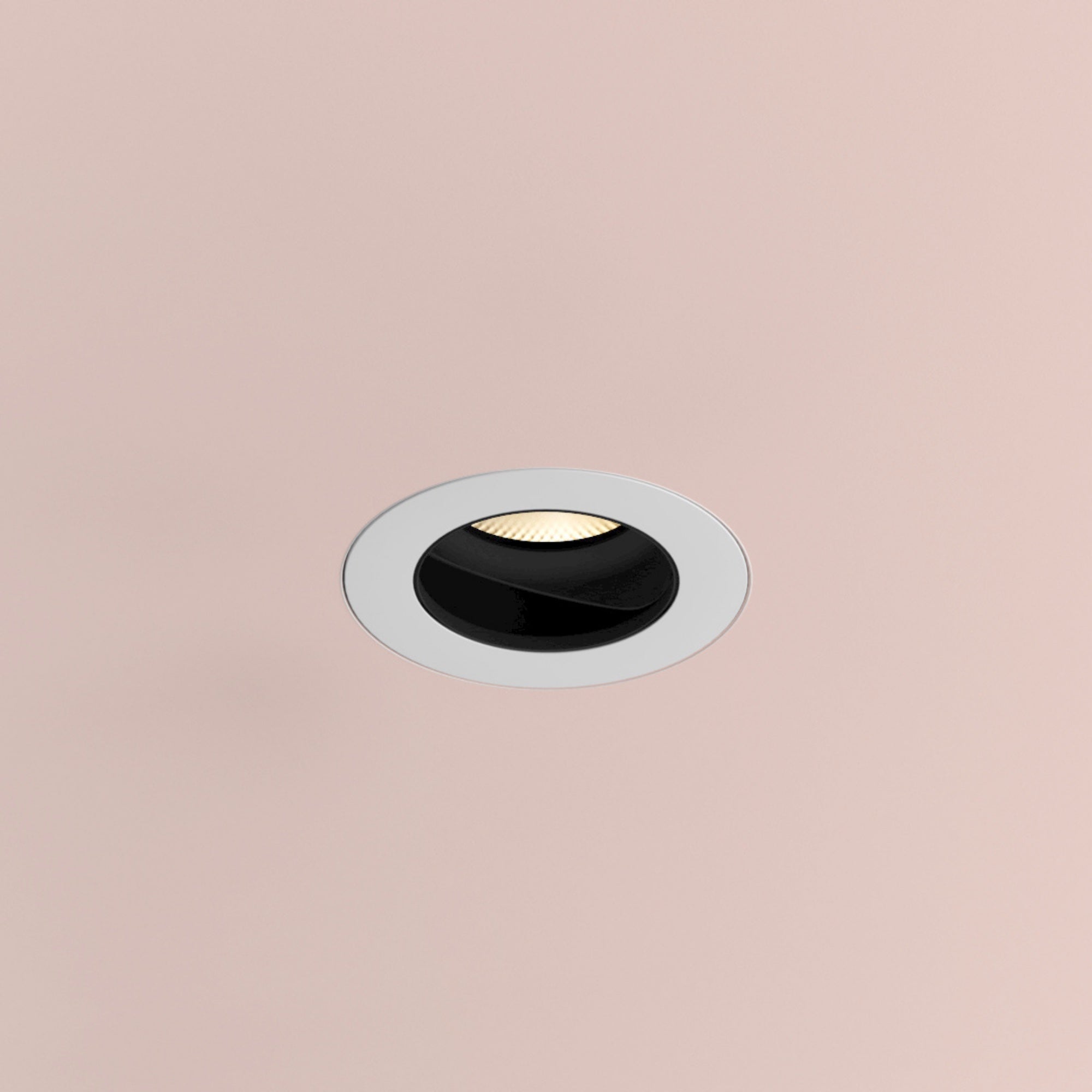

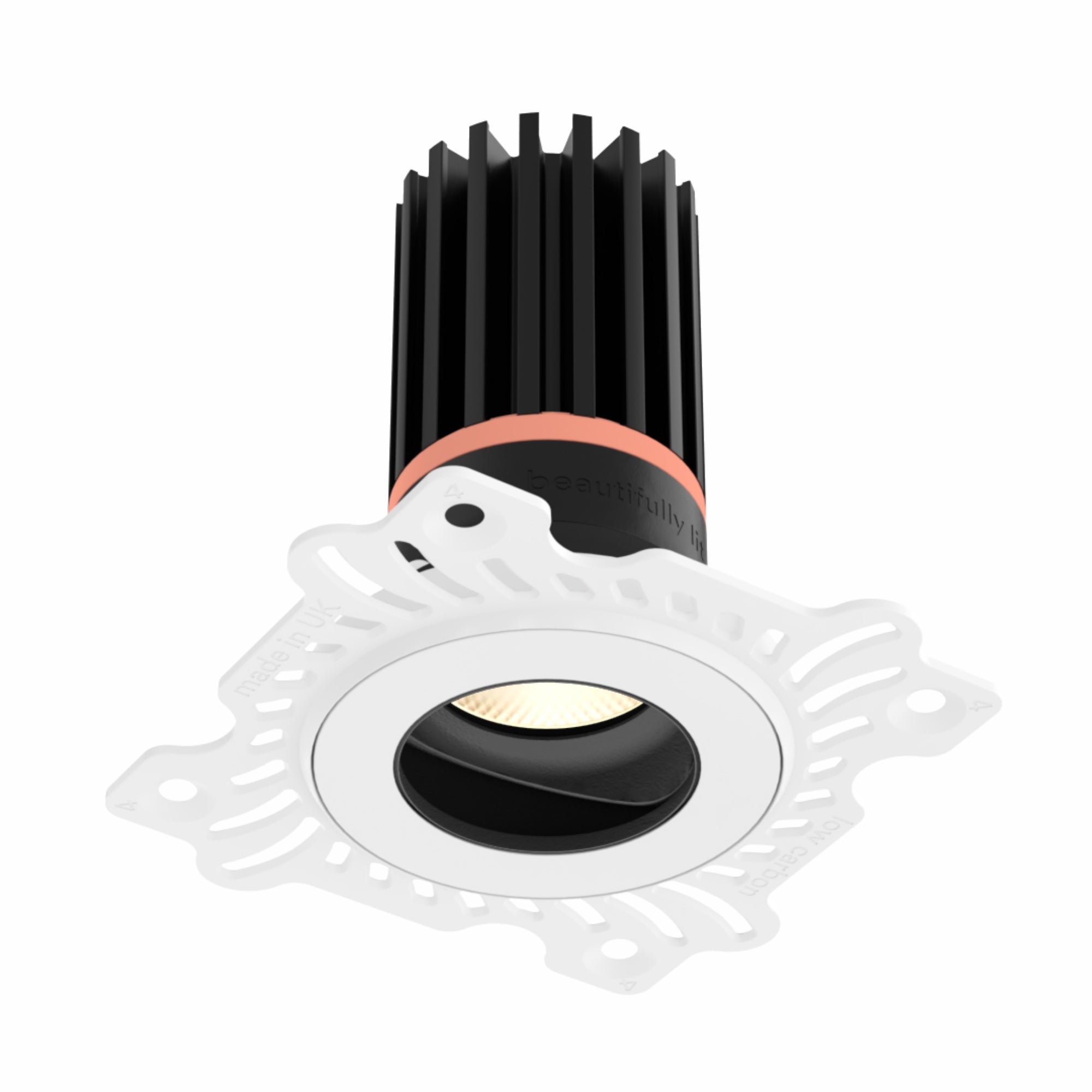

With 28° tilt and 360° rotation, the True Midi Trimless Adjustable Downlight gives designers the flexibility to direct light onto artwork, joinery, furniture, walls or architectural features without compromising the ceiling aesthetic. Available with a choice of Orluna engines, beam angles, colour temperatures, dimming options and finishes, it is well suited to high-end residential, hospitality and commercial interiors where discreet detailing and lighting performance are equally important.

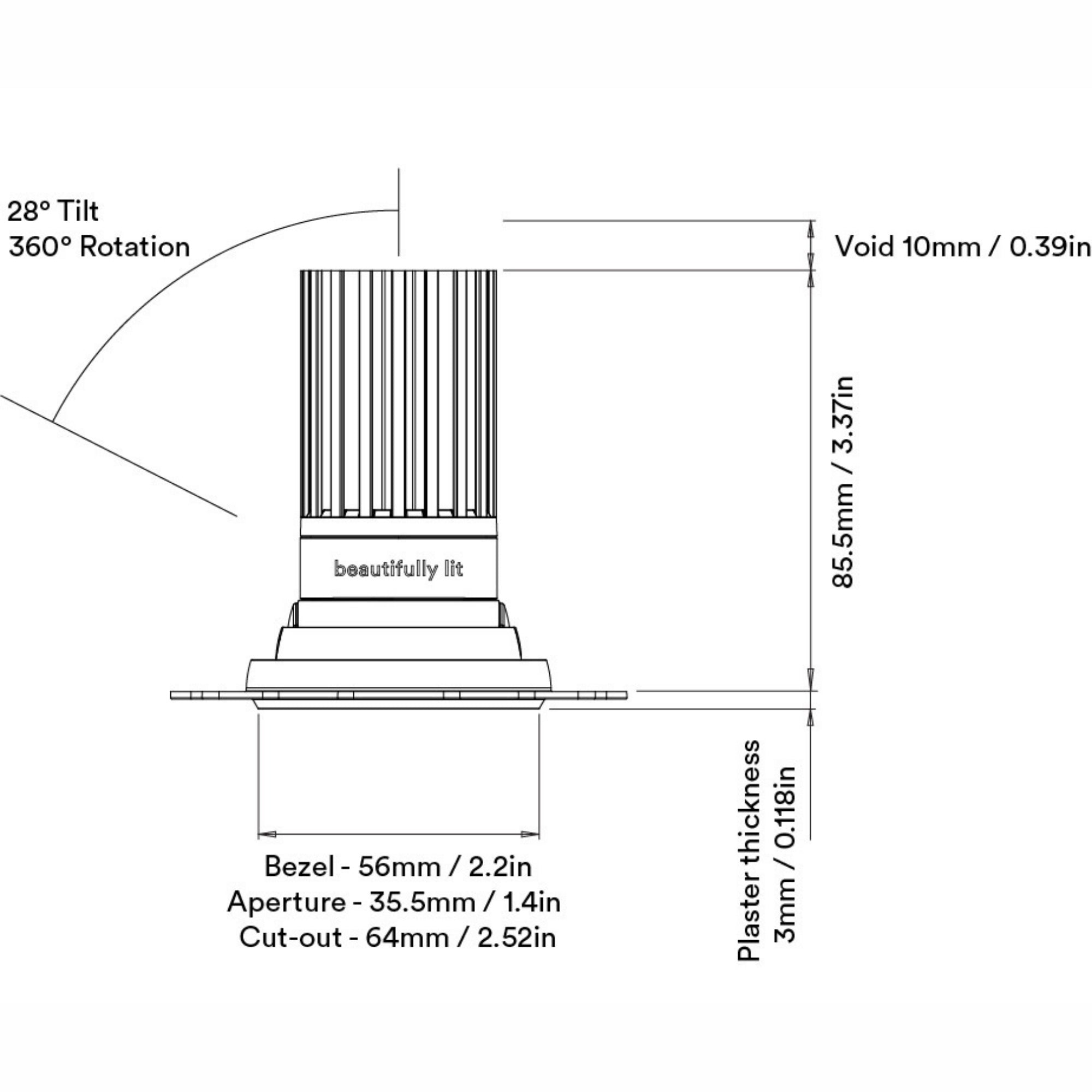

Overall Diameter: 56mm Ø
Overall Depth: 85.5mm
Cut-out Diameter: 64mm Ø
Recess Depth Required: 95.5mm
Mounting Method: Plaster-in plate, trimless
Tilt Angle: 28°
Rotation Angle: 360°
Material: Metal / Plastic
Bezel Finish: White 9010 / White RAL 9003 / Other RAL / Polished Brass / Brushed Chrome / Polished Chrome / Other Metallic / Dark Bronze* / Medium Bronze* / Light Bronze* / Burnished Brass* / Anodised White 9016 / Anodised Black / Anodised Bronze / Anodised Burnished
Baffle Finish: Black 9005 / White RAL 9010 / White RAL 9003 / Other RAL / Polished Brass / Brushed Chrome / Polished Chrome / Other Metallic
Light Source: Integrated LED
Replaceable Light Engine (Zhaga): Yes
Lumen Output (delivered, per fitting): 329lm / 609lm / 669lm / 685lm / 682lm
Colour Temperature: 2700K / 3000K
CRI (Ra): 98
R9: 99
Beam Angle: 12° / 18° / 24° / 37° / 45°
Optic Accessories: Honeycomb Louvre / Frosted Lens / Spreader Lens
Circuit Wattage: 9.7W
Forward Voltage (Vf): 34.6V
Drive Current: 250mA
Driver Required: Yes
Driver Included: No
Driver Location & Access: Remote mounted - Local to fixture
Dimmable: Yes
Dimming Protocol: Mains Dim / DALI / 0-10v
IP Rating: IP54 / IP65
Fire Rating: Yes
Fire Hood Required: On request
Emergency Version Available: Yes
