Orluna

True Mini Adjustable Downlight

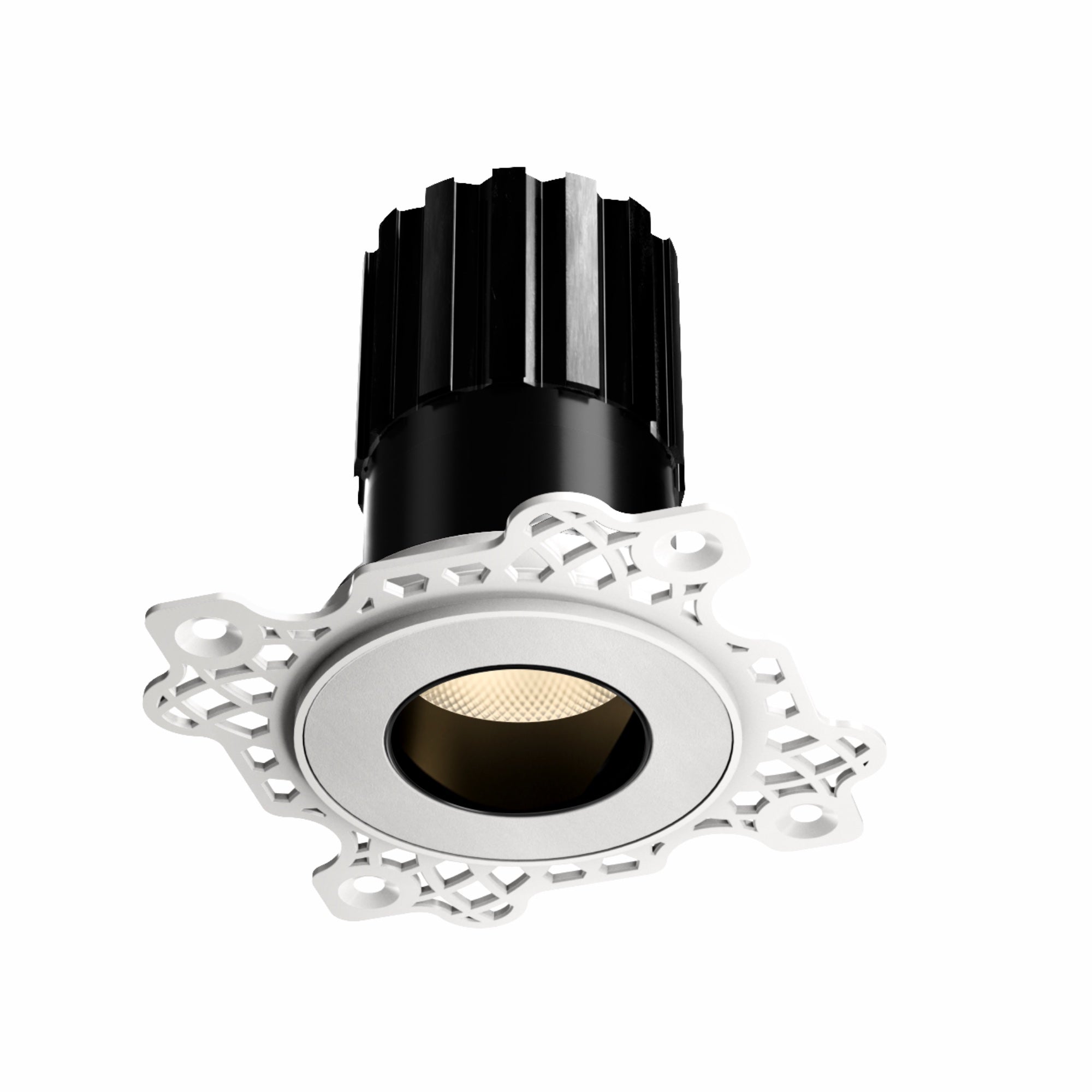

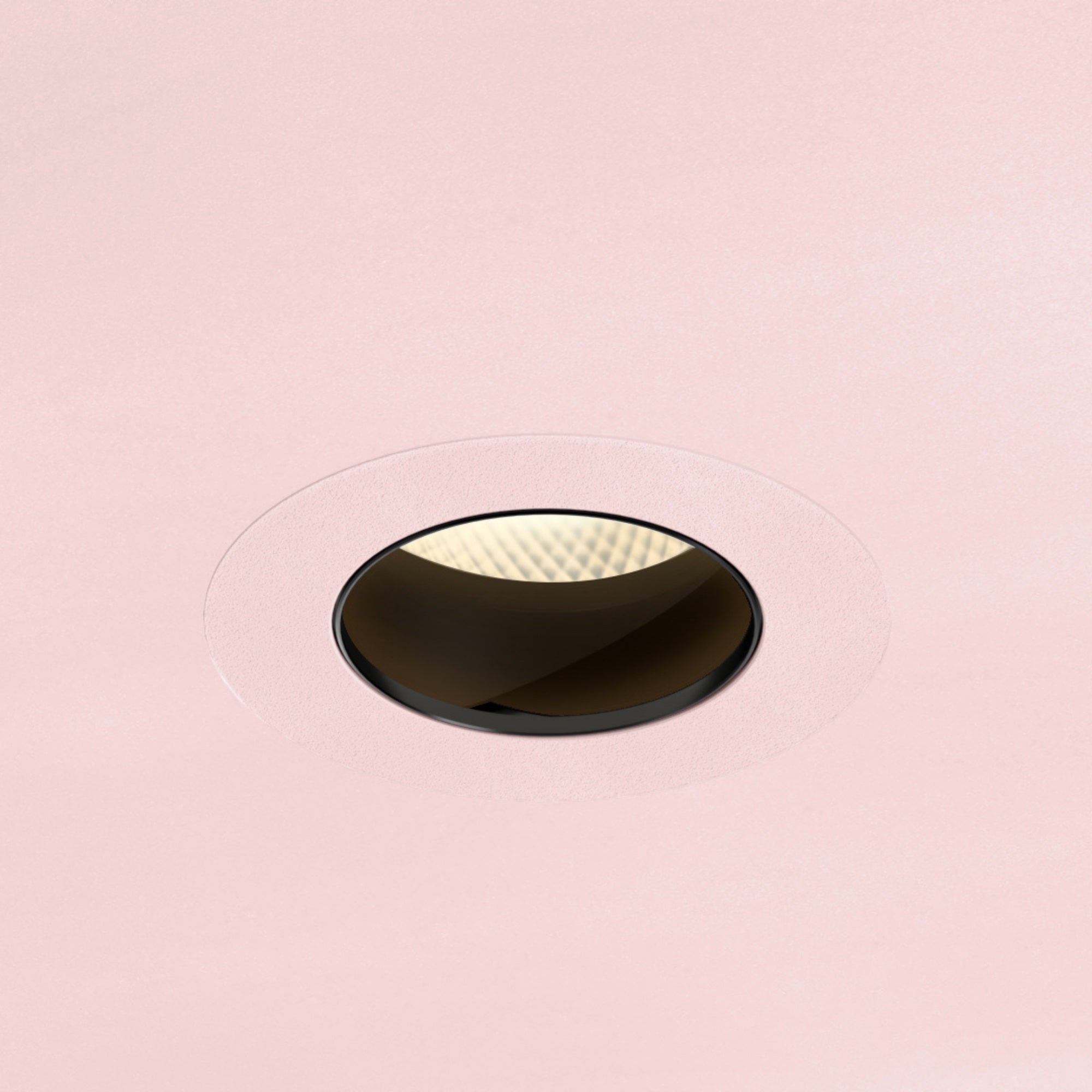

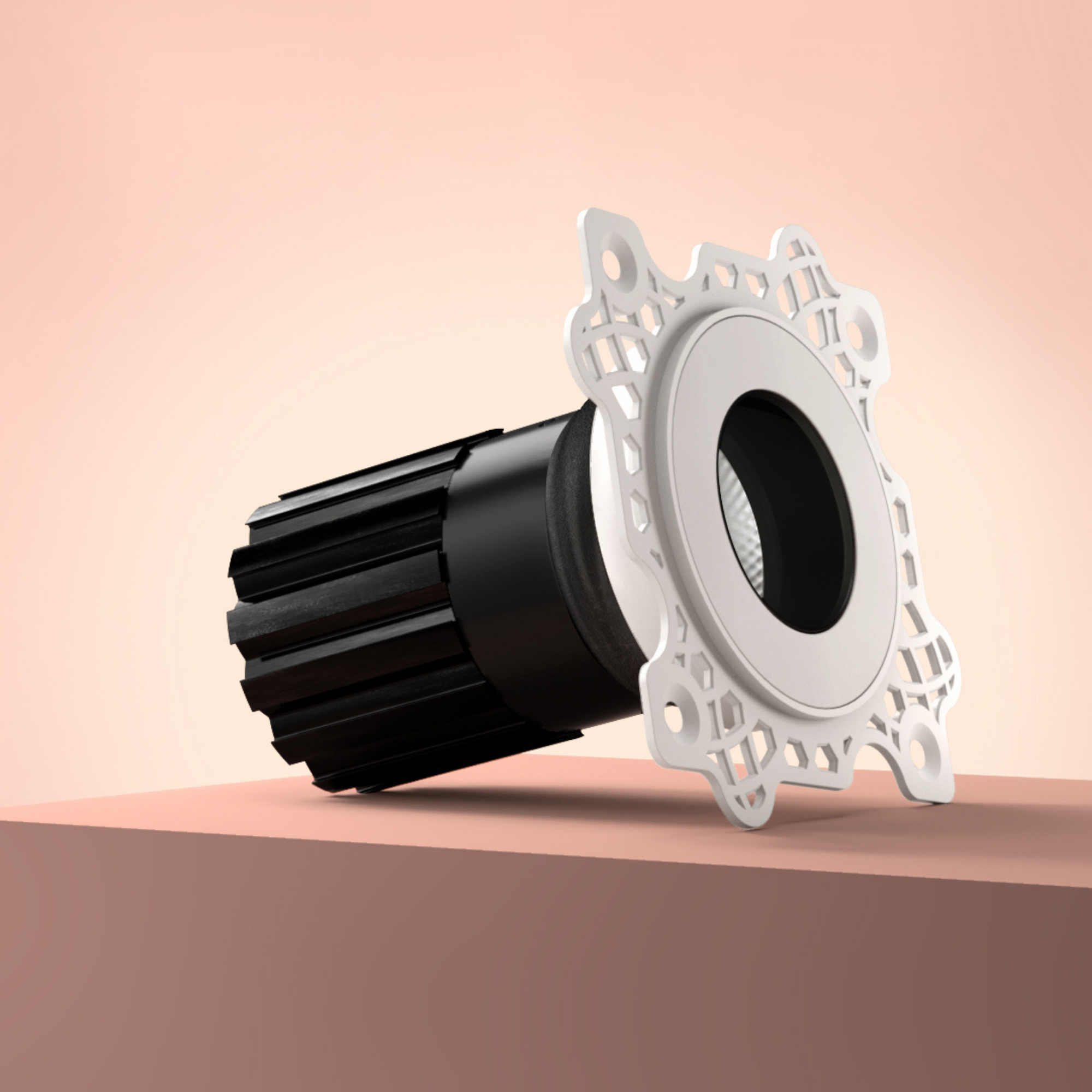

Name: True Mini Adjustable Downlight
Price: 142.49 GBP

The True Mini Adjustable Downlight is a compact architectural fitting designed to deliver precise directional light from a discreet ceiling aperture. Producing approximately 300 lumens, it forms part of Orluna’s smallest high-performance adjustable downlight family and is particularly suited to luxury residential interiors where visual impact needs to be kept to a minimum. A 55mm cut-out and 28° tilt allow the fitting to remain subtle within the ceiling while providing useful control for artwork, joinery and architectural details. Available with Orluna’s Origin Natural light engine, the True Mini delivers excellent CRI 98 colour rendering with 2700K, 3000K and 4000K options. Beam choices include spot, medium, wide, wash and elliptical distributions, while IP54 and IP65 versions, multiple finishes, optical accessories and mains dim, DALI, 0-10V or non-dimmable drivers provide extensive specification flexibility.

£142.49

Tax included and shipping calculated at checkout

You can't add more True Mini Adjustable Downlight in Default Title to cart

Usually ships within 10-14 working days

Built To Order Item, we are unable to accept returns unless they are found to be faulty.

General Information

The True Mini Adjustable Downlight is a compact architectural fitting designed to deliver precise directional light from a discreet ceiling aperture. Producing approximately 300 lumens, it forms part of Orluna’s smallest high-performance adjustable downlight family and is particularly suited to luxury residential interiors where visual impact needs to be kept to a minimum. A 55mm cut-out and 28° tilt allow the fitting to remain subtle within the ceiling while providing useful control for artwork, joinery and architectural details.

Available with Orluna’s Origin Natural light engine, the True Mini delivers excellent CRI 98 colour rendering with 2700K, 3000K and 4000K options. Beam choices include spot, medium, wide, wash and elliptical distributions, while IP54 and IP65 versions, multiple finishes, optical accessories and mains dim, DALI, 0-10V or non-dimmable drivers provide extensive specification flexibility.

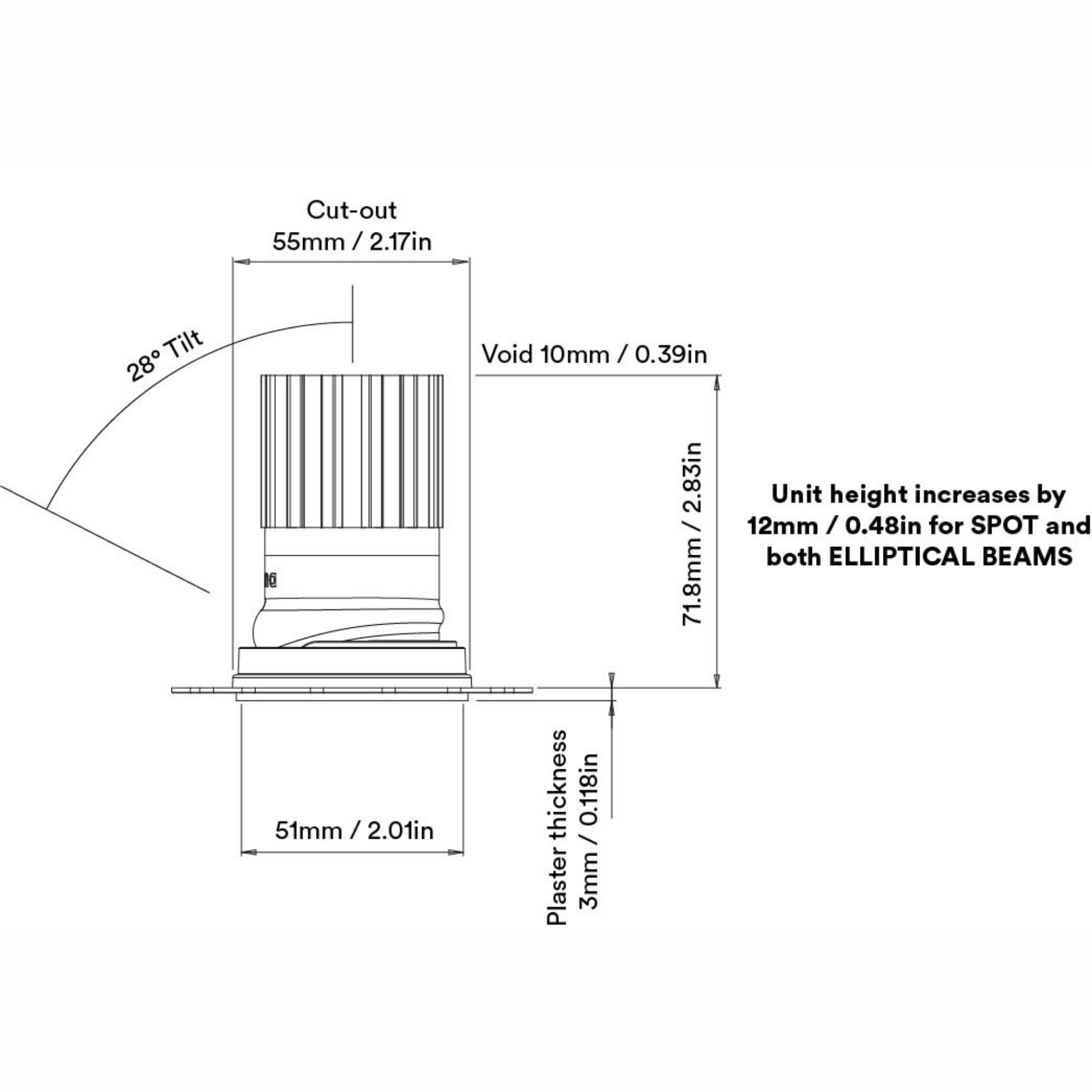

Overall Diameter: 51mm Ø

Overall Depth: 71.8mm

Cut-out Diameter: 55mm Ø

Recess Depth Required: 81.8mm

Mounting Method: Plaster-in plate, trimless

Tilt Angle: 28°

Rotation Angle: 360°

Material: Metal / Plastic

Bezel Finish: White 9010 / White RAL 9003 / Other RAL / Polished Brass / Brushed Chrome / Polished Chrome / Other Metallic / Dark Bronze* / Medium Bronze* / Light Bronze* / Burnished Brass* / Anodised White 9016 / Anodised Black / Anodised Bronze / Anodised Burnished

Baffle Finish: Black 9005 / White RAL 9010 / White RAL 9003 / Other RAL / Polished Brass / Brushed Chrome / Polished Chrome / Other Metallic

Light Source: Integrated LED

Replaceable Light Engine (Zhaga): Yes

Lumen Output (delivered, per fitting): 151lm / 296lm / 278lm / 242lm / 682lm

Colour Temperature: 2700K / 3000K

CRI (Ra): 98

R9: 99

Beam Angle: 15° / 20° / 30° / 34°

Optic Accessories: Honeycomb Louvre / Frosted Lens / Spreader Lens

Circuit Wattage: 5.8W

Forward Voltage (Vf): 33.4V

Drive Current: 155mA

Driver Required: Yes

Driver Included: No

Driver Location & Access: Remote mounted - Local to fixture

Dimmable: Yes

Dimming Protocol: Mains Dim / DALI / 0-10v

IP Rating: IP54 / IP65

Fire Rating: Yes

Fire Hood Required: On request

Download Spec Sheet
